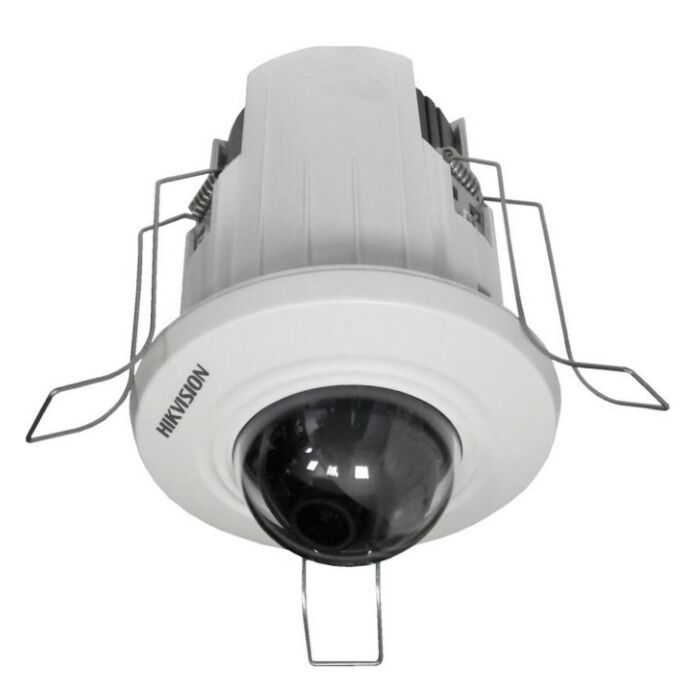

Hikvision DS-2CD2E20F 2MP Recessed Mount Dome | 4mm

Availability: In Stock

Hikvision DS-2CD2E20F-4

Make an Offer

If you would prefer to negotiate a lower price for this item with us, please enter your offer below. We'll then connect you to our Live Chat team who will review your offer as quickly as possible.

Quick Overview

The DS-2CD2E20F is a compact recessed dome camera for through ceiling mounting from Hikvision that can record at 2MP resolution. The design is allows for discreet and aesthetically pleasing surveillance commonly required in small work spaces.

This camera uses features such as wide dynamic range and digital noise reduction technology to provide an excellent image in all light intensities.

The DS-2CD2E20F is easy to install and requires no tools as the arms adjust to fit almost any space. Users will be able to monitor the camera remotely with Hik-Connect smart phone app. This camera can be powered by 12v DC power supply but we recommended powering with PoE for ease of installation.

User ManualHikvision Product CatalogueHikvision Quick Guide

Product Datasheets

Hikvision DS-2CD2E20F 2MP Recessed Mount Dome | 4mm Datasheet (0.68MB)


For information on Lux Levels please look here.

Find use-IP on Youtube   Find out more at the use-IP forum   Find the correct firmware for your camera

Key Features

- 1920 x 1080 resolution
- 2MP
- 2.8mm or 4mm lens
- Tool free installation
- On board storage up to 128GB
- 3D digital noise reduction technology
- Digital wide dynamic range
- Dual-streams
- Backlight compensation
- Remote viewing

DS-2CD2E20F dimensions

Focal Length Diagram

For help on figuring out which focal length is best for you please see here.

Additional Information

Image chip size 1/3"
Image chip type Progressive Scan CMOS
Image Compression H.264 & Motion JPEG
Indoor / Outdoor Indoors only
Colour / monochrome True Day/Night
POE built-in Yes
POE Class Class 3 (6.49-12.95W)
Max. Resolution 1920 X 1080
Min. low-light lux 0.01
Lens Mount M12 mount
Aspect ratio 16:9
Megapixels 2 MP
Supplied with lens Yes
Max. Images per second 25
ONVIF Compatible Yes
Power Consumption max. 4.8W
Warranty 2 Years
Launch Date Winter 2016
Focal Length 4mm
Resolution 720p
