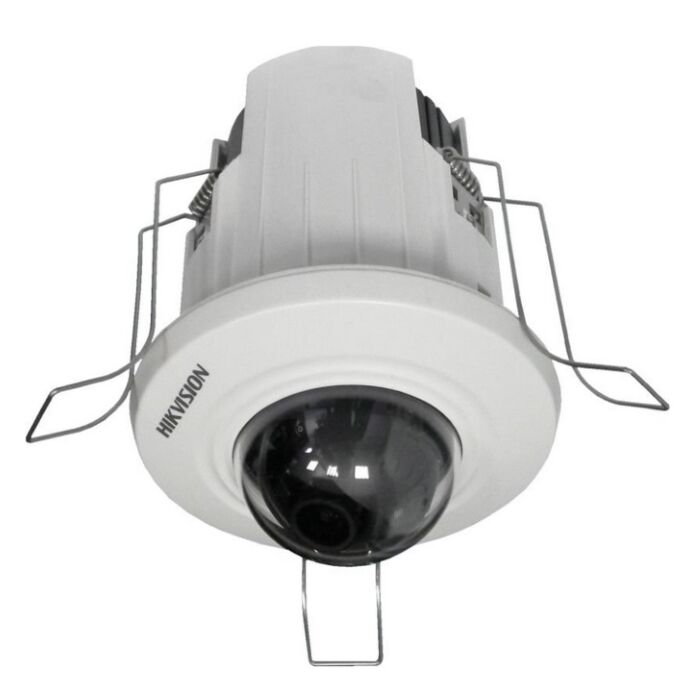

Hikvision DS-2CD2E20F-W 2MP Recessed Mount Wi-Fi Dome 2.8mm
The DS-2CD2E20F-W is a compact recessed dome camera for through ceiling mounting from Hikvision that can record at 2MP resolution. The design is allows for discreet and aesthetically pleasing surveillance commonly required in small work spaces. With built-in WiFi and on-board storage slot making mounting in those hard to reach areas that bit easier.
This camera uses features such as wide dynamic range and digital noise reduction technology to provide an excellent image in all light intensities.
The DS-2CD2E20F-W is easy to install and requires no tools as the arms adjust to fit almost any space. Users will be able to monitor the camera remotely with Hik-Connect smart phone app. This camera can be powered by 12v DC power supply but we recommended powering with PoE for ease of installation.
User ManualHikvision Product CatalogueHikvision Quick Guide
Product Datasheets
Hikvision DS-2CD2E20F-W 2MP Recessed Mount Wi-Fi Dome 2.8mm Datasheet (0.68MB)
- 1920 x 1080 resolution - 2MP - 2.8mm lens - Tool free installation - On board storage up to 128GB - 3D digital noise reduction technology - Digital wide dynamic range - Dual-streams - Built-in Wifi - Backlight compensation - Remote viewing
For help on figuring out which focal length is best for you please see here.
| Image chip size | 1/3" |
|---|---|
| Image chip type | Progressive Scan CMOS |
| Image Compression | H.264 & Motion JPEG |
| Indoor / Outdoor | Indoors only |
| Colour / monochrome | True Day/Night |
| POE built-in | Yes |
| POE Class | Class 3 (6.49-12.95W) |
| Max. Resolution | 1920 X 1080 |
| Min. low-light lux | 0.01 |
| Lens Mount | M12 mount |
| Aspect ratio | 16:9 |
| Megapixels | 2 MP |
| Supplied with lens | Yes |
| Accepts auto-iris lens | No |
| Max. Images per second | 25 |
| PSU included | No |
| ONVIF Compatible | Yes |
| Power Consumption | max. 4.8W |
| Warranty | 2 Years |
| Launch Date | Winter 2016 |
| Focal Length | 2.8mm |
| Resolution | 720p |
