Hikvision DS-2XS6A25G0-I/CH20S40 Solar Panel Kit
SKU: DS-2XS6A25G0-I/CH20S40~EOL
Out of stock
The DS-2XS6A25G0-I/CH20S40 is now End of Life.
Please feel free to browse our Hikvision Solar-Powered Cameras category to find a suitable replacement.
- 40 watt solar panel
- 20 Ah, built-in rechargeable battery
- Up to seven days battery life (in low consumption mode)
- H.265+/H.265/H.264+/ H.264
- 2 MP @ 30fps
- 1920 x 1080 @ 30fps
- 2.8mm lens
- 107° Horizontal FOV
- 30m IR distance
- Built-in 4G (LTE-TDD/LTE-FDD/TD-SCDMA/EVDO) module
- IP67 Rating (Water and Dust resistant)
- Built-in Micro SD slot
Please note that the battery for the Solar Panel Kit needs to be ordered separately. Please visit TYN1220S or see our Frequently Bought Together section below.
Hikvision Solar Panel Kit Quick Start Guide Hikvision Network Camera User Manaul Hikvision Solar Panel Kit Flyer
Details

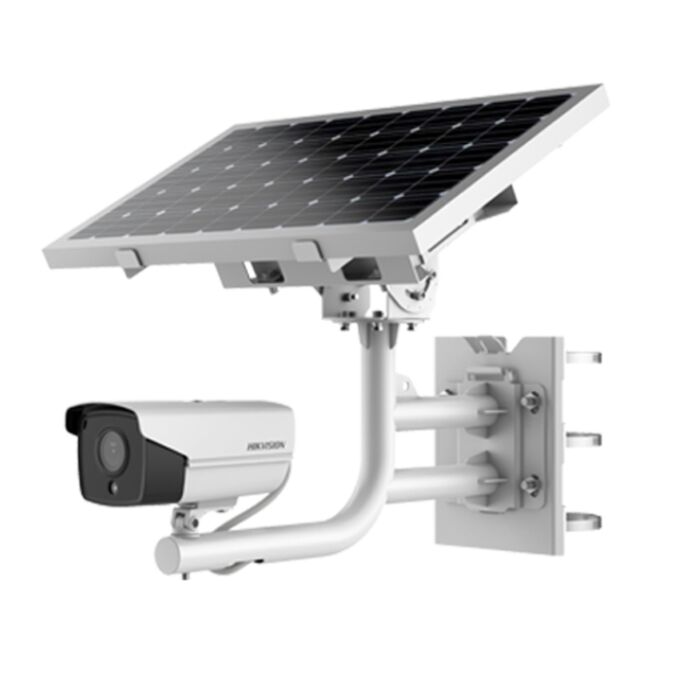

The Hikvision DS-2XS6A25G0-I/CH20S40 is a solar panel kit complete with a 4G, 2MP bullet camera to provide a standalone security system for remote or rural sites with no electricity or internet. Providing 24/7 monitoring for sites such as forests, farms and rivers, the kit can also be temporarily installed at sites like music festivals and road maintenance sites. The kit is robust and weather proof with a ratings of IP67.
With a 2.8mm lens, the camera offers a wide field of view of 107° allowing sufficient, overall coverage of large space. Image quality is enhanced with 120dB true WDR technology which helps to balance out strong back light. Also, with thanks to the IR supplement lighting which can reach up to 30 metres, the camera is able to provide great images in near darkness.
When in full power mode, the camera also supports Smart Events, including:
- Line Crossing
- Intrusion Detection
- Region Entrance / Exit Detection
- Object Removal Detection
The 4G Camera also features an on-board slot for a Micro SD card allowing users the opportunity for additional recording.
Battery Information
Hikvision have stated that on a rainy or cloudy day, the camera battery life is up to 7 days when used in 'low consumption mode', or 4.5 days (in high consumption mode) if it has been fully charged.
The daily effective sunlight is 1.77 hours and the camera can be online always (if it works continuously according to the 24-hour average power consumption).
Battery Type: Lithium
Capacity: 20Ah
Maximum Charging Voltage: 12.6B
Operating Temperature: -5°C to 60°C
Battery Voltage: 10.8V
Protection: IP67
Battery Life: More than 800 cycles
Please note that the battery for the Solar Panel Kit needs to be ordered separately. Please visit TYN1220S or see our Frequently Bought Together section above.
