162.00

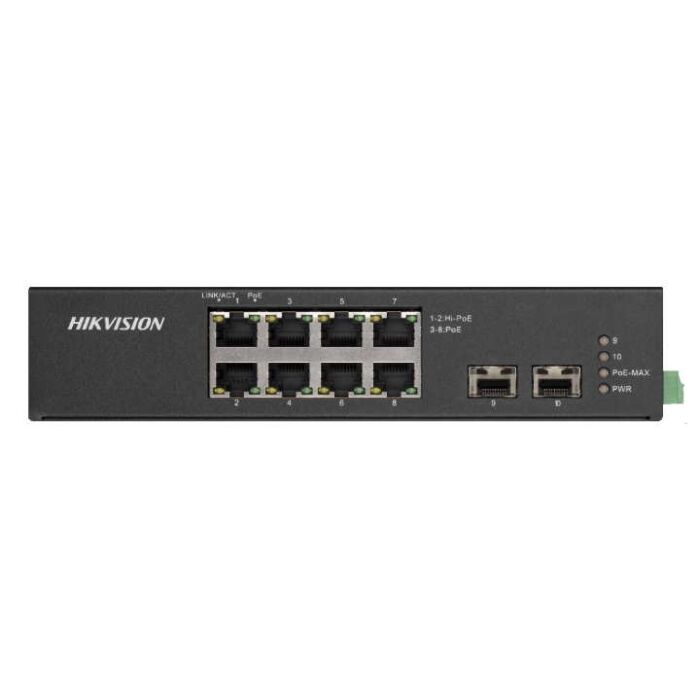

Hikvision DS-3T0510HP-E/HS 8 Port Gigabit Unmanaged Hi-PoE Switch

Availability: Contact Us for Stock Levels

Hikvision DS-3T0510HP-E/HS

Make an Offer

If you would prefer to negotiate a lower price for this item with us, please enter your offer below. We'll then connect you to our Live Chat team who will review your offer as quickly as possible.

Quick Overview

The Hikvsion DS-3T0510HP-E/HS is a long range, 8 port gigabit, unmanaged PoE switch. It features two Hi-PoE ports, and six PoE ports. There are also two SFP Fiber optical ports commonly used for linking switches.

Ports 1 to 2 = Hi-PoE / Max Port Power: 90W
Ports 3 to 8 = PoE / Max Port Power: 30W
Ports 7 to 8 = Long-distance transmission (up to 300m)



Product Datasheets

Hikvision DS-3T0510HP-E/HS 8 Port Gigabit Unmanaged Hi-PoE Switch Datasheet (0.94MB)


Authorised Hikvision Seller
Find use-IP on Youtube   Find out more at the use-IP forum   Find the correct firmware for your camera


Key Features

- 6 × gigabit PoE RJ45 ports
- 2 × gigabit Hi-PoE RJ45 ports
- 2 × gigabit SFP fiber optical ports
- 6 KV surge protection for PoE ports
- PoE output power management
- Up to 300 m long-range transmission
- PoE watchdog to auto detect and restart the cameras that do not respond
- Port isolation to improve network security
- Metal material, fan-free design
- Ports 7 and 8 offer long distance transmission.

Standard
- Ports 1 and 2: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
- Ports 3 to 8: IEEE 802.3af, IEEE 802.3at

Max Port Power
- Ports 1 and 2: 90 W
- Ports 3 to 8: 30 W

Port Type
- RJ45 port, full duplex, MDI/MDI-X adaptive

Port Number
- 1 × 10/100 Mbps Hi-PoE port,
- 7 × 10/100 Mbps PoE ports,
- 2 × 10/100 Mbps RJ45 ports

Other
- Mac Address Table: 4K
- PoE Power Budget: 110W
- PoE Power Consumption: 120W
- Switching Capacity: 20 Gbps
- Power Supply: 48 to 57 VDC, 2.5 A Max.

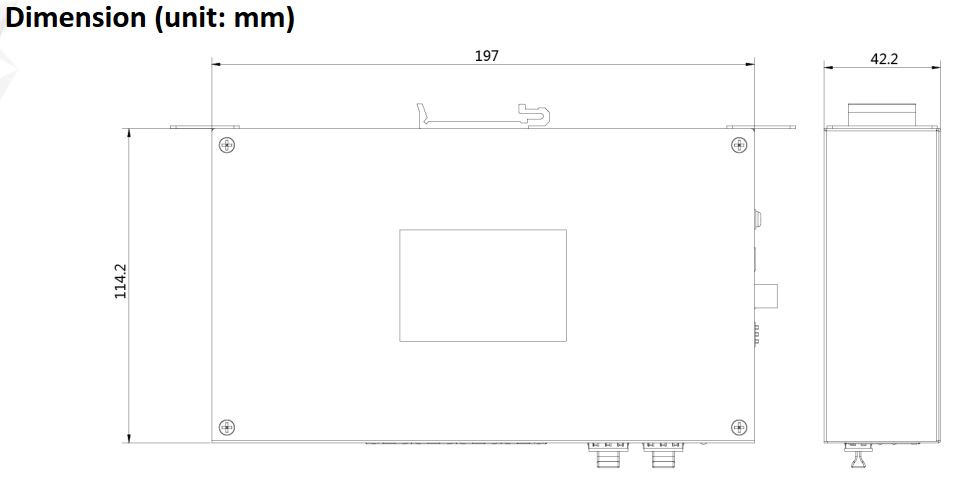

Dimensions

Additional Information

Weight 1110.0000
