Hikvision DS-KABD8003-RS3 3 Gang Intercom Module Rain Shield
SKU: DS-KABD8003-RS3
Contact Us for Stock Levels
Key Features
3 Module Rain Shield
For use with the Module Intercom range by Hikvision
Weight: 500g
Dimensions: 325.8 x 116.4 x 58mm
Details
The DS-KABD8003-RS3 is a rain shield for the Intercom Module Door Station (DS-KD8003-IME1), protecting the module from rain, direct sunlight and other elements.
This 3 gang unit is suitable for intercom set ups with dual modules.
Installation:
1 - Paste the installation Sticker 1 onto the wall. Make sure the sticker is placed leveled via measuring with the gradienter. Drill four holes align to the screw holes on the sticker, the suggested size of hole is 6 (diameter) × 25 (depth) mm.
2 - Remove the sticker and insert the expansion sleeves into the screw holes. Fix the mounting frame and protective shield onto the wall with 4 expansion bolts.
3 - Connect the cables to the corresponding interfaces of the main unit and insert it into the frame.
4 - Use the hexagon wrench in the package fix the cover onto the frame.

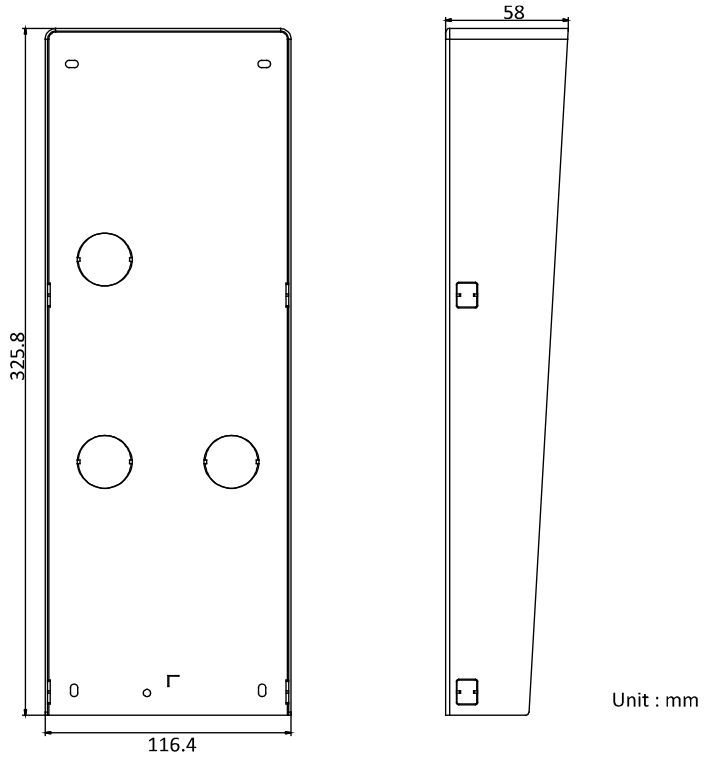

Dimensions:
