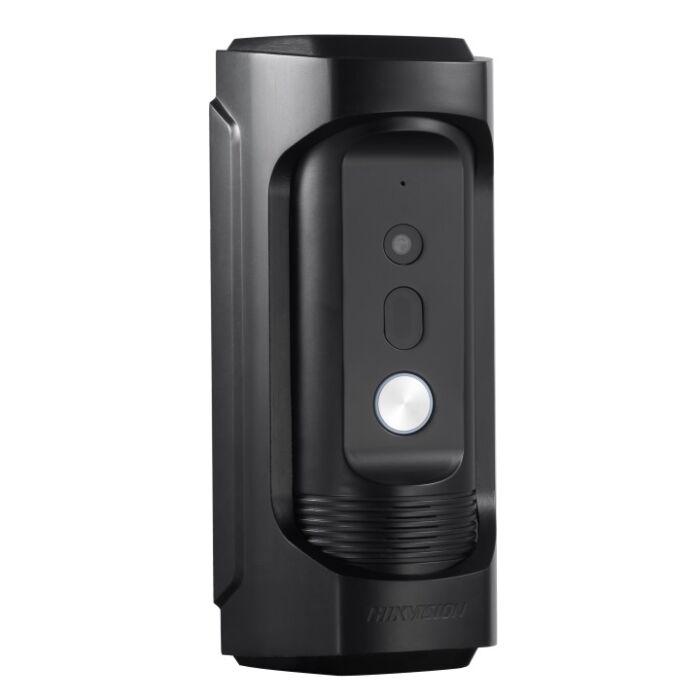

Hikvision DS-KB8112-IM Vandal Resistant IP Video Intercom Door Station

Availability: Available for delivery in 2~3 working days

Hikvision DS-KB8112-IM

Make an Offer

If you would prefer to negotiate a lower price for this item with us, please enter your offer below. We'll then connect you to our Live Chat team who will review your offer as quickly as possible.

Quick Overview

The Hikvision DS-KB8112-IM is a IP video intercom door station with an impact protection level of 9 this unit is protected against vandal attempts.

This unit has an easy installation and operation, supports the video intercom function, access control function, door magnetic alarm and motion detection.


DS-KB8112-IM Call Button


Dimensions: 161.9mm x 74.1mm x 53.2mm

Hikvision DS-KB8112-IM User Manual Hikvision DS-KB8112-IM Quick Start Guide Hikvision 2nd Generation IP Video Intercom System Hikvision IP Video Intercom 2.0

Product Datasheets

Hikvision DS-KB8112-IM Vandal Resistant IP Video Intercom Door Station Datasheet (0.64MB)


DS-KB8112-IM

Find use-IP on Youtube   Find out more at the use-IP forum   Find the correct firmware for your camera

Key Features

- Video intercom function, supporting communication with the master station and indoor station.
- Access control function, supporting multiple door opening modes
- Self-adaptive IR supplement with max. 5-meter IR distance
- High-performance embedded SOC processor
- IK9 vandal resistant
- IK66 weather resistant
- H.264 video compression standard
- Low illumination
- Supports the door magnetic alarm
- Auto-uploads alarm messages to the master station or the client software
- Remote reboot, remote upgrade, time synchronisation via NTP and batch configuration function
- Supports web remote access and OSD display

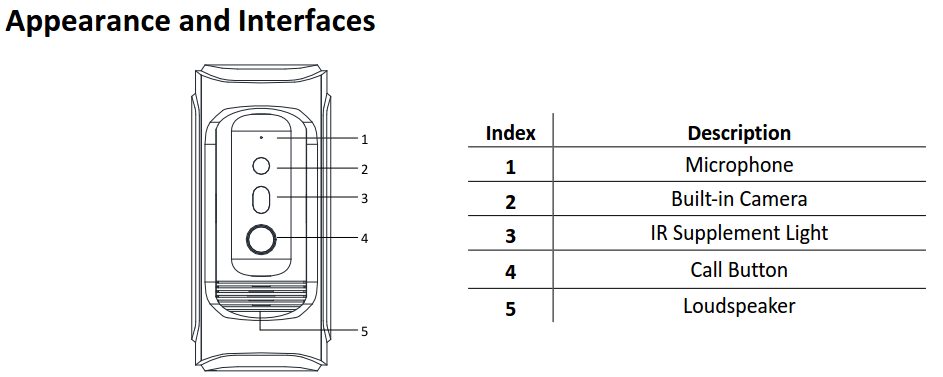

DS-KB8112-IM Interface

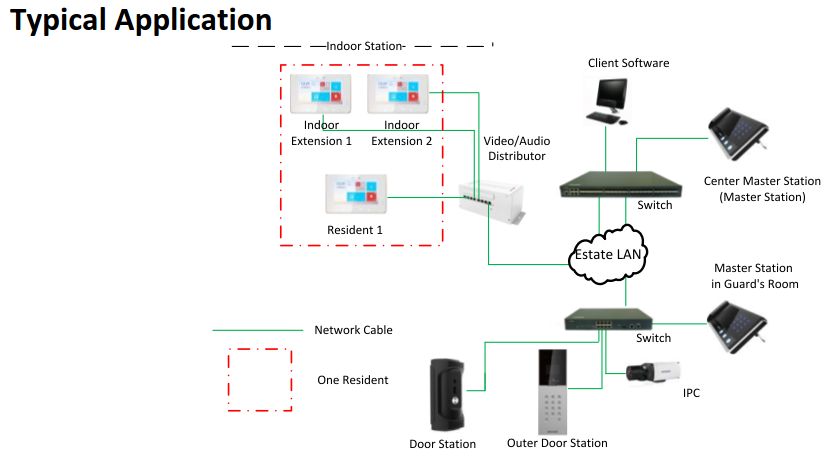

DS-KB8112-IM Typical Application

Additional Information

Weight 773.0000
Processor High-Performance Embedded SOC Processor
Operation System Embedded Linux OS
Megapixels < 1 MP
Colour / monochrome True Day/Night
Image Compression H.264
Max. Resolution 1280 X 720
Max. Images per second 25
Audio Two way, full duplex
Light Supplement Mode IR Supplement
Material Aluminium Alloy
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP66
Supply Volts 12V DC or PoE
Power Consumption max. 12W
