Hikvision DS-KABD8003-RS3/S 3 Gang Intercom Module Rain Shield - Stainless Steel
SKU: DS-KABD8003-RS3/S
Contact Us for Stock Levels
Key Features
Stainless Steel
3 Module Rain Shield
For use with the Module Intercom range by Hikvision
Weight: 702.3g
Dimensions: 325.8 x 116.4 x 58mm
Details

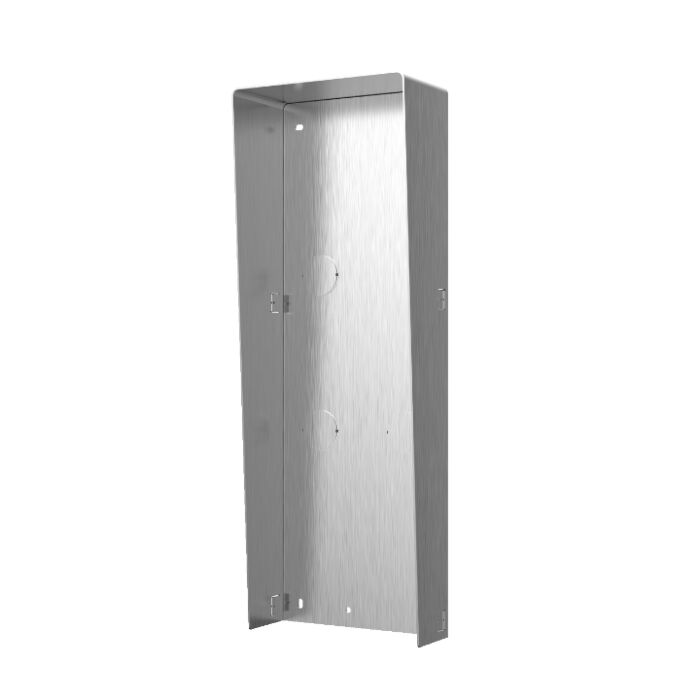

The DS-KABD8003-RS3/S is a rain shield for the Intercom Module Door Station (DS-KD8003-IME1/S), protecting the module from rain, direct sunlight and other elements.
This 3 gang unit is suitable for intercom set ups with three modules and has been designed for use with the Stainless Steel intercom range.
Installation:
1 - Paste the installation Sticker 1 onto the wall. Make sure the sticker is placed leveled via measuring with the gradienter. Drill four holes align to the screw holes on the sticker, the suggested size of hole is 6 (diameter) × 25 (depth) mm.
2 - Remove the sticker and insert the expansion sleeves into the screw holes. Fix the mounting frame and protective shield onto the wall with 4 expansion bolts.
3 - Connect the cables to the corresponding interfaces of the main unit and insert it into the frame.
4 - Use the hexagon wrench in the package fix the cover onto the frame.
Dimensions:
