IDIS DR-2504P DirectIP 2500 Series 4 Channel 4K Network Video Recorder
SKU: DR-2504P
In stock
Key Features:
- Supports H.265/H.264 codec
- Built-in 4 channel PoE switch
- Total incoming throughput 160Mbps
- Supports UHD display
- Up to 120fps UHD real-time recording
- Up to 120fps live display
- Easy to install, set-up and play with DirectIP cameras
- Supports one click network configuration through FEN service
- Supports third party cameras
IDIS NVRs are supplied without hard drives.
We recommend the WD Purple HDDs or the Toshiba HDDs for this product.


IDIS 2500 Series Installation Manual
IDIS 2500 Series Operation Manual
IDIS 2500 Series Quick Guide
IDIS Brochure

This product may not be immediately available from UK stock, in which case it will take 7~14 days to fetch it from their European warehouse.
Please contact us before purchasing for an accurate lead time.
Useful IDIS Tools
- IDIS Technical Resources
- IDIS Design Tool
- IDIS Glossary
Details

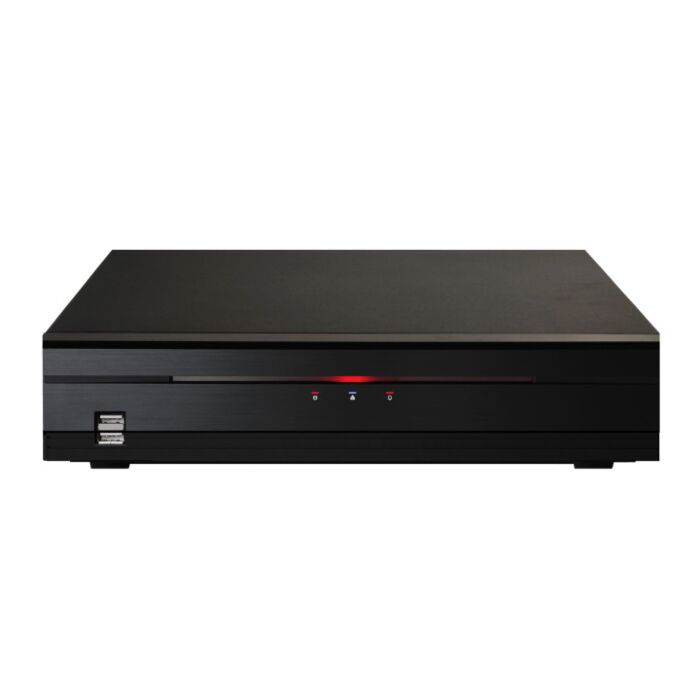

The IDIS DR-2504P is a 4-channel network video recorder that has been designed for use with the DirectIP camera range.
This NDAA-compliant unit is equipped with a range of features including a 4K UHD display, up to 120fps UHD real-time recording and up to 120fps live display. The DR-2504P is easy to install, set up and play with DirectIP cameras. Although the unit has been designed to seamlessly pair with the DirectIP range of cameras the unit is not limited to this range. The NVR supports a selection of cameras from different brands thanks to the support for third-party cameras.
Set up for cameras is made even easier thanks to the built-in 4 port PoE switch which enables users to directly connect their cameras to the unit. This eliminates the need for multiple power supplies and added cabling.
| Benefits: | Trigger Events: |
|
- 4 channel synchronous playback - 2 x HDD bays - 160Mbps incoming throughput - HDMI and VGA video outputs - Up to 12MP recording resolution - Fast and easy search feature (time-lapse, event log, text-in) - Self-diagnosis and automated system event alerts (industry standard S.M.A.R.T. protocol for HDD status alerts) - Multiple recording modes (schedule, event, pre-event, and panic) |
- Alarm in - Audio detection - Motion detection - Trip zone - Tampering - Video loss - Text-in - ANPR |

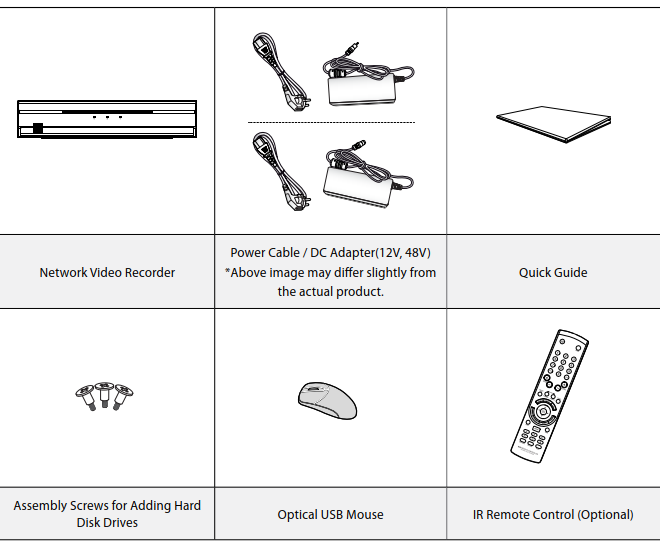

Packing List:
- DR-2504P
- Power cable
- Quick guide
- Assembly screws
- Optical USB mouse
- IR remote control (optional)
