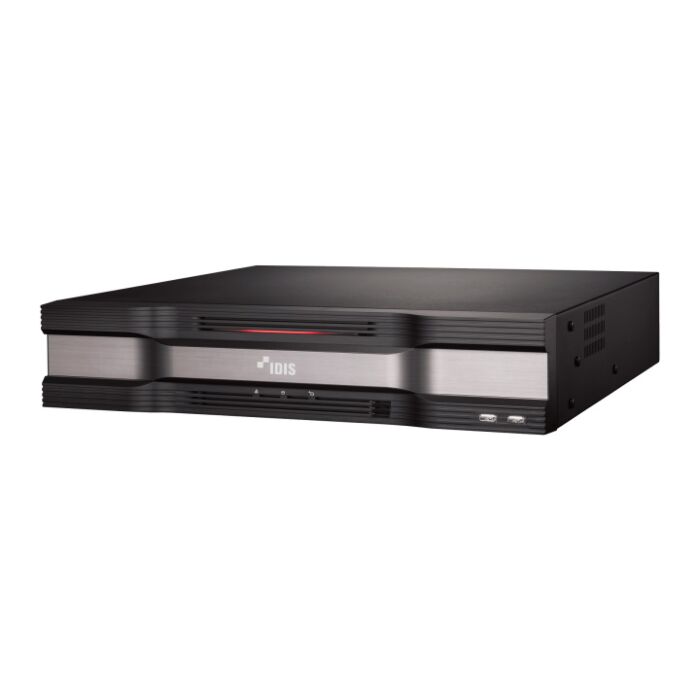

IDIS DR-6516P DirectIP 6500 Series 16 Channel 4K Network Video Recorder
SKU: DR-6516P
In stock
Key Features:
- Supports H.265/H.264 codec
- Built-in 16-channel PoE switch
- Total incoming throughput 320Mbps
- Supports UHD display
- Up to 480fps UHD real-time recording
- Up to 480fps live display
- Easy to install, set up and play with DirectIP cameras
- Expandable up to 124TB using eSATA storage
- Supports RAID 1
- Supports one-click network configuration through FEN service
- Supports third-party cameras
IDIS NVRs are supplied without hard drives.
We recommend the WD Purple HDDs or the Toshiba HDDs for this product.
IDIS 6500 Series Installation Manual
IDIS 6500 Series Operation Manual
IDIS 6500 Series Quick Guide
IDIS Brochure
This product may not be immediately available from UK stock, in which case it will take 7~14 days to fetch it from their European warehouse.
Please contact us before purchasing for an accurate lead time.
Useful IDIS Tools
- IDIS Technical Resources
- IDIS Design Tool
- IDIS Glossary
Details
The IDIS DR-6516P is part of the DirectIP 6500 series of Network Video Recorders. This 16-channel unit features a 16-port POE switch built-in enabling users to connect up to 16 cameras directly to the NVR.
Designed for use with the DirectIP range of cameras it is easy to install, set up and use them with the DR-6516P. The NVR is not limited to use with DirectIP cameras but can be used with a selection of cameras from a variety of manufacturers thanks to the support for third-party cameras.
| Benefits: | Trigger Events: |
|
- 16 channel synchronous playback - 6 x HDD bays - 320Mbps incoming throughput - HDMI and VGA video outputs - Up to 12MP recording resolution - Fast and easy search feature (time-lapse, event log, text-in) - Self-diagnosis and automated system event alerts (industry standard S.M.A.R.T. protocol for HDD status alerts) - Multiple recording modes (schedule, event, pre-event, and panic) |
- Alarm in - Audio detection - Motion detection - Trip zone - Tampering - Video loss - Text-in
|

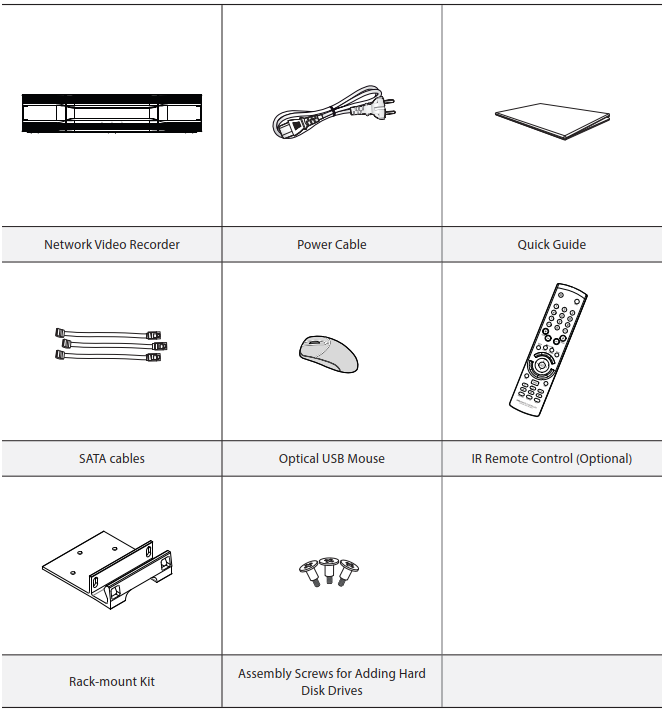

Packing List:
- DR-6516P
- Power cable
- Quick guide
- SATA cables
- Optical USB mouse
- OPTIONAL IR remote control
- Rack-mount kit
- Assembly screws for adding HDDs
