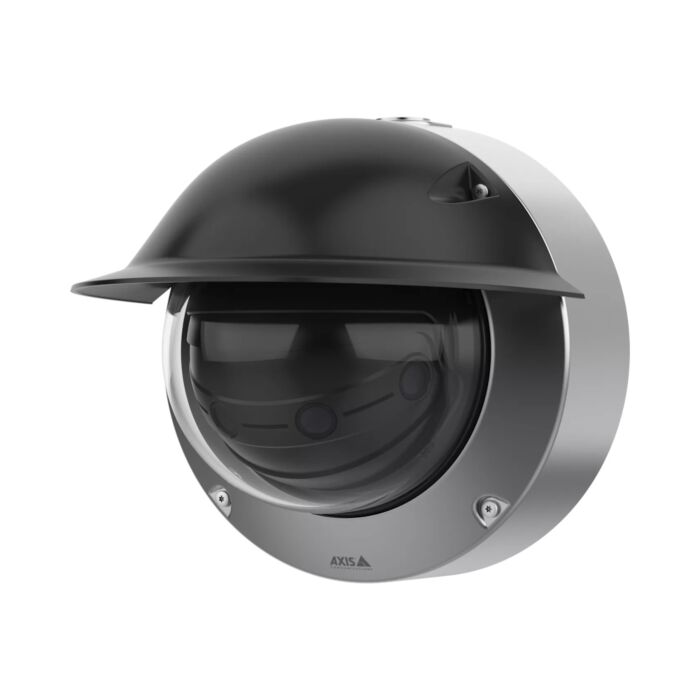

Axis Q3839-SPVE 29MP Multisensor Panoramic Camera
SKU: 03201-001
Contact Us for Stock Levels
Key Features:
- 8K Multisensor Camera with 1 IP Address
- 4 x 8.3MP Sensors
- Stainless Steel Casing
- Forensic WDR up to 120dB
- 180° Horizontal Field of View
- Horizon Straightening and Lossless Zoom
- Zipstream
- Lightfinder 2.0
- AI-Powered with Support for Advanced Analytics
- DLPU compute capabilities (Deep Learning Processing Unit)
- Built-in Cybersecurity with Axis Edge Vault
- Withstands Corrosive and Harsh Conditions
- IP66-, IP67- IP68-, IP6K9K, NEMA 4X-, and IK10-rated
- 5 year warranty
Axis Q3839-SPVE User Manual
Axis Q3839-SPVE Installation Guide
Axis Q3839-SPVE Dimensions
Axis Q3839-SPVE Drill Template
This product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Details
Enclosed in an electropolished stainless steel casing, the Axis Q3839-SPVE is designed for the harshest environments. It offers 29MP and seamless stitching of all four images to deliver cohesive 180° panoramic overviews for complete situational awareness. Lossless zoom and remote pan/tilt/roll functionality ensure fast, cost-efficient installation. Built on a dual Axis system-on-chip, it includes a deep learning processing unit to run advanced features and powerful analytics on the edge. Axis Object Analytics can detect, classify, track, and count humans, vehicles, and types of vehicles. Furthermore, Axis Edge Vault safeguards the device and offers FIPS 140-2 Level 2 certified key storage and operations.
Features Explained:
- Stainless Steel Casing has high resistance to rusting and corrosion with a lower proportion of carbon in its composition.
- AXIS Edge Vault is a secure cryptographic compute module, capable of keeping an Axis device ID secure and permanently stored and installed. Cybersecurity is further enhanced by Signed Firmware, Secure Boot, and, TPM (Trusted Platform Module).
- AXIS Object Analytics comes pre-installed, and offers a selection of analytics for human and vehicle classification, powered by AI-based algorithms.
Object classes: humans / vehicles (types: cars, buses, trucks, bikes)
Features: line crossing, object in area, occupancy in area, up to 10 scenarios, visualised metadata (with trajectories and colour-coding), polygon include/exclude areas, and, ONVIF motion alarm event.
- WDR (Wide Dynamic Range) helps to ensure that camera images are usable and clear. In some scenes, there can be a contrast between the darkest and brightest spots in a scene, this can cause the image to be under or overexposed making it difficult, even impossible to identify objects and people. WDR technology can help rectify this issue, producing clear images regardless of difficult light scenarios.
- Lightfinder technology helps Axis cameras to deliver high-resolution, full-colour video in near darkness, stripping away noise to make dark areas visible, and discerning colour in low light. This keeps surveillance capabilities working their best at all times, with clear footage regardless of lighting conditions within a scene.
DORI (Detect, Observe, Recognise, Identify):
| Detect | Observe | Recognise | Identify | |
| Definition | 25px/m | 63px/m | 125px/m | 250px/m |
| Distance | 88.3m | 35m | 17.7m | 8.8m |

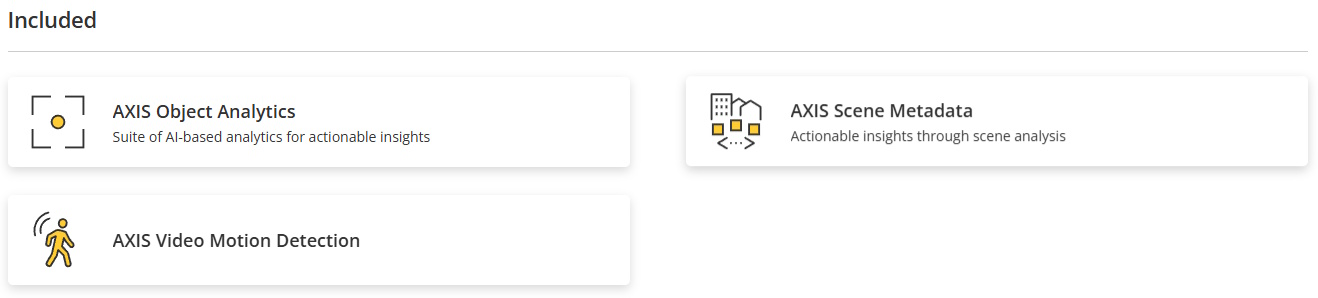

Supported Analytics:
Box Content:
- Q3839-SPVE Camera
- Installation Guide
- Terminal Block Connector
- Connector Guard
- Cable Gaskets
- Wall Gasket
- Plugs
- Owner Authnetication Key

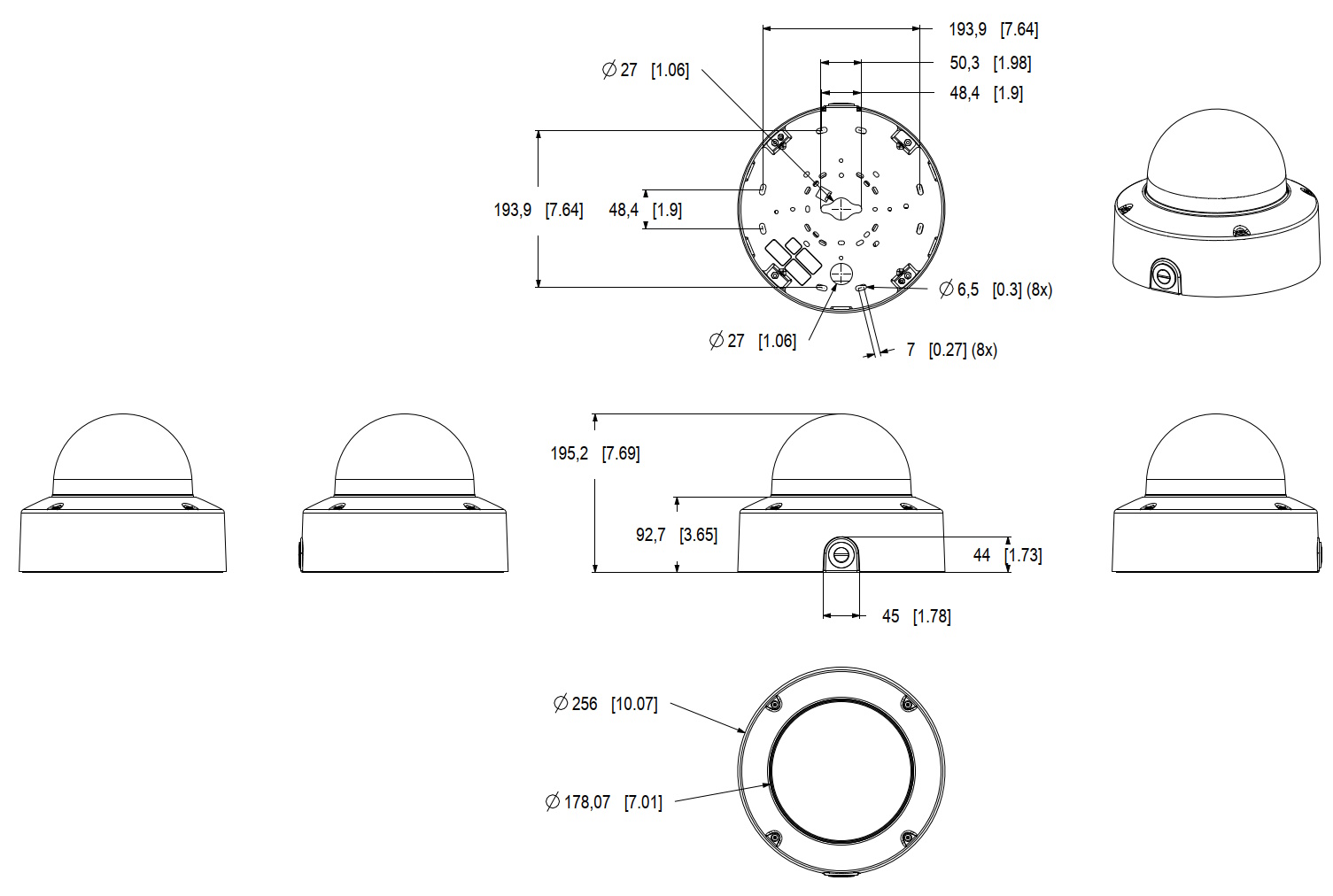

Dimensions:
