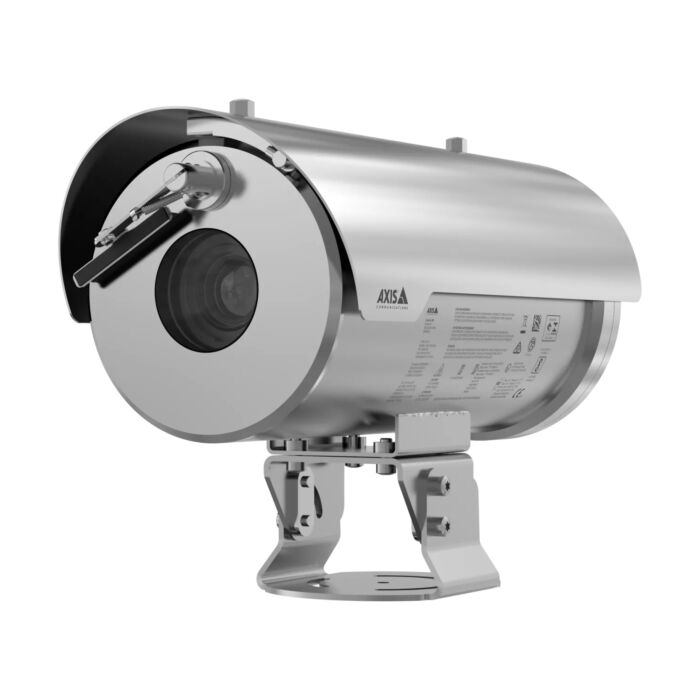

Axis XFQ1656 4MP Explosion-Protected Camera
SKU: 02462-001
Contact Us for Stock Levels
Key features:
- 4MP (2688x1512) Resolution, up to 30fps
- Worldwide hazardous area certifications
- Excellent light sensitivity
- Advanced analytics preinstalled
- Electronic image stabilisation
- Lightfinder 2.0
- Forensic Wide Dynamic Range (WDR)
- Built-in cybersecurity with Axis Edge Vault
- IP66-, IP67, and IP68-rated stainless steel casing
- IK10-rated housing
- Wiper included
- 5 year warranty

Axis XFQ1656 User Manual
Axis XFQ1656 Installation Guide
Axis Ex Series Installation Manual IM001
Axis XFQ1656 Dimensions

Details
The Axis XFQ1656 is certified worldwide for use in hazardous locations (Class I/II/III Div 1, Zone 1,21, IIC, IIIC, and Ex I Mb certified). Ideal for health and safety applications, preinstalled smoke-alert analytics monitor for signs of smoke or fire in combustible environments. Plus, Axis Object Analytics can detect people in restricted areas and supports safety compliance with hardhat detection. In addition, the XFQ1656 can easily be integrated with production monitoring and industrial control systems to provide valuable image-based data, analysed by deep learning algorithms. This can help improve scene understanding and offers valuable information about processes.
Features Explained:
- AXIS Edge Vault is a secure cryptographic compute module, capable of keeping an Axis device ID secure and permanently stored and installed. Cybersecurity is further enhanced by Signed Firmware, Secure Boot, and, TPM (Trusted Platform Module).
- AXIS Object Analytics comes pre-installed, and offers a selection of analytics for human and vehicle classification, powered by AI-based algorithms.
Object classes: humans / vehicles (types: cars, buses, trucks, bikes)
Features: line crossing, object in area, occupancy in area, up to 10 scenarios, visualised metadata (with trajectories and colour-coding), polygon include/exclude areas, and, ONVIF motion alarm event.
- Lightfinder technology helps Axis cameras to deliver high-resolution, full-colour video in near darkness, stripping away noise to make dark areas visible, and discerning colour in low light. This keeps surveillance capabilities working their best at all times, with clear footage regardless of lighting conditions within a scene.
- OptimizedIR offers a combination of camera intelligence and LED technology, for an advanced camera-integrated IR solution, equipped for complete darkness.
- Electronic Image Stabilisation provides smooth video in situations where a camera is subject to vibrations. Built-in gyroscopic sensors continuously detect the camera's movements and vibrations, and automatically adjusts the frame to ensure users always capture the details they need.
- Smoke Alert Analytics serve as an additional layer of safety, monitoring for signs of smoke or fire (and are also able to detect the early stages of fire)

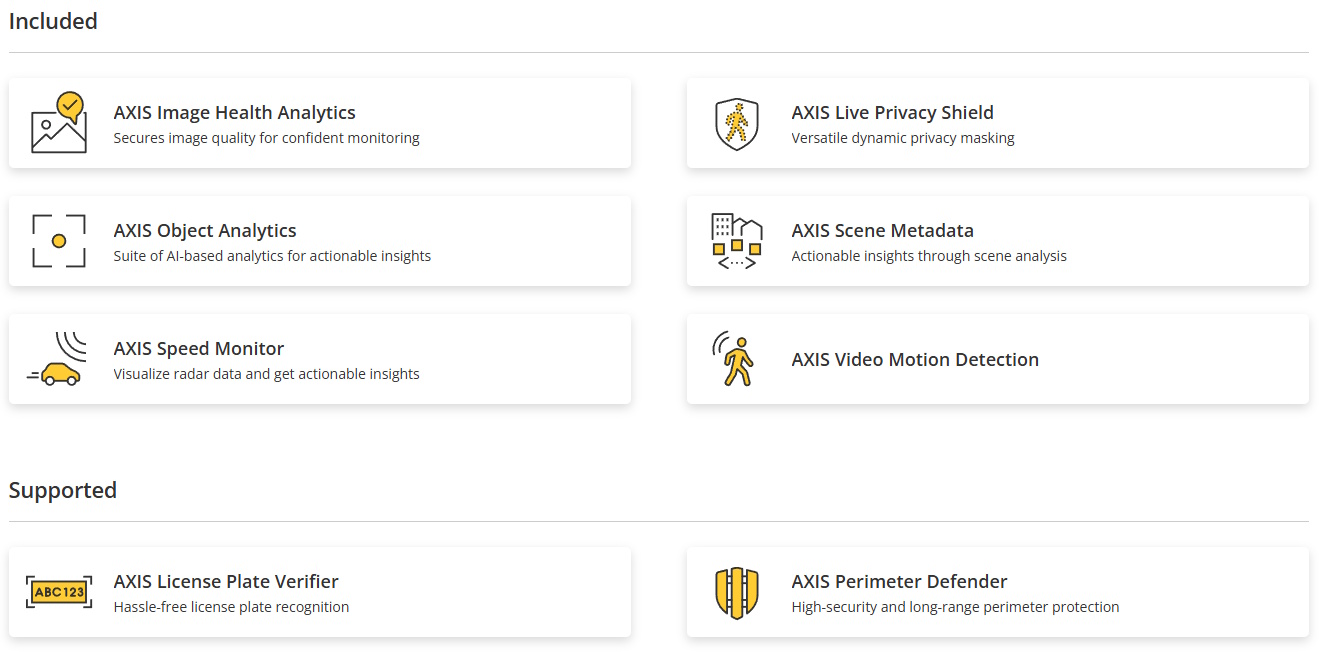

Supported Analytics:

Box Content:
- XFQ1656 Camera
- Installation Guide
- Installation Manual IM001
- TQ1903-E Swivel Joint
- TQ1924–E Washer Nozzle
- TQ1917 Adapter M25x1.5-3/4 NPT
- Connector Kit
- H4 Bit
- Owner Authentication Key
- Declaration of Conformity

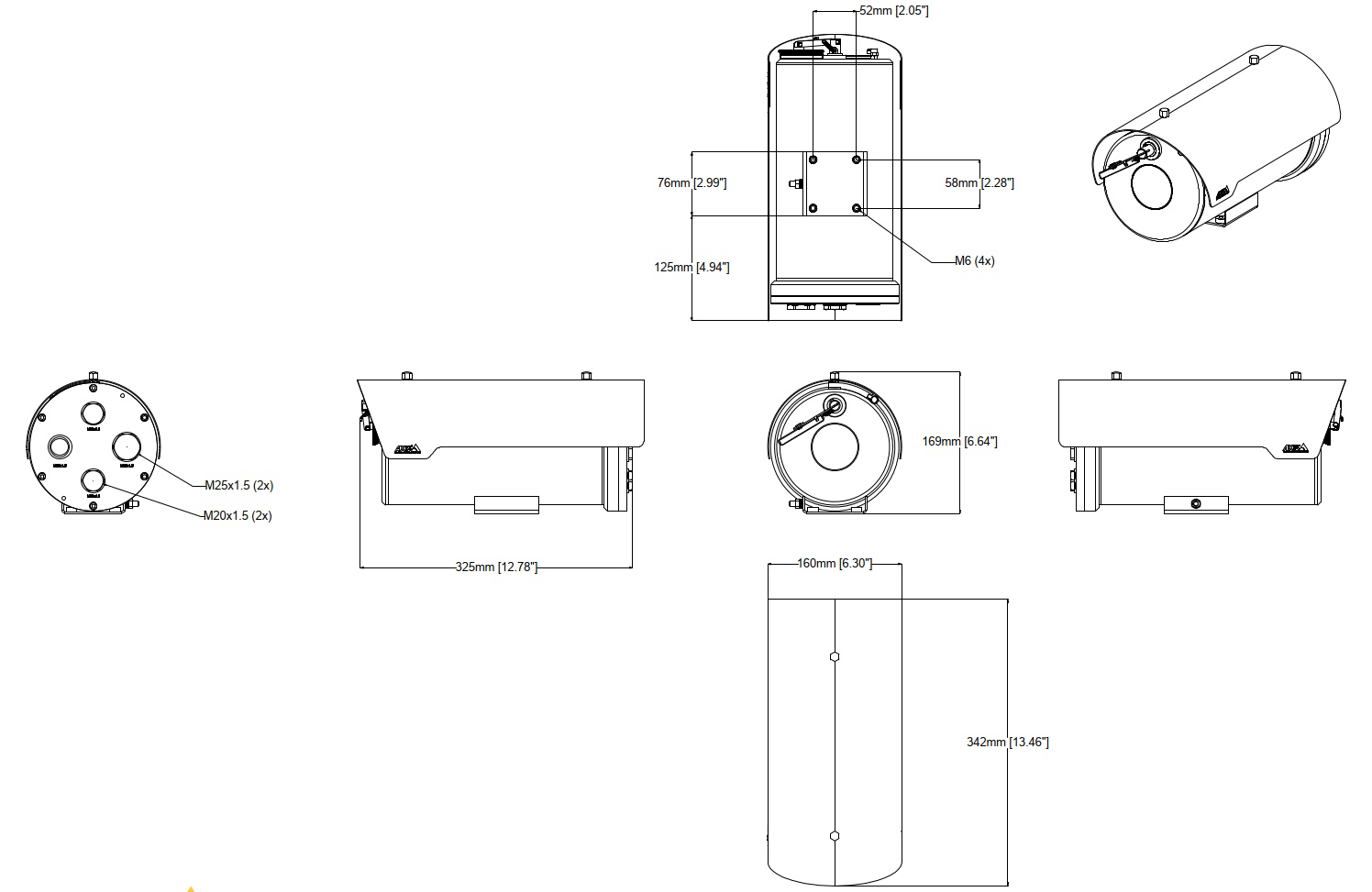

Dimensions:
