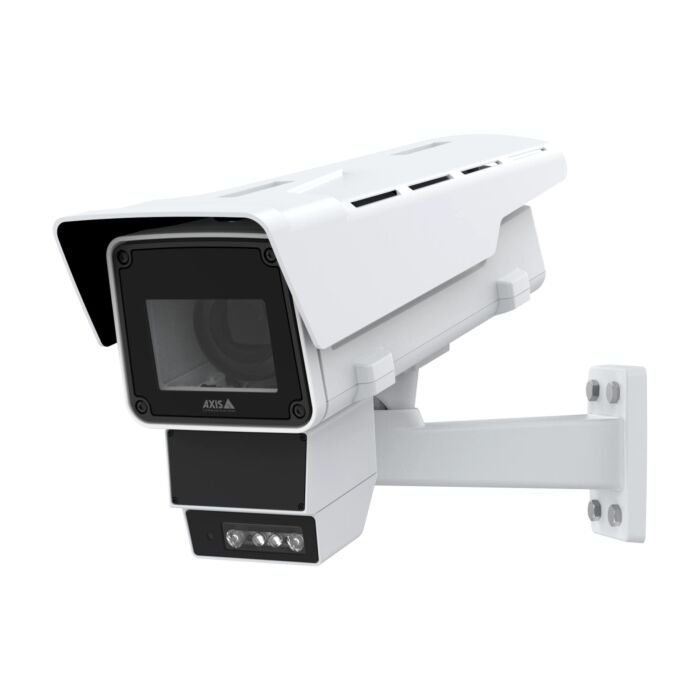

Axis Q1686-DLE Radar-Video Fusion Camera
SKU: 02968-001
Out of stock
Key Features:
- 4MP (2688x1512) Resolution
- Varifocal Tele Lens - 9–50 mm focal length
- 46°–9° Horizontal FOV
- Merge vehicle speed and license plate - on the edge
- Radar tracking of speed and direction
- Monitor speeds up to 200km/h (125mph)
- IR Illumination up to 50m
- Reliable license plate capture and recognition 24/7
- Open platform for third-party software
- Built-in cybersecurity with Axis Edge Vault
- Operating conditions - Temperature - -40 °C to 50 °C | Humidity - 10-100% RH (condensing)
- IP66 Ingress Protection for weather resistance
- IK10 Impact Rating for vandal resistance
- 5 year warranty

Axis Q1686-DLE User Manual
Axis Q1686-DLE Installation Guide
Axis Q1686-DLE Dimensions
Axis Q1686-DLE Repainting Instructions
Axis Product Comparison Table

Details
The Axis Q1686-DLE uses a 60 GHz radar to monitor vehicle speeds up to 200km/h (125 mph), 24/7. It can accurately track speed and direction with a minimum false alarm rate. Featuring a varifocal tele lens with 46°–9° horizontal FOV and traffic-optimised IR illumination kit, it can reliably identify an offending vehicle 24/7. Built on an open platform, you can use the Q1686-DLE with license plate recognition software to connect the speed and direction to a specific license plate. The enables reliable identification of a vehicle, on the edge - in the camera itself. It also offers easy installation and configuration.
DORI (Detect, Observe, Recognise, Identify):
| Detect | Observe | Recognise | Identify | |
| Definition | 25px/m | 63px/m | 125px/m | 250px/m |
| Distance (wide/tele) | 130.2m/664.4m | 51.6m/263.6m | 26m/132.9m | 13m/66.5m |

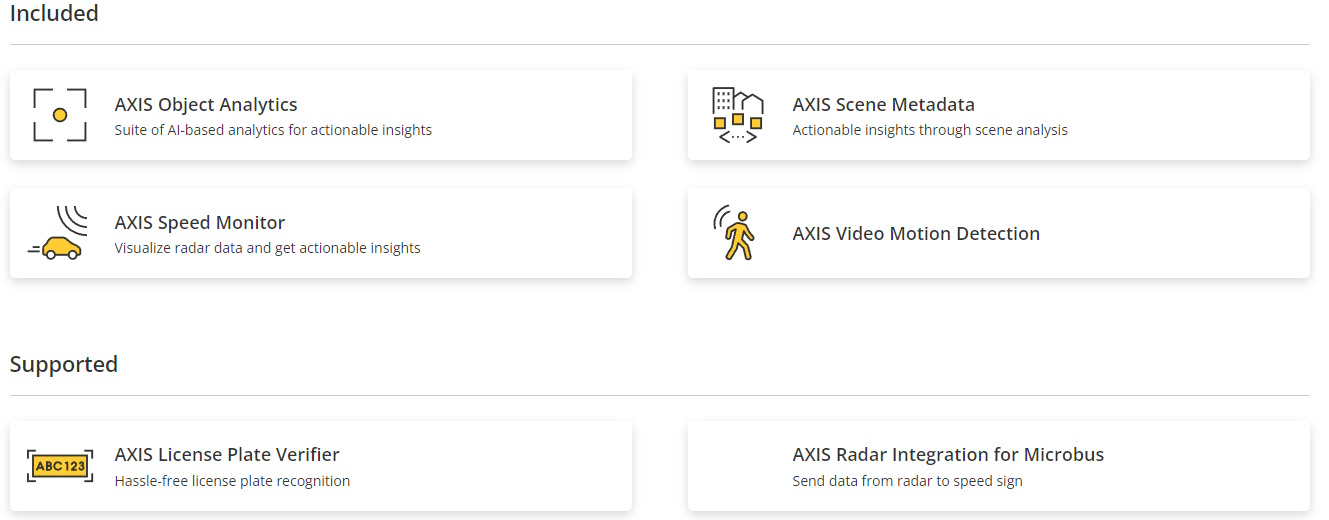

Supported Analytics:

Box Content:
- Q1686-DLE Camera
- Weathershield
- TQ1003-E Wall Mount
- Installation Guide
- resistorx T20 Tool
- Terminal Block Connectors
- Connector Guard
- Cable Gaskets
- Owner Authentication Key

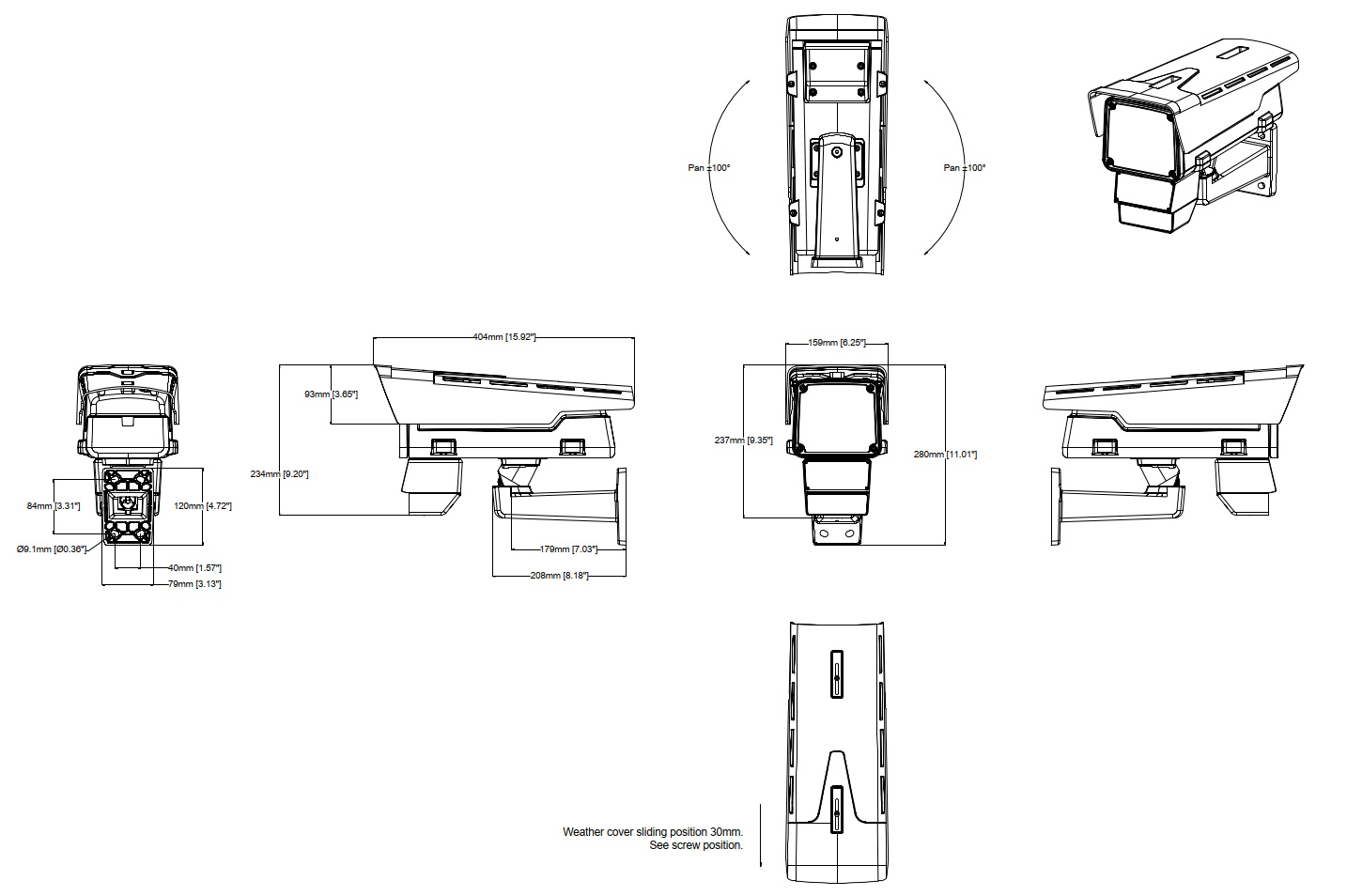

Dimensions:
