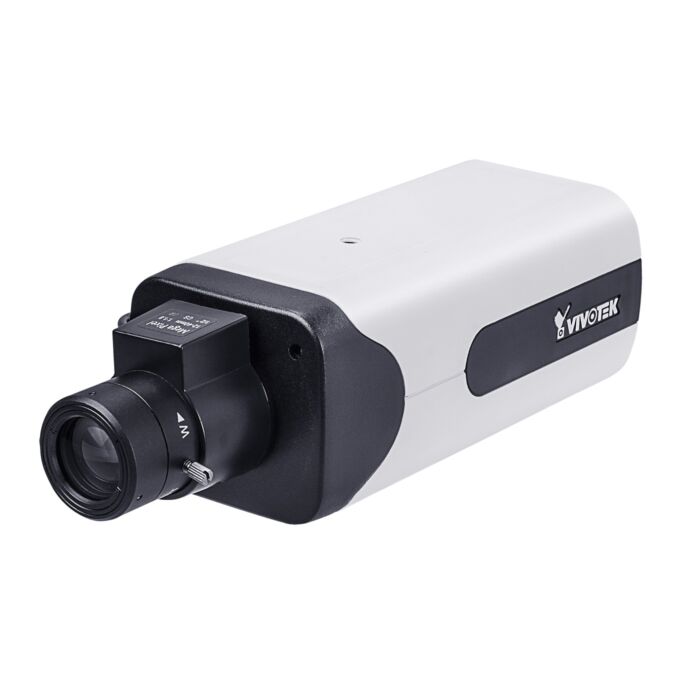

Vivotek IP9165-LPC-v2 Licence Plate Capture 2MP Box Camera
SKU: IP9165-LPC-v2
Out of stock
Key Features:
- 2MP (1920x1080) Resolution
- Max. Framerate - 60 fps
- Avaliable in two Lens options - 9-50mm Vari-focal Remote focus (i-CS), or, 12-40mm Vari-focal Manual focus
- Features Lens Profile, for camera quality optimization
- Features specialised solutions for Licence Plate Capture (LPC) - supports scene modes - LPC-Parking, LPC-Street, and LPC-Highway
- Includes a selection of Smart VCA features, Event Triggers, and Actions
- H.265, H.264, and MJPEG compression technology
- Supports i-CS (intelligent-CS) Lens
- Features Supreme Anti-Glare capability, with Headlight Filter design
- Impressive Low-light performance - SNV II (Supreme Night Visibility II) and 140dB WDR (Wide Dynamic Range)
- Capable of controlling Image Stability, with EIS (Electronic Image Stabalisation)
- Features Video Rotation for corridor view
- Robust Cybersecurity, with Trend Micro IoT Security
- Includes support for a range of Security Features - Includes; Access list, Digest authentication, Password protection, Secure boot, and more
- Operating Temperature - -10°c ~ 60°c
- Fit for use in Outdoor Applications when equipped with supported IP68 Enclosures
- NDAA and ONVIF (Profiles G, S, and T) Compliant
- 3 Year Warranty
This camera is powered by 12V DC, 24V AC, or PoE. We recommend using PoE.
Please note this camera is supplied without a power supply.
Vivotek IP9165-LPC-v2 User Manual
Vivotek IP9165-LPC-v2 Quick Installation Guide
Vivotek Product Brochure
Please contact us for stock levels of this product.
If in stock in Europe please allow 7-10 working days for delivery.
Details
The Vivotek IP9165-LPC-v2 Licence Plate Capture camera offers 2MP resolution, and impressive low-light performance, alongside its dedicated LPC firmware and specialised solutions.
With its many features, ranging from performance and surveillance analytics, to dedicated licence plate capture abilities, the IP9165-LPC-v2 is an ideal camera for use in applications like, Street surveillance, and Parking / Road management.
Licence Plate Capture (LPC) Solutions
Equipped especially for use in Licence Plate Capture scenarios, and applications such as; Roadside surveillance, Parking management, Motorway surveillance, and, Street surveillance, the IP9165-LPC-v2 features a range of LPC solutions and scene modes. These Include:
Scene Modes - LPC-Parking, LPC-Street, and, LPC-Highway, for use in different traffic applications to monitor cars moving at different speeds.
LPR (Licence Plate Recognition) capabilities - allows for high-detail image quality in the capture / recognition of number plates on vehicles travelling up to speeds of 110mph.

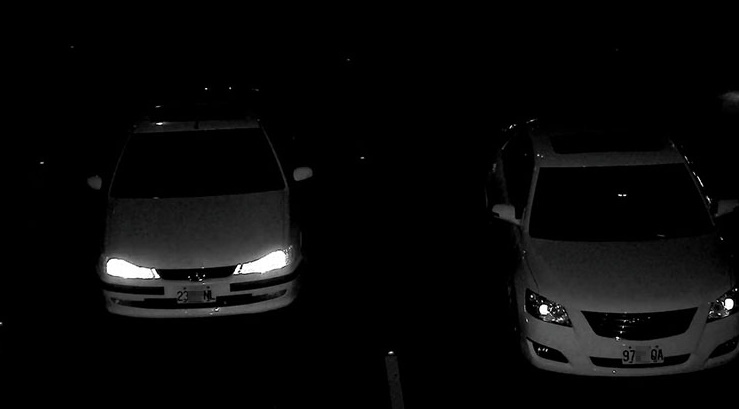

Supreme Anti-Glare and Headlight Filter - included to keep image quality clear, reducing the amount of glare from headlights in the surveillance of vehicles.
Impressive Image Quality and Low-Light Performance
Designed with 2MP image quality, up to 60 fps, the IP9165-LPC-v2 can support 3 simultaneous streams, and a large selection of image settings (including; day/night settings, illuminators, video orientation, remote back focus, and more). Image quality is also designed to be maintained regardless of environmental factors (lighting conditions, vibration, etc) using SNV II, WDR Pro II, and EIS technology:
SNV II (Supreme Night Visibility II) - allows for improved Low-Light performance, making the IP9165-LPC-v2 capable of clear, colour video in poor lighting conditions. Using ultra-sensitive optical sensors, and supported by 3DNR, SNV technology allows cameras to capture high-quality colour video even in the darkest environments.
140dB WDR Pro II (Wide Dynamic Range) - used to provide better visibility in extremely bright or dark environments, supporting Low-Light performance, to offer impressive image quality even in the most challenging lighting conditions.
EIS (Electronic Image Stabilisation) - controls image stability, to keep video quality clear in high vibration environments, so surveillance and Licence Plate capture can be kept as effective as possible, with less interruption.
Image / performance quality is then further improved with the additional inclusion of 3DNR (3D noise reduction - to improve clarity and detail), RBF (Remote Back Focus - to allow for easy focus adjustments), and IR Illumination (with removable IR-cut filter)
Surveillance Analytics, Events, and Actions
VADP Package - Includes; 3-year Trend Micro IoT Security trial, Stratocast, Deep Learning VCA (smart motion detection and smart VCA)
Smart VCA - (with i-CS lens) Intrusion detection, Loitering detection, Line-crossing detection, Unattended object detection, Missing object detection, Face detection, Crowd detection, Running detection, and, Car detection
Event Triggers - Audio detection, Camera tampering detection, Cybersecurity events (brute-force attack, cyberattack, quarantine), Digital input, Manual trigger, Motion detection, Periodical trigger, Recording notification, SD card life expectancy, Shock detection, and, System boot
Event Actions -
Notification via - Audio clip, Camera link, Digital output, Email, HTTP, FTP/SFTP, NAS server, or, SD card.
File Upload via - Email, HTTP, FTP/SFTP, NAS server, or, SD card
Packing Contents:
- Quick Installation Guide
- Lens (9~50mm or 12~40mm)
Additional Accessories - Outdoor Enclosures:
To use the IP695-LPC-v2 in outdoor environments, users will need to equip a supported Outdoor Enclosure to keep the camera protected from weather and water damage. These enclosures include:
- AE-23E-v2 - IP68 and IK10 rated, for weather and vandal resistance, with PoE input
- AE-244 - IP68 and IK10 rated, for weather and vandal resistance, with PoE input, and built-in 50m IR
Dimensions:

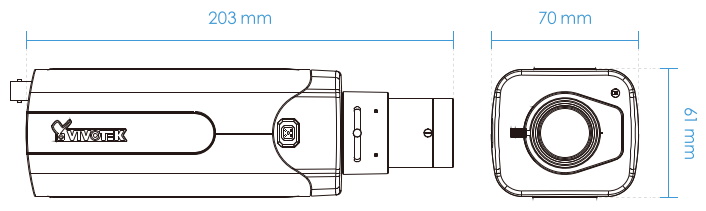

IP9165-LPR (12-40MM)

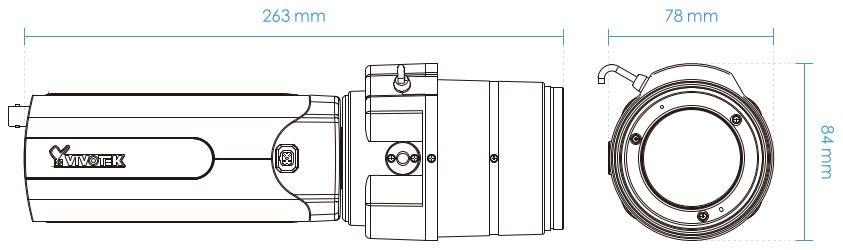

IP9165-LPR (9-50MM)
