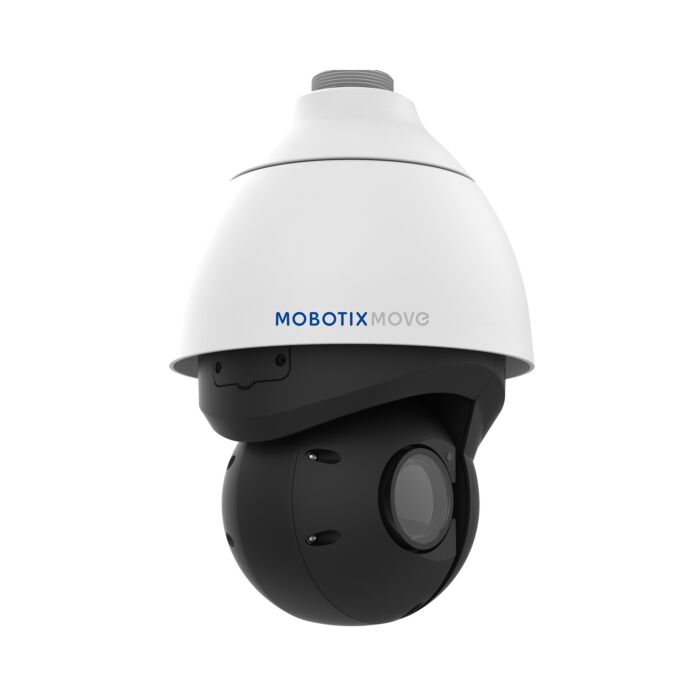

Mobotix Mx-SD1A-540-IR-VA 5MP Speed Dome Camera
SKU: Mx-SD1A-540-IR-VA
Contact Us for Stock Levels
Key Features:
- 5MP (2688x1944) resolution
- 40x Motorised Zoom/Focus Lens - 4.3~170mm
- High light sensitivity
- WDR (Wide Dynamic Range) up to 130dB
- Quad streaming
- IR illumination up to 300m
- Electrical image stabiliser (EIS)
- PTZ specs - Pan range - 360° endless | Tilt range - –20° to +100°|
- Auto object tracking, DNN-based (people, vehicles)
- DNN video analytics linkable to PTZ presets and smart event functions
- Supports MOBOTIX MxMessageSystem
- Smart event functions
- Intelligent encoding, smart low-bitrate control
- Supports microSD/SDHC/SDXC card up to 1TB
- Dual power support (IEEE802.3bt/24V AC)
- IP66 and IK10 ratings for weather and vandal resistance
- EverClear coating of front glass
This product can be powered by 24V AC or PoE++.
We recommend PoE for ease of installation.
Please note: a power supply is not included with this camera so one will need to be purchased separately.
Mobotix Mx-SD1A-540-IR-VA Quick Install
Mobotix Mx-SD1A-540-IR-VA User Guide
Mobotix Move Video Analytics Guide
Mobotix Product Brochure

Details
Supported by the high-performance DNN processor/SoC with a CMOS video sensor, the Mobotix Mx-SD1A-540-IR-VA provides crisp, noise-free video streaming at 5MP resolution even under extremely low-light conditions. The integrated DNN-based video analytics functions include face and license plate recognition that can be combined with preset PTZ positions to enable a wide variety of 24/7 video surveillance applications. The Mobotix EverClear superhydrophilic and self-cleaning nano coating of the front glass ensures the best image quality even in rain and reduces cleaning efforts and operational costs.
| DORI | Detect | Observation | Recognition | Identification |
| Mx-SD1A-540-IR-VA | 91m/3182m | 36m/1263m | 18m/636m | 9m/318m |
Mx-SD1A-540-IR-VA Events and Analytics
| Video Analytics |
Base
Enhanced
DNN (Deep Neural Network) Based
|
| Event Triggers |
|
| Event Actions |
|

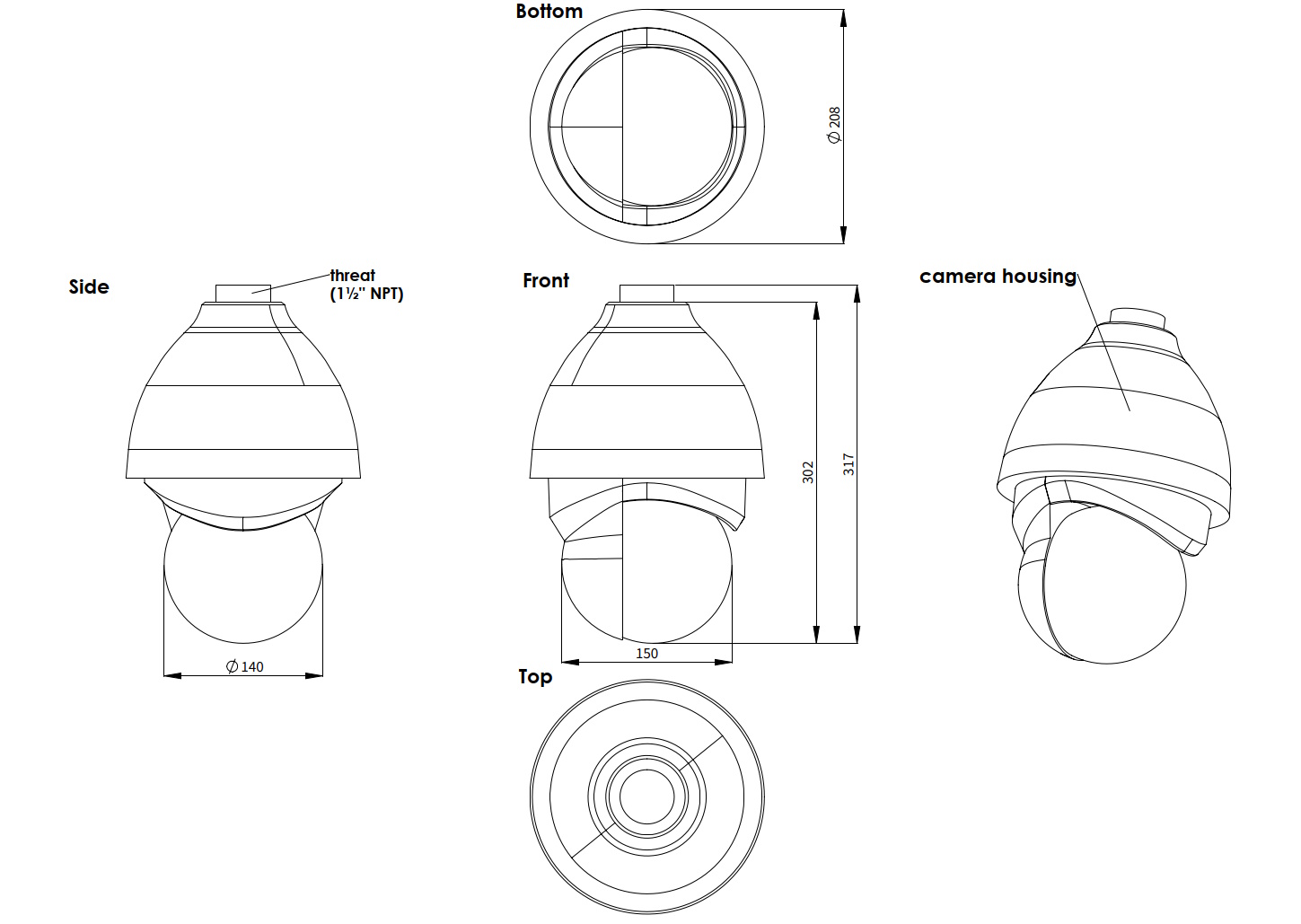

Dimensions:
