Axis Q6086-E 4MP AI-Powered PTZ Camera - No PoE Midspan
SKU: 03188-301
Contact Us for Stock Levels
Key features:
- 4MP (2688x1512) Resolution, up to 60fps
- 1/2" Progressive Scan RGB CMOS sensor
- 34x Optical Zoom and precise laser focus
- Next-generation AI-powered analytics
- Lens Focal Length: 6.64-225.5mm
- Extremely light sensitive
- Forensic WDR up to 120dB
- Lightfinder
- DLPU compute capabilities (Deep Learning Processing Unit)
- Axis Zipstream with AV1, H.264, H.265
- Built-in cybersecurity with Axis Edge Vault
- Operating Conditions (temperature: -50°c to 55°c) (humidity: 10 to 100% RH (condensing)
- 5 year warranty
This product is powered by PoE.
Axis Q6086-E Installation Guide
Axis Q6086-E Repainting Instructions
Axis Q6086-E Dimensions
Axis Q6086-E User Manual
This product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Details

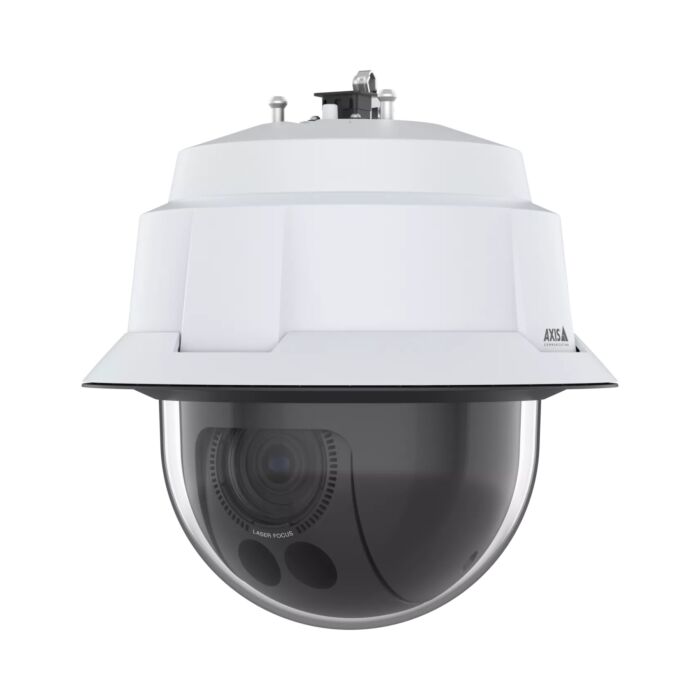

The Axis Q6086-E is a high-resolution camera featuring a light-sensitive 1/2" sensor, 34x optical zoom, and laser focus. Built on ARTPEC-9, it supports AV1 codec and offers accelerated performance to run impressive analytics applications on the edge. For instance, Axis Object Analytics can detect and classify different objects. This IP66-, IK10-, NEMA 4x-, and NEMA TS2-rated device is impact- and weather-resistant. Axis Zipstream with support for AV1, H.264, and H.265 significantly lowers bandwidth and storage requirements. Furthermore, Axis Edge Vault safeguards your device and protects sensitive information from unauthorised access.
Features Explained:
- AV1 is a modern video encoding standard optimised for video transmission over the internet by Alliance for Open Media (AoM). It was designed to provide better compression efficiency while being royalty-free and open-source.
- AXIS Edge Vault is a secure cryptographic compute module, capable of keeping an Axis device ID secure and permanently stored and installed. Cybersecurity is further enhanced by Signed Firmware, Secure Boot, and, TPM (Trusted Platform Module).
- AXIS Object Analytics comes pre-installed, and offers a selection of analytics for human and vehicle classification, powered by AI-based algorithms.
Object classes: humans / vehicles (types: cars, buses, trucks, bikes)
Features: line crossing, object in area, occupancy in area, up to 10 scenarios, visualised metadata (with trajectories and colour-coding), polygon include/exclude areas, and, ONVIF motion alarm event.
- WDR (Wide Dynamic Range) helps to ensure that camera images are usable and clear. In some scenes, there can be a contrast between the darkest and brightest spots in a scene, which can cause the image to be under- or overexposed, making it difficult, even impossible, to identify objects and people. WDR technology can help rectify this issue, producing clear images regardless of difficult light scenarios.
- Lightfinder technology helps Axis cameras to deliver high-resolution, full-colour video in near darkness, stripping away noise to make dark areas visible, and discerning colour in low light. This keeps surveillance capabilities working their best at all times, with clear footage regardless of lighting conditions within a scene.
- Laser focus helps cameras find focus even faster than cameras with autofocus only. This out-of-the-box-ready feature is a fully automatic solution, requiring neither setting nor programming to work.
DORI (Detect, Observe, Recognise, Identify):
| Detect | Observe | Recognise | Identify | |
| Definition | 25px/m | 63px/m | 125px/m | 250px/m |
| 6.64~225.5mm (wide/tele) | 92.6m/3118.4m | 36.7m/1237.5m | 18.5m/623.6m | 9.3m/311.8m |
Supported Analytics:
Box Content:
- Q6086-E Camera
- Weathershield
- Installation Guide
- IP66-rated RJ45 Push-pull connector
- Owner Authentication Key
