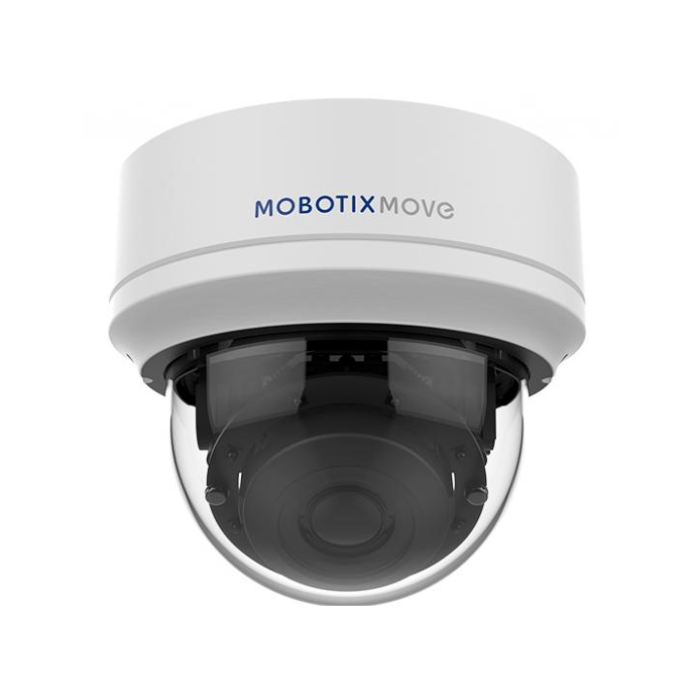

Mobotix Move MX-VD1A-2-IR Vandal Dome Camera

Availability: In stock

£396.00 Incl VAT Excl VAT. £330.00

Mobotix MX-VD1A-2-IR

Make an Offer

If you would prefer to negotiate a lower price for this item with us, please enter your offer below. We'll then connect you to our Live Chat team who will review your offer as quickly as possible.

Quick Overview

This camera is a 2 megapixel vandal dome camera, with built-in IR LEDs effective up to 25m and a focal length of 2.8~12mm providing users with a 91.61°~34.29° horizontal field of view.

The MX-VD1A-2-IR is IP66 and Full IK10 rated meaning the camera is fully protected against punishing weather, vandals, vibration and shock, ensuring camera reliability.

Mobotix MX-VD1A-2-IR Quick Install

Product Datasheets

Mobotix Move MX-VD1A-2-IR Vandal Dome Camera Datasheet (0.35MB)

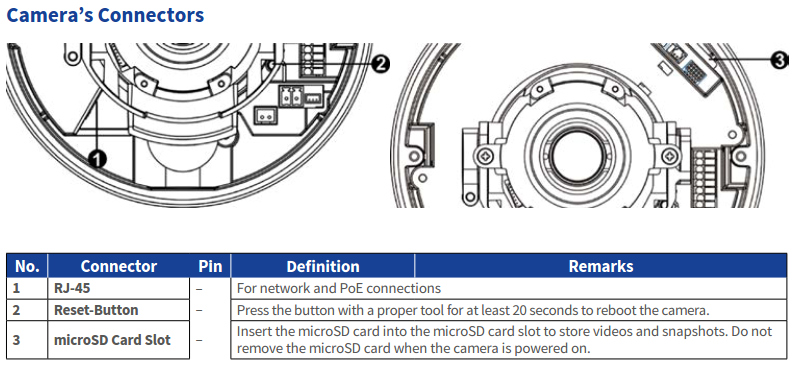

VD-2-IR Diagram

Key Features

- 2.8~12mm varifocal lens
- Wide Dynamic Range 120dB
- Fixed Iris
- PoE
- Quick Connection Mounting
- Integrated IR LEDs
- IP66 and Full IK10
- Extended temperature range up to 60°C

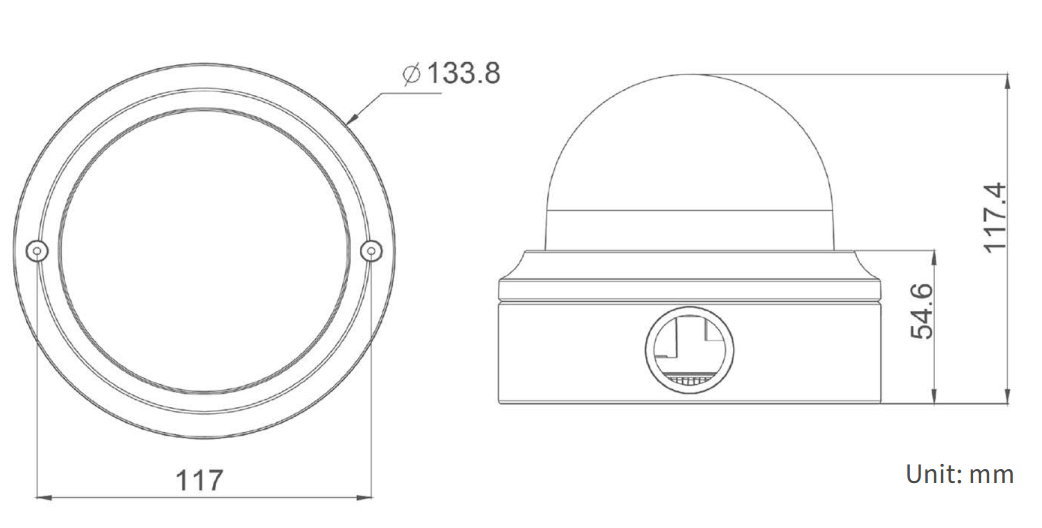

VD-2-IR Dimensions

Additional Information

Image chip size 1/3"
Image chip type Progressive Scan CMOS
Image Compression H.264 (MPEG-4 Part 10/AVC) & MJPEG
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP66
Colour / monochrome True Day/Night
POE built-in Yes
Max. Resolution 1920 X 1080
Min. low-light lux 0.01
Supply Volts POE only
Lens Mount vari-focal lens
Lens Focal Length 2.8~12mm
Viewing Angle 91.61° ~ 34.29° Horizontal Field of View
Aspect ratio 16:9
Megapixels 2 MP
Supplied with lens Yes
IR Range Up to 25m
ONVIF Compatible Yes
Power Consumption max. 7.7W
Warranty 2 Years
Launch Date 2020
