Mobotix Media Converter Set Ethernet (PoE+) - Twisted Pair MX-A-ETP1A-2601-SET
SKU: MX-A-ETP1A-2601-SET
Available for delivery in 7~10 days
Key Features:
- Ethernet over 2-wire communication following IEEE1901 standard
- Data + Power over 2-wire cable (UTP, COM, Power Line etc)
- Supports long-distance Untwisted/Twisted 2-wire cables

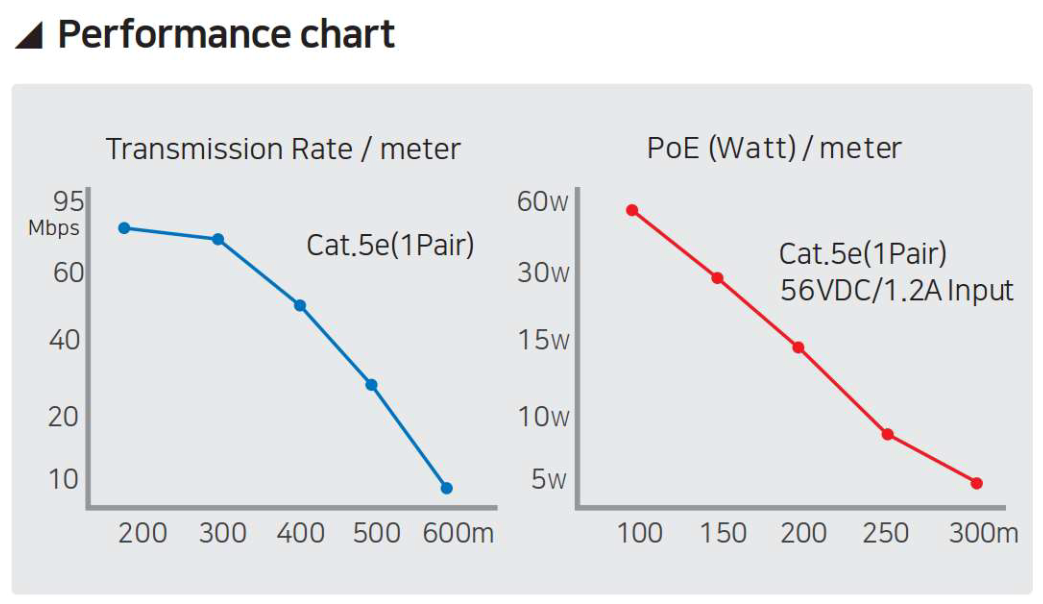

- Data distance up to 600m
- PoE distance up to 300m
- Max. 95Mbps bandwidth (270Mbps between intercoax 2 series models)
- 10/100 Full Duplex
- 128bit AES network encryption
- Supports Multi-connection (Daisy chain, Star, etc)
- PoE, PoE+, Extra PoE (Max. 60W output) (ETP-2601T only)
- PoE ON/OFF switch (ETP-2601T only)
- Quality LED (Data, Power, Link, PoE)
- Plug and Play
- Surge Protection
- Support PoE+ input (25.5W) from PSE devices (ETP-2601R only)
- Slim design
Mobotix Product Brochure
Please note: This product is in stock at Mobotix's Warehouse in Europe and so will take 7~10 days to fetch.
Details

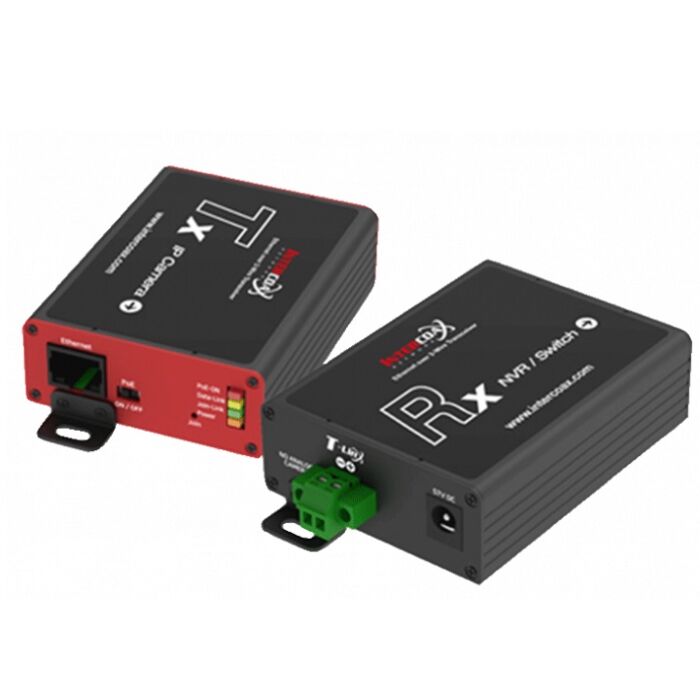

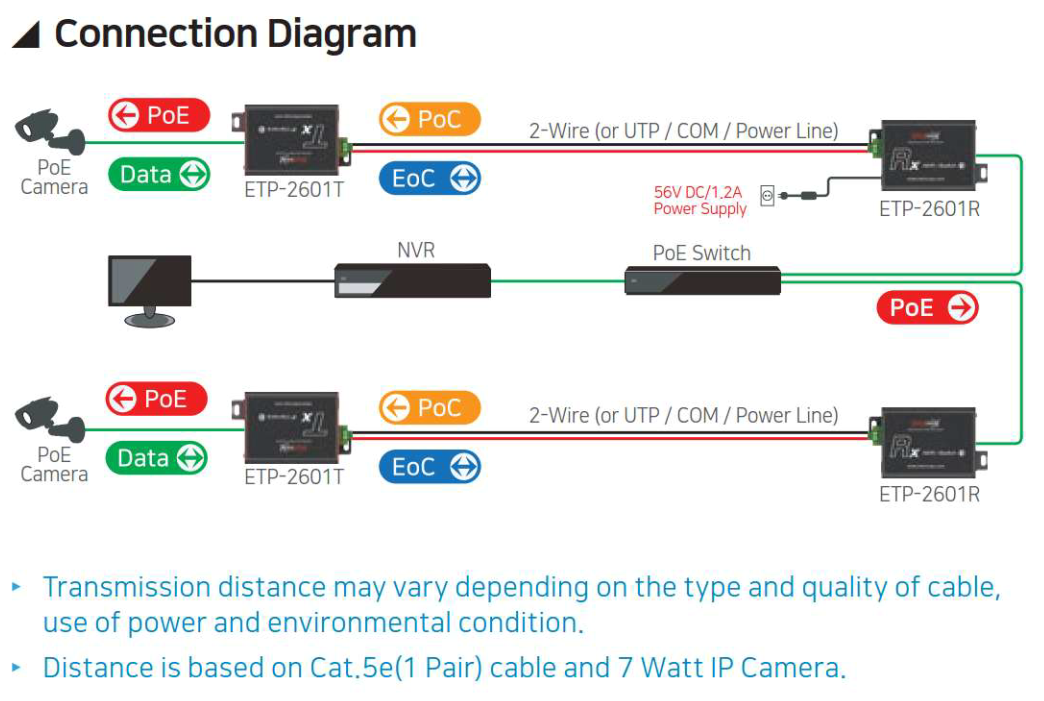

The Mobotix Media Converter Set Ethernet Mx-A-ETP1A-2601-SET consists of a transmitter (Tx) and a receiver (Rx) enabling users to implement an Ethernet transmission link via a two-wire line.
This is a cost-effective and time-saving solution to migrate existing analogue systems to IP based systems as the Mx-A-ETP1A-2601-SET supports easy installation utilising the existing cable.
With the long-distance transmission feature, the device overcomes the usual 100m distance limitation easily and reduces construction costs significantly compared with fibre-optic configuration.
Other Features:
- Connected end devices are supplied via PoE switch IEEE802.3af (PoE), IEEE802.3at (PoE+), UPoE up to 60W (requires ext. power supply).
- Status LED (data, power supply, data link, PoE)
- Integrated overvoltage protection (IEC 61000-4-5 4kV (1.2 / 50us), 2kA (8 / 20us))
- Supply voltage: Tx: T-Linx or DC12V~57V; Rx: PoE Switch or DC48V~57V
- Operating temperature: -20 to +60 °C

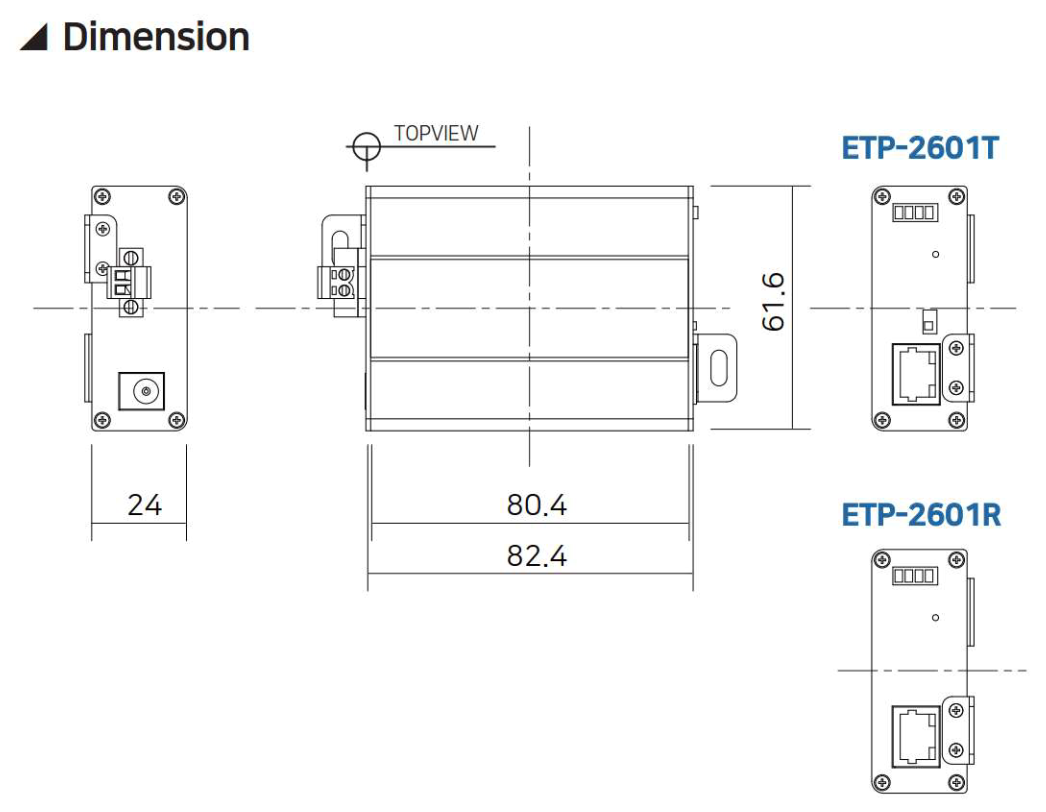

- Dimensions Rx/Tx (LxWxH): 80.4 x 61.6 x 24.0 mm
- Weight Rx/Tx: 102g each
- Warranty: 2 years
