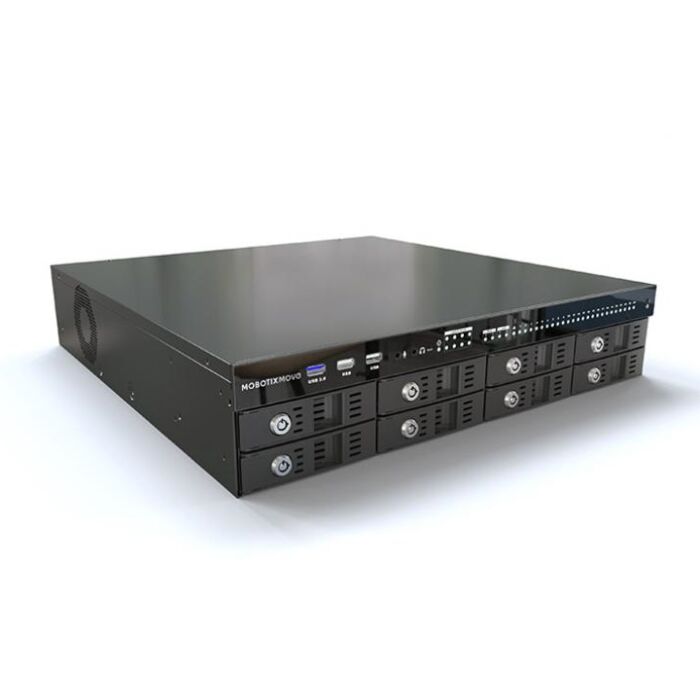

Mobotix Move MX-S-NVR1A-64-PoE24 64 Channel Network Video Recorder
SKU: MX-S-NVR1A-64-PoE24
Available for delivery in 7~10 days
Key Features:
- 2MP Full HD up to 4K (12MP) IP camera support
- Support of Mobotix Move, IoT cameras, and 3rd-part cameras via ONVIF S protocol
- H.264/H.265 recording and playback
- Dual streaming, up to 64 channels of simultaneous real-time live, record, and playback
- Integrated PoE+ switch with 24 (802.3af/at) ports for Plug and Play Move camera integration
- Can handle an additional 40 Plug and Play Move cameras via an external switch
- Full HD local dual display/monitor output (HDMI/Display Port)
- 8 x HDD (Hot-swappable, RAID 0/1/5/10)
- Failover server support/Real-time backup with alternative firmware
- iOS & Android app support provides convenient mobile access to live and recorded video on the NVR
- Alarm I/O connectors (4 replay outputs, 4 signal inputs)
Please note: This product may have a 7 day lead time to fetch from the European warehouse.
Please check stock levels before purchase.
Details
The Mobotix Move MX-S-NVR1A-64-POE24 is part of the Move NVR plug and play series which has been specifically designed for use with the Mobotix Move IP camera series with powerful recording by deep integration protocols out-of-the-box.
This unit has an integrated 24-port PoE switch which allows 24 IP cameras to be directly connected to the network video recorder, without the need for additional power supplies. The MX-S-NVR1A-64-POE24 supports a further 40 plug and play Move IP cameras via external switches.
The web management interface allows users to monitor and configure PoE power consumption, network connection quality and control the PoE power support of ONVIF S-conformant 3rd-party cameras. The provides users with extensive flexibility in mixed camera environments.
Designed for large scale applications the MX-S-NVR1A-64-POE24 is the first network video recorder of its kind created by Mobotix. The NVR supports ONVIF profiles S, T and G, making it suitable for integrating into Mobotix Hub-based systems too. As well as this the unit offers enhanced RAID functionality (0/1/2/5/10), enabling improved system stability. The device can also be operated as a failover recorder/backup function which can be set up via an alternative firmware upload.

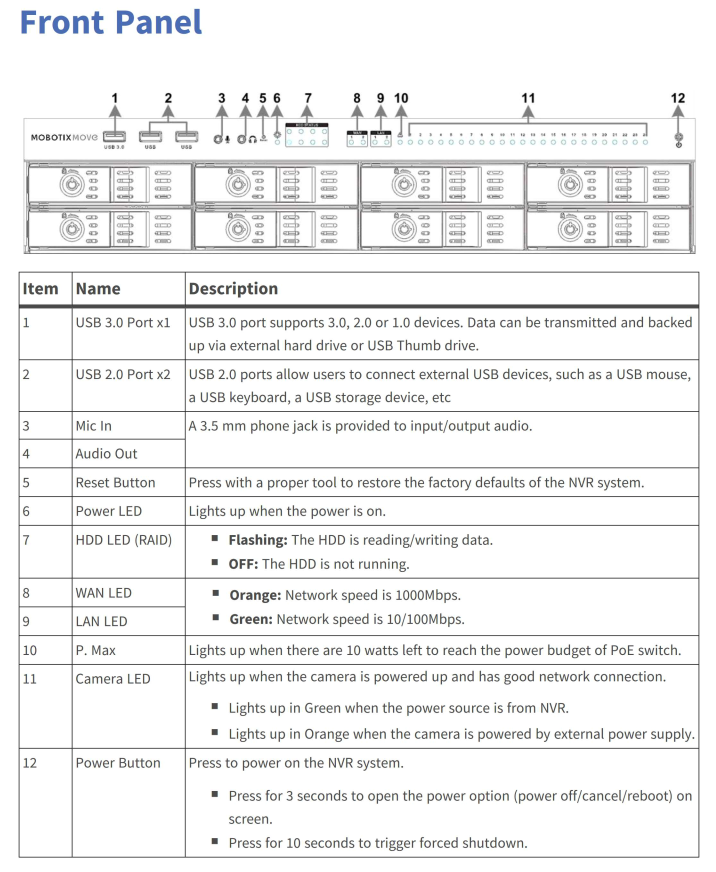

The NVR has 8 x hard disk drive bays conveniently located at the front of the unit for ease of use. Exchanging hard drives could not be easier.
MX-S-NVR1A-64-POE24 Network Video Recorder Benefits:
- Plug and Play: Connect cameras and monitor to the Mobotix Move NVR and directly see live images
- Everyday use does not require any specialised video knowledge
- Direct connection of up to two high-resolution displays, keyboard, mouse and joystick
- Once installed, the Mobotix Move NVR system does not incur any further costs
- Local standalone video systems are safe from cyber attacks
| Model | Max. Power Consumption |
| MX-BC1A-2-IR | 5.6W |
| MX-BC1A-4-IR | 13.68W |
| MX-VB3A-2-IR-VA | 14W |
| MX-VB2A-2-IR-VA | 13W |
| MX-VB2A-5-IR-VA | 14W |
| MX-VB1A-5-IR-VA | 13W |
| MX-SD1A-330 | 25.4W |
| MX-SD1A-340-IR | 44W |
| MX-VD1A-2-IR | 12.25W |
| MX-VD1A-4-IR | 13.68W |
| MX-VD2A-2-IR | 7.5W |
| MX-VD2A-2-IR-VA | 13W |
| MX-VD1A-5-IR-VA | 13W |
| MX-VD1A-8-IR-VA | 13W |
| MX-VD3A-2-IR-VA | 14W |
| MX-VH1A-12-IR-VA | 12.95W |
