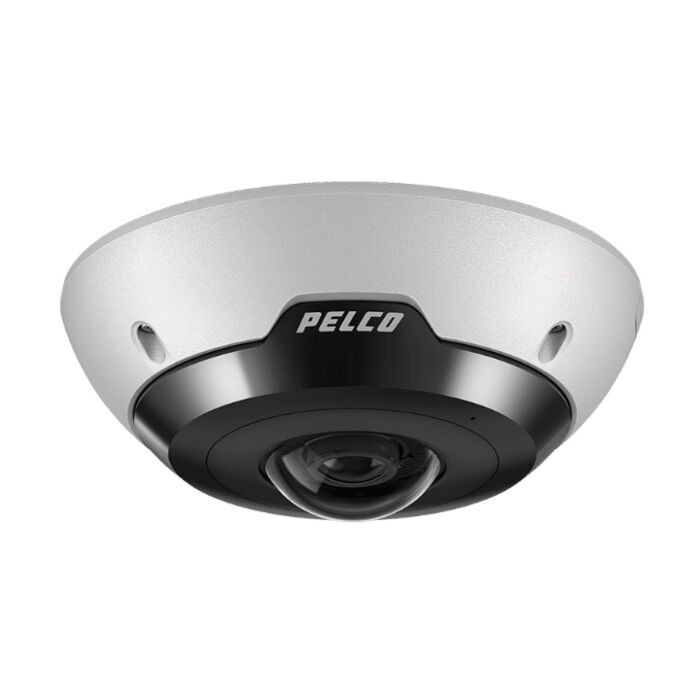

Pelco IMF122-1ERS 12MP Surface-Mount IR Fisheye Camera
SKU: IMF122-1ERS
Contact Us for Stock Levels
Key features:
- 12MP (3008x3008 Max. Image Resolution)
- 360° Panoramic Field of View
- Pelco Smart Analytics
- Adaptive IR Technology
- SureVision Technology (for excellent low-light range) and True WDR (Wide Dynamic Range)
- Pelco Smart Compression Technology
- Low-Profile, Discreet design
- Easy to Install (with Surface Mounting options)
- Fit for Outdoor Application - IP67 Type 4X (water resistant)
- Vandal Resistant - IK10
- Audio Recording capability, and Built-in Microphone
- Support for 2 MicroSD Cards
- ONVIF (Profile S, G, and T) Compliant
- NDAA Compliant
- 5 Year Warranty
This product can be powered by 12V DC or PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Pelco Fisheye Installation Manual
Pelco Fisheye Operations Manual
Designing a Site with Pelco Smart Analytics
Please note: this product may not be immediately avaliable from UK stock. Please contact us before purchasing.
Details
The IMF122-1ERS is a panoramic, 12MP Fisheye camera from Pelco, designed for surface-mount installation.
With a low-profile design, and a 360° FOV, the IMF122-1ERS is an ideal choice for users in need of discreet and wide-reaching surveillance, free from blind spots.
Capable of covering multiple views from a single vantage point, the IMF122-1ERS also offers a surveillance system solution thats easy to install, and to maintain (freeing users from the need for multiple cameras to cover one area), ultimately lowering overall installation and maintenance costs.
Outdoor Application, IR Illumination and WDR Technology:
With its IK10 (for vandal resistance) and IP67 (for water resistance) rated design, the IMF122-1ERS is equipped for use in outdoor applications, and is capable of offering impressive image quality in areas of low-light (or other challenging lighting situations) - achieved with its use of WDR (Wide dynamic range - allowing it to capture details and maximise image quality in scenes with both very bright and very dark areas) and adaptive IR Illumination.
Pelco Smart Analytics:
The IMF122-1ERS also offers users a wide range of Video surveillance Features, with Built-in Pelco Smart Analytics, designed to offer higher accuracy, detection/classification of people, object detection, and more.
The selection of supported Smart Analytics includes:
| Analytic Event | How Event is Triggered |
|
- Objects in Area |
When a selected object type is detected and seen moving into a defined area of interest. |
|
- Objects Loitering |
When a selected object type is detected in a defined area of interest, and stays for an extended period of time. |
|
- Objects Crossing Beam |
When a specified number of objects have crossed the pre-configured directional beam (set over the camera's field of view) |
|
- Object Appears or Enters Area |
Triggered by each object that enters the set area of interest (this can be used to count objects - like people - to keep track of how many are in a certain area) |
|
- Object Not Present in Area |
Triggers an event when NO objects can be detected in a defined area (can be used to keep track of high-value objects - keep them from beign stolen) |
|
- Objects Enter/Leave Area |
When a specified number of objects have been detected entering/leaving a defined area of interest. |
|
- Object Stops in Area |
Triggers an event when an object has stopped moving within the defined area of interest for/over a specified threshold of time. |
|
- Direction Violated |
When an object is detected, moving in the prohibited direction of travel |
Users should note: Pelco Fisheye cameras only detect people as classified objects (vehicles will not be detected), and have an analytic blindspot in the center 20% of their FOV (objects will be detected moving in and out of the blindspot, but not within it)
Installation Examples:
Pelco Fisheye cameras can be used in a variety of installations, and can help to achieve full area coverage with less installation (a more cost effective than most security setups). Their discreet, panoramic design makes them a perfect choice for use in environments like schools, retailers, commercial buildings, casinos, hotels, airports and train platforms, where users can take advantage of the Fisheye's high-resolution and capabilities to better secure areas.
Dimensions:

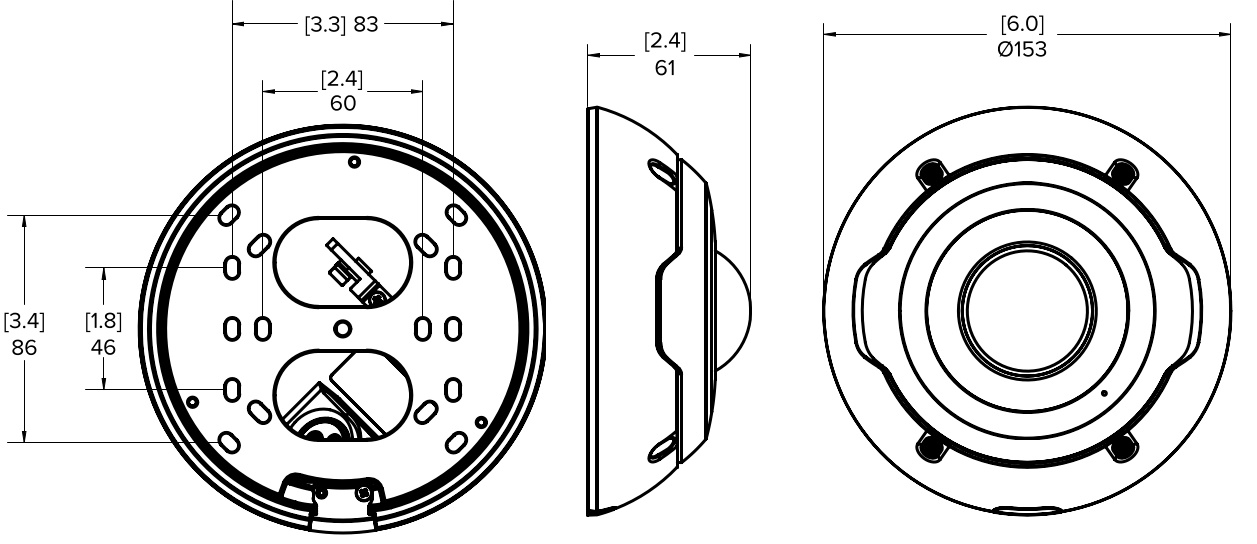

With Mounting Plate

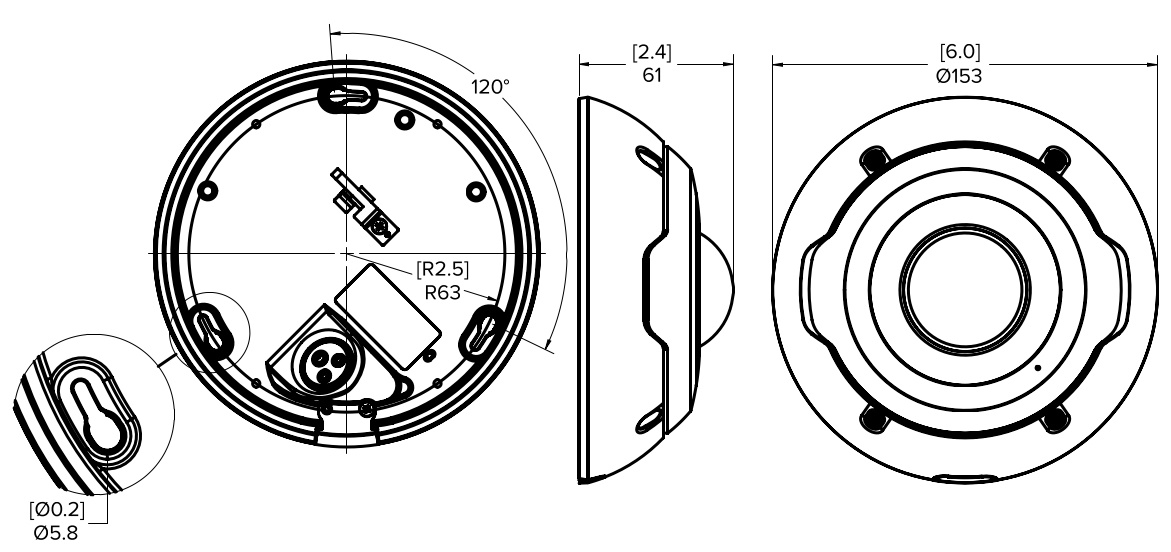

Without Mounting Plate
