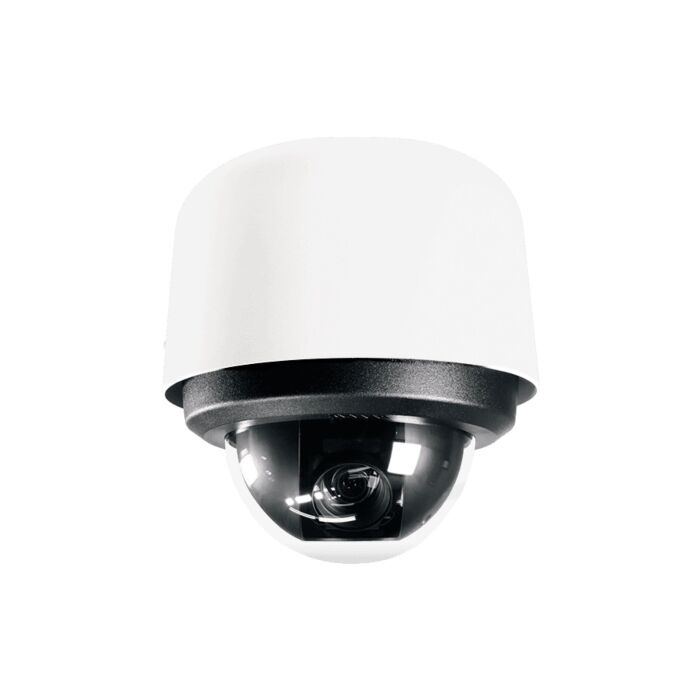

Pelco Spectra S7818L-EW 4K (8MP) 20X Pendant Dome PTZ Camera
SKU: S7818L-EW
Contact Us for Stock Levels
Key features:
- 4K Image Resolution (3840x2160) at 60 fps
- 20X Optical zoom, and 12X Digital zoom
- Lens Focal Length - 6.36mm (wide) ~ 138.5mm (tele)
- Designed with SureVision Technology - Includes; 130dB WDR, Advanced low light performance, Anti-bloom, 3D noise filtering, and, Enhanced tone mapping
- Features robust Image Stabalisation (EIS) with Gyro
- Built-in Pelco Enhanced Analytics suite
- H.264 and H.265 Pelco Smart Compression technology
- Includes use of 3 Automatic Defog options
- Vandal Resistant IK10, and Weather Resistant IP66/67 - Avaliable as a Clear or Smoked bubble dome
- Built with SD Card Slot with support for SDXC cards
- ONVIF (Profile S, G, M, and T) Compliant
- NDAA Compliant
- 3 Year Warranty, and Support
This product can be powered by 24V AC, 48V DC or PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Pelco Spectra Enhanced 7 Series Domes Installation Manual
Pelco Spectra Enhanced 7 Series Domes Operations Manual
Please note: this product may not be immediately avaliable from UK stock. Please contact us before purchasing.
Details
The S7818L series are Pelco's range of 4K Spectra Enhanced 7 PTZ cameras, with 20X zoom, and avaliable in a selection of design types (includes black or white pendants, and, indoor or outdoor in-ceiling models)
The S7818L-EW (avaliable with smoked bubble -EW0, or clear bubble -EW1) is a white finish, aluminium construction, pendant PTZ dome. Fit for outdoor application, its design is also IK10 and IP66/67 rated (for vandal and weather resistance) and features a heater, blower, and sunshield.
Pelco's Spectra Enhnaced PTZ cameras are designed to provide impressive image quality, performance, and intelligent embedded features, offering users a well equipped Pan, Tilt, and Zoom Camera solution, ideal for any Pelco surveillance system.
Main Features
Impressive Image Quality and SureVision Technology
Designed to keep image quality at its best, regardless of the weather or lighting conditions, Spectra PTZ cameras include SureVision technology, including; Advanced Low Light performance (down to 0.0125 lux (colour) and 0.0085 lux (mono) for the S7818L-EW), Anti-bloom, 3D noise filtering, and Enhanced tone mapping.
These features are further enhnaced with the inclusion of 130dB WDR (Wide Dynamic Range - used to keep images clear and detailed even in areas of very bright or dim light) and Image Stabalisation (EIS - used to keep images clear in high-vibration environments), keeping your surveillance system working to the best of its ability at all times.
Spectra PTZs also allow for 3 levels of Image Defog, to enhance image quality on foggy/rainy days, and 5 White Balance modes, to help overcome challenging lighting conditions day and night.
Software Features
The following is a list of the S7818L-EW PTZs other key features and specs:
- PTZ Specs - 360° continuous Pan rotation (speed - up to 700° per second), and, +1° ~ -90° vertical Tilt (speed - up to 500° per second)
- Includes support for 256 presets, with +0.05° preset accuracy
- Up to 8 configurable scans, and 8 recordable patterns (up to 5 minutes each)
- Multilingual menus - supports English, Spanish, Portuguese, Italian, German, French, Russian, Turkish, Simplified Chinese, and Korean
- Password protection, and support for unlimited users
- "Auto Flip" feature - allows for the rotation of dome 180° at bottom of tilt travel
VMS Integration
To offer users the most intuitive, and well equipped video surveillance solution possible, the Spectra Enhanced series cameras are also designed for easy connection to Pelco VideoXpert - for more information on Pelco Vx and Camera licences please see the linked product page, here.
Analytics Suite
The S7818L-EW offers the use of an impressive selection of video surveillance analytics, with support for Pelco's Enhanced Analytic suite. This includes the use of 2 Basic and 8 Enhanced user-configurable behaviors, designed to further the user's video surveillance experiance.
Spectra Enhanced cameras are capable of running up to 2 Enhanced and 2 Basic behaviors together at one time.
The supported Analytics include:
Camera Sabotage (Basic) - Detects contrast changes within the camera's field of view, triggering an alarm if the lens becomes obstructed by spray paint, a cloth, or lens cap. An alarm is also triggered by any unauthorised camera re-positioning.
Region Based, Simple Motion Detection (Basic) - Based on sensitivity, this allows the camera to determine if sufficient motion is detected in a defined region.
Abandoned Object (Enhanced) - Detects objects placed within a defined zone, triggering an alarm if one remains in a zone longer than the user-defined time allows. Examples - Can be used to detect suspicious items left in an airport terminal, or to detect objects left behind at an ATM, signaling possible card skimming.
Adaptive Motion Detection (Enhanced) - Detects and tracks objects as they enter a scene, triggering an alarm if one enters a user-defined zone. Example - Can be used in outdoor environments with light traffic, as it helps to reduce the amount of false alarms triggered by environmental changes.
AutoTracker (Enhanced) - Detects and tracks movement within the camera's field of view. Once the AutoTracker has been configured, the system automatically pans and tilts to follow a detected / specified moving object, until it stops or leaves the monitored area.
Directional Motion (Enhanced) - Generates an alarm when a detected object moves in a specified direction, within an area of high traffic. Examples - Can be used to detect objects moving against the usual flow of traffic, or if an individual enters through an exit door.
Loitering Detection (Enhanced) - Identifies when people or vehicles remain in a specified zone for longer than the user-defined time allows. This is effective in the monitioring and real-time notification of suspicious behavior.
Object Counting (Enhanced) - Counts the number of objects that enter a defined zone (Please Note: this behavior is based on tracking, so can not be used to count people in a crowded setting) Example - Can be used to count the number of people at an enterance/exit or inside the monitored location.
Object Removal (Enhanced) - Triggers an alarm if an object is removed from a user-defined zone. This is ideal for detecting the removal of high value objects. Example - Can be used to alert security is a painting is removed from a wall, or statue from its pedestal.
Stopped Vehicle (Enhanced) - Detects vehicles stopped near sensitive locations for longer than the user-defined time allows. Examples - Can be used to monitor curbside drop-offs, suspicious parking, traffic lane breakdowns, or for parking enforcement.

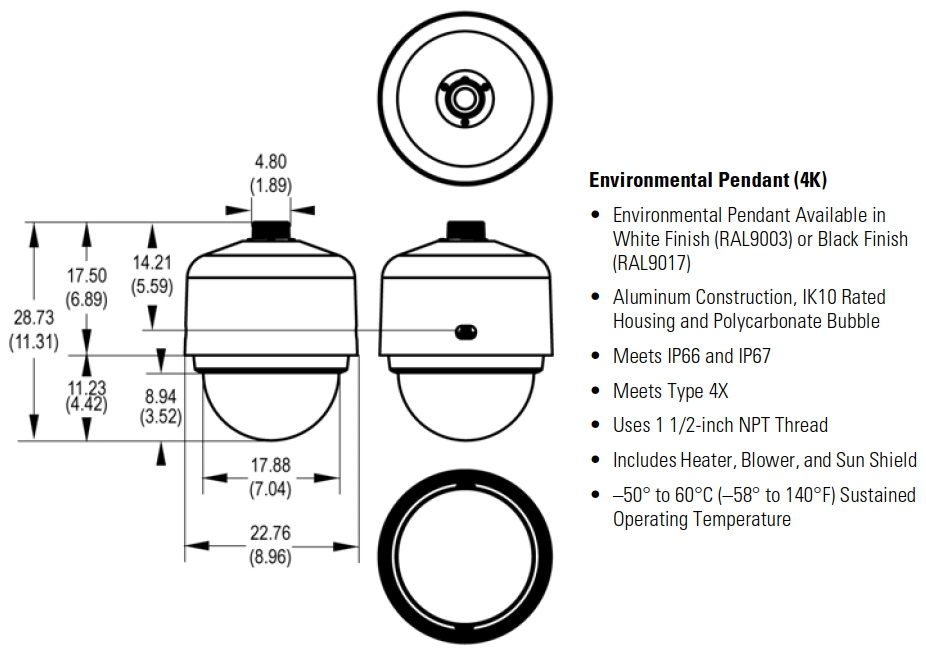

Dimensions:
