Pelco SMLE1-20V5-4H 4x5MP Up to 360° Multi-Directional Camera
SKU: SMLE1-20V5-4H
Contact Us for Stock Levels
Key features:
- 4MP Resolution, with x5 Image Sensors
- Multi-Directional design, for Wide Area Coverage
- Covers up to 360°
- Active Pixels - 2592x1944 (4:3) | Max. Resolution (per image sensor) - 7776x1944 (4:3)
- 2 Image Rate modes | Full Feature mode - 24 / 25 fps | High Framerate mode - 24 / 25 fps
- Lens - 3.3 ~ 5.7mm - Fixed Iris control, with remote focus and zoom
- Lens Aperture - F1.5 - F1.9
- Tilt - 7° ~ 96° | Pan - +/-120° | Azimuth - +/-180°
- IR Illumination - Up to 30m (requires the optional IR Illumination ring)
- 120dB WDR (Wide Dynamic Range) with Dual Exposure
- 3D Noise Reduction Filter
- SureVision Technology - for impressive Low Light performance
- Vandal and Weather Resistant - IK10, IP66 (Please Note, this does not apply to the In-Ceiling mount option)
- ONVIF (Profile S, G, and T) and NDAA Compliant
- 5 Year Warranty

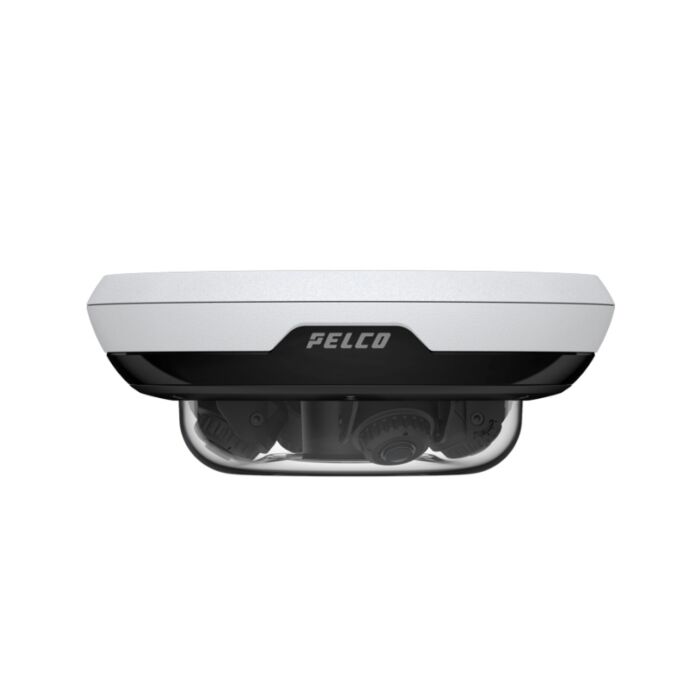

Please Note: Sarix Multi Enhanced Cameras are available for use in 4 Mounting Options - Surface, In-Ceiling, Pendant NPT, and Pendant Wall
The Product images depict each of these Mounting Scenarios in this order.
For more information on the Mounting Options for Multi-Pro Camera Models please see the 'Details' section of this page.
Pelco Sarix Multi Enhanced Series Installation Manual
Pelco Sarix Multi Enhanced Series Operations Manual
Pelco Sarix Multi Enhanced Series Order Guide
Pelco Sarix Multi Enhanced Series Factsheet
Please note: this product may not be immediately available from UK stock. Please contact us before purchasing.
This product can be powered by 24V AC, 24V DC or PoE+. We recommend using PoE.
Please note: this product does not come with a power supply.
Details
As a part of Pelco's Sarix Multi Enhanced series of cameras, the SMLE1-20V5-4H offers a 4 Image sensor, Multi-directional design, capable of covering up to 360° to allow for ultra-wide area coverage.
Designed with efficiency, cost, and effective coverage in mind, the application of a single Multi-directional camera replaces the need for multiple expensive IP cameras to cover a single area. This saves on installation time and costs, as well as system efficiency, allowing users to focus on a single camera instead of connecting 3 or 4 to achieve the same result.
Key Features
Along with its Multi-directional design, the SMLE1-20V5-4H offers a selection of impressive features key to the Sarix Multi Enhanced camera experience. These include:
Easy Integration with VMS brands - through its compliance with ONVIF profiles S, T, G, and M
Efficient Bandwidth Management - supports the use of H.264 and H.265 smart compression
Equipped for Indoor or Outdoor application - depends on mounting option (in-ceiling is for indoor installation only, surface and pendent are fit for outdoor)
Weather and Vandal resistant (surface and pendent mount only) - offers protection against water, dust and corrosion with IP66/67, and vandal damage with IK10 impact rating. It is also equipped for outdoor temperatures, working effectively between -40°c and +60°c
Impressive Low Light performance and Image Quality - equipped with 120dB WDR with dual exposure (for improved visibility in areas of harsh bright or dark lighting conditions), 3DNR (3D noise reduction filter), Surevision technology, and optional IR Illumination (requires an IR illumination ring)
Image Sensors / Lens Specs
Each sensor offers 5MP image resolution, a 3.3 ~ 5.7mm varifocal lens, and pan / tilt functionality, allowing for impressive manoeuvrability and scene surveillance, with 20MP total resolution.
Pan/Tilt/Azimuth functionality specs - +/-120° pan, 7° ~ 96° tilt (from horizon), +/-180° azimuth
Horizontal field of view (based on Aspect Ratio) - 53° ~ 97° (16:9), 53° ~ 99° (4:3)
Lens specs - F1.5 - F1.9 aperture range, Fixed iris control, with Remote focus and zoom
Supported Analytics / Events
Classified Object types - Person (supported in indoor and outdoor mode) and Vehicle (outdoor mode only), with sub-types; Car, Truck, Bicycle, Motorcycle, and Bus
Object in Area - Triggered when the selected object type moves into the configured region of interest
Object Loitering - Triggered when the selected object type moves into the region of interest and remains for an extended period of time
Objects Crossing Beam - Triggers an event once the specified number of objects have crossed the 'directional beam' (configured over the cameras FOV - the beam can be unidirectional or bidirectional)
Object Appears or Enters area - Triggered by each object that enters the region of interest (this event can be used as a way to count objects)
Object Not Present in Area - Triggers an event when there are no objects present in the region of interest
Objects Enter Area / Leave Area - Triggers an event once the specified number of objects have entered / left the region of interest
Object Stops in Area - Triggered when an object moves into the region of interest and stops moving for a specified amount of time
Object Too Close - Triggered when an object moves within a certain threshold distance of another object
Direction Violated - Triggers when an object is detected moving in the prohibited direction of travel
Sabotage Detection - Triggers an event when unexpected scene changes are detected (such as, the unauthorised movement of the camera, or if the lens becomes obstructed by pain of cloth)
Mounting Scenarios
The Sarix Multi Enhanced series offers a variety of mounting options; Surface Mount, In-Ceiling Mount, Pendent NPT, and Pendent Wall Mount. All of the series' available camera models can be used in any of these mounting scenarios, with the additional required parts.
Required Mounts - More information on these items can be found on this page under 'Related Products'
