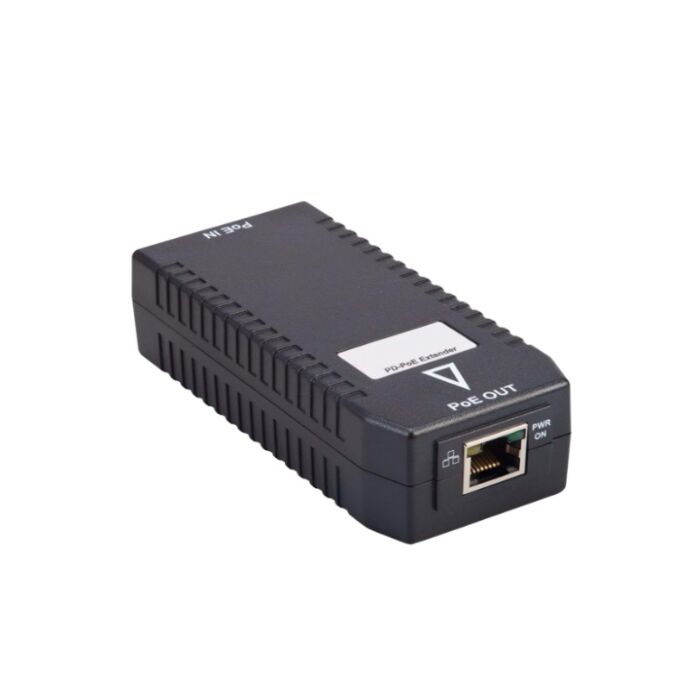

Pelco POE130-XT Single Port 30W PoE Extender
SKU: POE130-XT
Contact Us for Stock Levels
Key features:
- Extends PoE Installation by an additional 100m
- DC Input Voltage range - 46V DC to 57V DC
- DC Output Voltage range - 44V DC to 55V DC
- Supports 10/100/1000 Mbps Data rates
- 802.3af Power Levels (when powered by any 802.3at source)
- 802.3at Power Levels (when powered by PD-9601G/AC midspans)
- Cost effective - has no need for Local Power
- Plug and Play Installation - no configuration necessary
- Input/Output connectors - RJ-45
- Fully compliant 25K Signature Resistance detection (IEEE802.3at and IEEE802.3af)
- Boost Circuit - compensates for Wire drops
- Extends Ethernet up to 400m (with cascaded PoE Extender)
The Pelco POE130-XT is fit for use with select Pelco cameras
A list of the compatible cameras for this product can be found below in the 'Details' section or under 'Related Products'
Please note: this product may not be immediately avaliable from UK stock
Please contact us before purchasing.
Details
The POE130-XT is a single-port PoE (Power over Ethernet) Gigabit extender, designed to assist with demanding data rates and IP Camera power requirements.
Users will be able to extend their PoE installation by 100m, and can repeat Ethernet up to 200m
Indicators/Functions:
| Power LEDs - Colour/Status | PoE Input/Output Status |
| Green ON | Input and Output power enabled |
| Green OFF | Input and Output power disabled |
| Network LEDs Colour/Status | Network Input/Output Status |
| Orange ON | Network connection |
| Orange OFF | No network connection |
| Orange Blinks, 12 Hz rate | 10/100/1000 Mbps communication data rate |
Other Features:
- RoHS compliant
- Operating Temperature - 0°c ~ 50°c (at Megabit data rates - 10 Mb to 100Mb) or 0°c ~ 40°c (at Gigabit data rates)
- Storage Temperature - -20°c ~ +70°c
Supported Pelco Cameras:
Sarix Enhanced 3 series Box Cameras - IXE53 and IXE83
Pelco Fisheye Camera - IMF82-1ERS
Sarix Value series Dome, Bullet and Turret Cameras - IMV529-1ERS, IJV522-1ERS, IBV529-1ER, ITV529-1ERS, and IFV523-1ERS

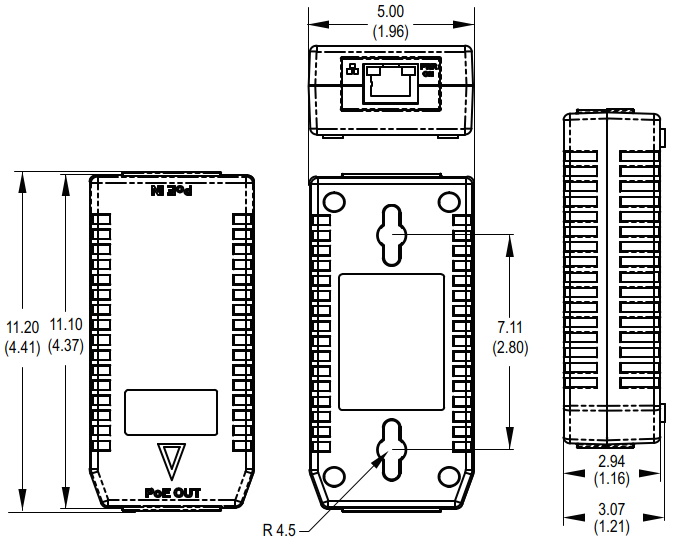

Dimensions:
