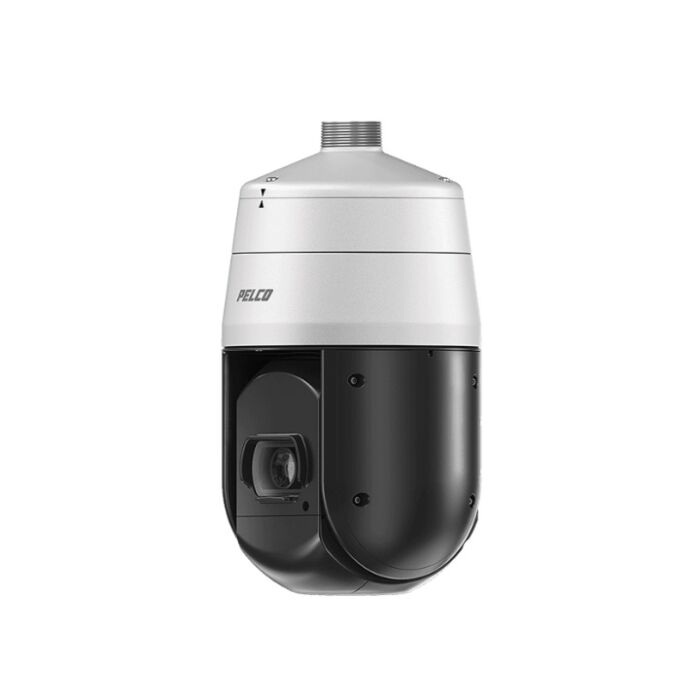

Pelco Spectra S7230L-PW 2MP 30X PTZ Camera
SKU: S7230L-PW
Contact Us for Stock Levels
Key features:
- 2MP Image Resolution (1920 x 1080) at 60 fps
- 30X Optical zoom, and 12X Digital zoom
- Integrated Varizoom IR (up to 200m) - for clear images in total darkness
- SureVision Technology, with Anti-Bloom
- Look-up Tilt Range - +30° (see above the horizon)
- Up to 130dB WDR (Wide Dynamic Range)
- Advanced Low-light - 0.035 lux (colour) 0.0195 lux (mono)
- Horizontal FOV - 59.8° (wide) ~ 2.3° (tele)
- Robust Image Stabalisation
- Pelco Advanced Analytics
- Water Resistant (IP67) and Vandal Resistant (IK10)
- NEMA 4X rated enclosure - Windblown dust, Water and Corrosion resistant
- ONVIF (Profile S, G, M, and T) Compliant
- NDAA Compliant
- 5 Year Warranty
This product can be powered by 24V AC, 48V DC or PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Pelco Spectra Enhanced 7 PTZ Installation Manual
Pelco Spectra Enhanced 7 PTZ Operations Manual
Please note: this product may not be immediately avaliable from UK stock. Please contact us before purchasing.
Details
Offering 2MP (1920 x 1080) image resolution, up to 60 fps, and 30x zoom, Pelco's S7230L-PW PTZ Camera is ideal for any user in need of an NDAA compliant Pan, Tilt, and Zoom Camera Solution.
As a part of Pelco's Enhanced 7 IR Lookup PTZ series, the S7230L-PW features a selection of Advanced Analytics, a range of Software Features, and Top of the Line IP performance - with a Lookup tilt range (+30°) to see above the horizon, IK10 vandal resistance, IP67 weather resistance, Robust EIS (electronic image stabalisation), Integrated Varizoom, up to 130dB WDR (wide dynamic range) and IR Illumination (up to 200m). All built-in to provide the best performance and image quality possible.
Software Features
Users should also be aware of the Enhanced 7 PTZ Camera's selection of software features, which includes; 256 presets, 32 tours, 8 configurable scans, 8 recordable patterns (up to 5 minutes each), multilingual menus, password protection, 'Auto Flip' (to rotate dome by 180° at the end of tilt travel), proportional pan/tilt, image defog modes, and Laser-enhanced focus.
With all of these built-in features the S7230L-PW works to make your security system as effective as possible, offering users a range of ways to enhance surveillance performance, security and ease of use.
Pelco Advanced Analytics
The selection of analytics included in the S7240L-PW are made up of 2 basic and 8 enhanced user-configurable behaviors, with the camera being capable of running up to 2 enhanced and 2 basic behaviors together at one time.
Users can create several custom profiles for each behavior, each containing different camera settings, allowing for the automatic detection and triggering of alarms for specific activity.
Supported Analytic Behaviors include:
Camera Sbotage (Basic) - Detects contrast changes within the camera's field of view, triggering an alarm if the lens becomes obstructed by spray paint, a cloth, or lens cap. An alarm is also triggered by any unauthorised camera re-positioning.
Region Based, Simple Motion Detection (Basic) - Based on sensitivity, this allows the camera to determine if sufficient motion is detected in a defined region.
Abandoned Object (Enhanced) - Detects objects placed within a defined zone, triggering an alarm if one remains in a zone longer than the user-defined time allows. Examples - Can be used to detect suspicious items left in an airport terminal, or to detect objects left behind at an ATM, signaling possible card skimming.
Adaptive Motion Detection (Enhanced) - Detects and tracks objects as they enter a scene, triggering an alarm if one enters a user-defined zone. Example - Can be used in outdoor environments with light traffic, as it helps to reduce the amount of false alarms triggered by environmental changes.
AutoTracker (Enhanced) - Detects and tracks movement within the camera's field of view. Once the AutoTracker has been configured, the system automatically pans and tilts to follow a detected / specified moving object, until it stops or leaves the monitored area.
Directional Motion (Enhanced) - Generates an alarm when a detected object moves in a specified direction, within an area of high traffic. Examples - Can be used to detect objects moving against the usual flow of traffic, or if an individual enters through an exit door.
Loitering Detection (Enhanced) - Identifies when people or vehicles remain in a specified zone for longer than the user-defined time allows. This is effective in the monitioring and real-time notification of suspicious behavior.
Object Counting (Enhanced) - Counts the number of objects that enter a defined zone (Please Note: this behavior is based on tracking, so can not be used to count people in a crowded setting) Example - Can be used to count the number of people at an enterance/exit or inside the monitored location.
Object Removal (Enhanced) - Triggers an alarm if an object is removed from a user-defined zone. This is ideal for detecting the removal of high value objects. Example - Can be used to alert security is a painting is removed from a wall, or statue from its pedestal.
Stopped Vehicle (Enhanced) - Detects vehicles stopped near sensitive locations for longer than the user-defined time allows. Examples - Can be used to monitor curbside drop-offs, suspicious parking, traffic lane breakdowns, or for parking enforcement.
Design Overview:

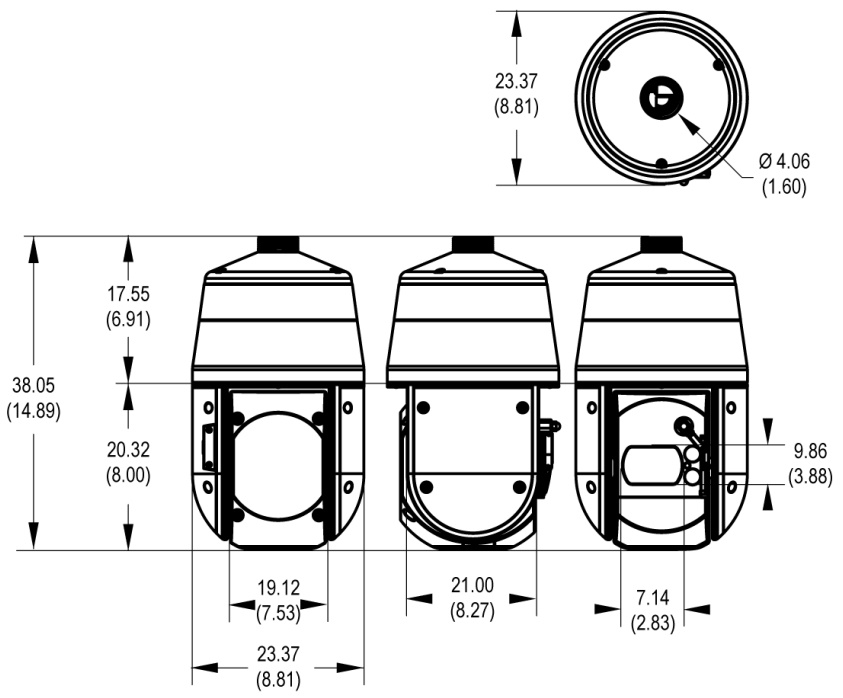

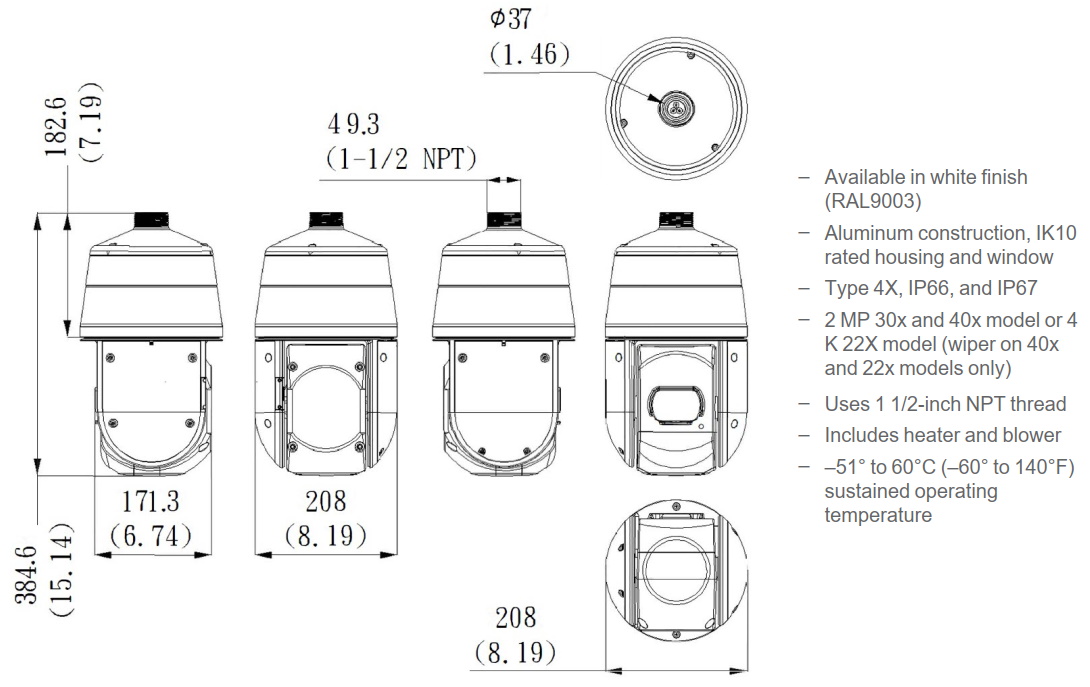

Dimensions:
