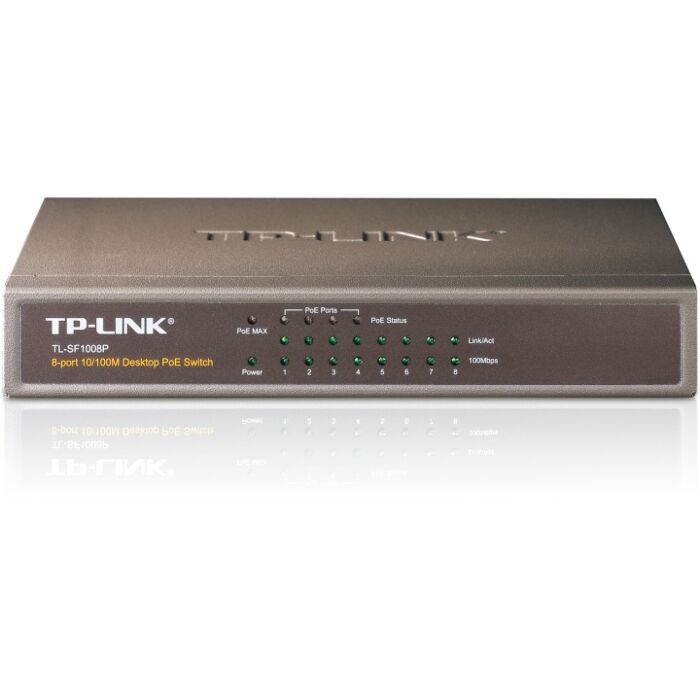

TP-LINK TL-SF1008P 8 Port 10/100M Desktop PoE Switch
SKU: TL-SF1008P
In stock
Key Features:
- Complies with IEEE802.3, IEEE802.3u, IEEE802.3af standards
- 1K entry MAC address table of the TL-SF1008P with auto-learning and auto-aging
- 8 10/100Mbps auto-negotiation RJ45 ports with 4-port PoE function, all of them support auto MDI/MDIX
- Supports PoE power up to 15.4W for each PoE port
- Supports PoE power up to 53W for all PoE ports
- Supports PoE IEEE802.3af compliant PDs
- Supports IEEE802.3x flow control for full-duplex mode and backpressure for half-duplex mode
- Supports priority function to protect the system when the system power is overloaded
- LED indicators for monitoring power, link, activity, and speed
- External power adapter supply
TP-LINK TL-SF1008P User Guide
TP-LINK TL-SF1008P Installation Guide
Details
The TP-LINK TL-SF1008P is an 8 10/100M port unmanaged switch that requires no configuration and provides 4 PoE ports. The unit can automatically detect and supply power to IEEE802.3af compliant Powered Devices (PDs). Electrical power is transmitted along with data through one single cable which enables users to expand their network to areas where there are no power lines or outlets to fix devices such as APs, IP Cameras or IP Phones.
Power over Ethernet:
- Ports 1-4 support PoE
- Priority function to protect the system when the power is overloaded
- If the power consumption is above 57W priority will be arranged among the PoE ports, the system will then cut off the power of the lowest-priority port
Easy to Use:
- Requires no configuration and installation
- Desktop design
- Outstanding performance and quality
Device Highlights:
- 4 PoE ports, transfers data and power on one single cable
- Working with IEEE802.3af compliant PDs, expands home and office network
- Supports PoE power up to 15.4W for each PoE port
- Supports PoE power up to 57W for all PoE ports
| Hardware Features | TL-SF1008P |
| Interface | 8 x 10/100Mbps RJ45 Ports (4 x PoE ports) AUTO Negotiation/AUTO MDI/MDIX |
| PoE Standard | 802.3af/at |
| PoE Ports | 4, up to 15.4W |
| PoE Power Budget | 57W |
| Power Supply | 100-240V AC |
| Max Power Consumption | 2.66W (220V no PD connected) 65.92W (220V with 57W PD connected) |
| Max Heat Dissipation | 9.08 BTU/hr (no PD connected) 224.92 BTU/hr (with 57W PD connected) |
| Dimensions | 171 x 98 x 27mm |
| Fan Quantity | Fanless |
