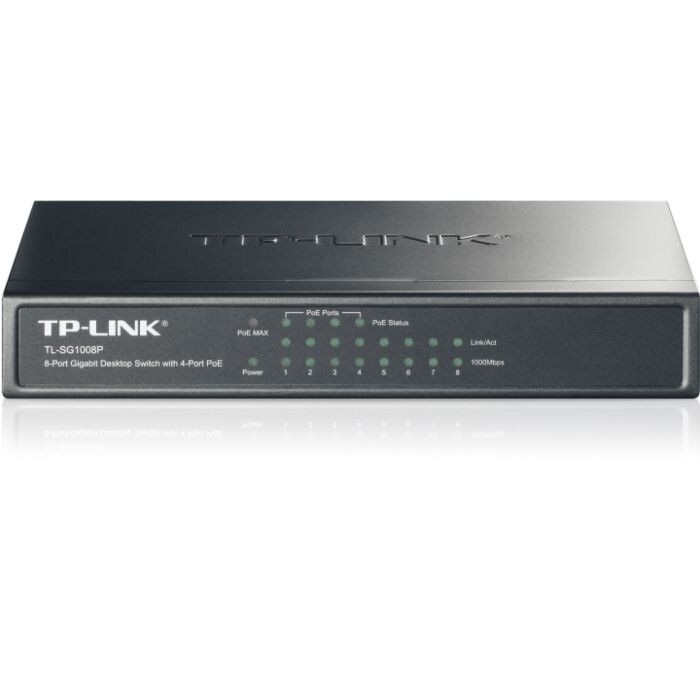

TP-Link TL-SG1008P 8-Port Gigabit Desktop Switch with 4 Port PoE
SKU: TL-SG1008P
In stock
Key Features:
- IEEE802.3af standard
- Supports PoE power up to 15.4W for each port
- Supports PoE power up to 53W for all PoE ports
- Supports priority function to protect the system when the system power is overloaded
- Auto-MDI/MDIX
- Auto-negotiation
- Store and forward
- IEEE 802.3x flow control for Full-duplex mode
- Back pressure for half duplex mode
- 8k Mac address auto-learning and auto-aging
- Plug and play design
- Fanless design
TP-Link TL-SG1008P User Guide
TP-Link TL-SG1008P Installation Guide
Details
The TP-Link TL-SG1008P is an 8 port unmanaged switch that requires no configuration and provides 4 PoE ports.
The TL-SG1008P supports up to 30W on each PoE port and the device has a total 64W PoE power budget for the 4 x PoE ports makes the device ideal for a wide range of applications such as surveillance for offices, dormitories, and small businesses.
Featuring intelligent power management when the total power consumption exceeds 64W the TL-SG1008P will cut the lower priority port power. This ensures the high-priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Gigabit Expansion Solution:
- 8 10/100/1000Mbps ports provide up to 16Gbps switching capacity
- 16KB jumbo frame improves performance of large data transfers
- IEEE802.3x flow control provides reliable data transfer
Highlight Performance:
- 802.1p and DSCP QoS ensures smooth traffic
- IGMP snooping optimises multicast applications
- Fanless design ensures quiet operation
Easy to Use:
- Just plug & play, no configuration is required
- Auto MDI/MDX eliminates the need for crossover cables
- Auto-negotiation intelligently adjusts for compatibility and optimal performance
Hardware Features | TL-SG1008P |
Interface | 8 x 10/100Mbps RJ45 Ports (4 x PoE ports) AUTO Negotiation/AUTO MDI/MDIX |
PoE Standard | 802.3af/at |
PoE Ports | 4, up to 15.4W |
PoE Power Budget | 64W |
Power Supply | 100-240V AC |
Max Power Consumption | 5.39W (220/50Hz no PD connected) 75W (220/50Hz with 57W PD connected) |
Max Heat Dissipation | 18.38 BTU/hr (no PD connected) 225.75 BTU/hr (with 64W PD connected) |
Dimensions | 171 x 98 x 27mm |
Fan Quantity | Fanless |
