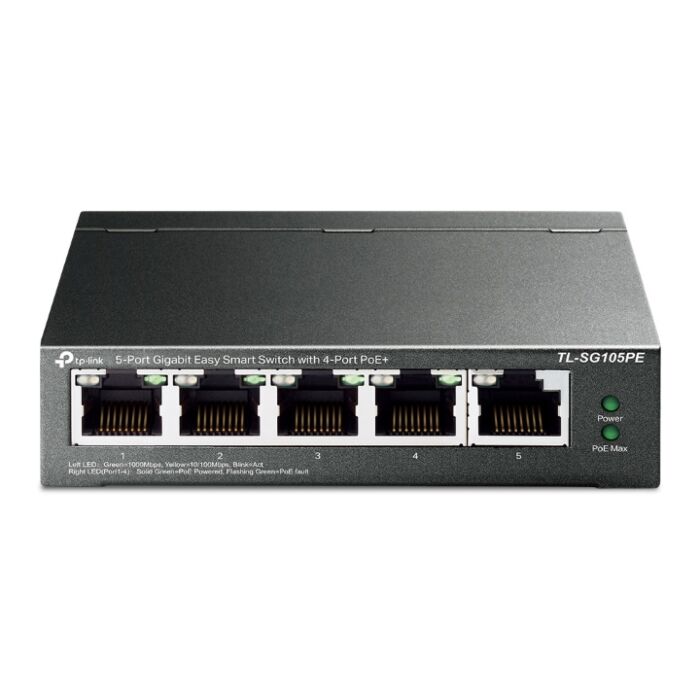

TP-Link TL-SG105PE 5-Port Gigabit Easy Smart PoE Switch with 4-Port PoE+
SKU: TL-SG105PE
Contact Us for Stock Levels
Key features:
- Five 10/100/1000Mbps RJ45 ports
- Equipped with four 802.3af/at PoE ports with up to 30W for each port, data and power can be transferred on one single cable
- Supports PoE power up to 65 W for all PoE ports
- Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
This product may not be immediately available from stock. Please contact us for a lead time before purchase.
Details
The TP-Link TL-SG105PE is a 5 Port Gigabit Easy Smart Switch with 4 PoE+ ports. This device has been specifically designed for use by small businesses that require simple network management and PoE function. The 4 PoE+ ports on this switch can power up to 4 PoE devices including, wireless access points (APs), IP cameras, and IP phones.
The TL-SG105PE has a range of useful features which include, network monitoring, traffic prioritisation, PoE Auto Recovery, and enhanced QoS. As well as this, the unit features port-based, tag-based, and MTU VLAN which can enhance security and meet more network segmentation requirements.
Power over Ethernet
- Ports 1-4 support Power over Ethernet function
- Automatically detect and supply power to IEEE 802.3af/at compliant powered devices
Overload Arrangement
- Priority function to help protect the system from overload
- If PoE PDs power consumption is over 65W, priority will be arranged among PoE ports
- Intelligent Power Management
Effective Management
- Network monitoring for users to observe traffic behaviour
- Port Mirroring, Loop Prevention, and Cable Diagnostics features identify and locate connection problems
- Port Priority, 802.1P Priority, and DSCP Priority
- MTU VLAN, port-based VLAN, and 802.1Q-based VLAN functions
- PoE Auto Recovery reboots dropped or unresponsive PoE-powered devices
Easy to Use
- Auto MDI/MDI-X crossover eliminates the need for crossover cables or uplink ports
- Auto-negotiation senses the link speed of a network device and intelligently adjusts for compatibility and optimal performance
- Compact size, ideal for desktops with limited space
- Dynamic LED lights provide real-time work status display and basic fault diagnosis
| Hardware Features | TL-SG105PE |
| Interface | 5 x 10/100/1000Mbps RJ45 Ports |
| PoE Standard | 802.3af/at |
| PoE Ports | Port 1-Port 4, up to 30W per port |
| PoE Power Budget | 65W |
| External Power Supply | output: 53.5V DC/1.31 A |
| Max Power Consumption | 4.52W (with no PD connected) 73.86W (with 65W PD connected) |
| Max Heat Dissipation | 15.41 BTU/hr (no PD connected) 251.83 BTU/hr (with 65W PD connected) |
| Dimensions | 499.8 x 98 x 25mm |
| Fan Quantity | Fanless |
