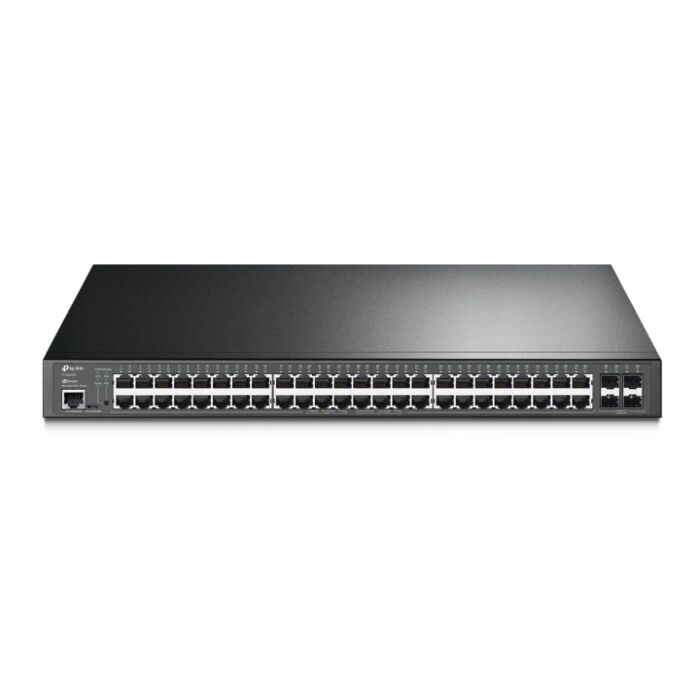

TP-Link TL-SG3452P JetStream 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+
SKU: TL-SG3452P
Contact Us for Stock Levels
Key Features:
- 384 W PoE Budget: 48× 802.3at/af-compliant PoE ports with a total power supply of 384 W
- Full Gigabit Ports: 48× gigabit RJ45 ports and 4× gigabit SFP Slots provide high-speed connections
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management
- Static Routing: Helps route internal traffic for more efficient use of network resources
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
This product may not be immediately available from stock. Please contact us for a lead time before purchase.
Details
The TL-SG3452P is one of TP-Link's JetStream L2/L2+ managed switches which provides high performance, powerful L2 and L2+ features such as static routing, enterprise-level QoS, advanced security strategies, and a bundle of ISP features.
The unit utilises and wide range of features which includes:
Networking Security:
This switch provides IP-MAC-Port Binding, Port Security, Storm control, and DHCP Snooping which protects the TL-SG3452P against broadcast storms, ARP attacks, etc. The Access Control Lists (ACL, L2 to L4) feature, restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, and even VLAN ID. As well as this the device supports 802.1X authentication, which is used in conjunction with a RADIUS/TACACS+ server to require some authentication information before access to the network is allowed.
Abundant L2 and L2+ Features:
The TL-SG3452P supports a complete lineup of L2 features including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flor Control function. Not only this but the switch provides advanced features for network maintenance which includes Loopback Detection, Cable Diagnostics, and IGMP Snooping. Featuring L2+ static routing enables more efficient use as it is able to provide segmentation of the network with internal routing through the switch.
ISP Features:
This unit supports a range of ISP features which includes 802.3ah OAM, DDM, sFlow, QinQ, L2PT PPPoE ID Insertion, IGMP authentication etc. The 802.3ah OAM and Device Link Detection Protocol (DLDP) functions improve monitor and troubleshoot Ethernet networks, and help facilitate network management. DDM(Digital Diagnostic Monitoring) function helps view the status of SFP modules inserting to the Switch and to configure alarm settings, warning settings, temperature threshold settings, voltage threshold settings, bias current threshold settings, TX power threshold settings, and Rx power threshold settings.
IPv6 Support
The TL-SG3452P supports numerous IPv6 functions including Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbour Discovery, guaranteeing your network is ready for the Next Generation Network (NGN) without upgrading your network equipment.
| Hardware Features | TL-SG3452P |
| Interface | 48 x 10/100/1000Mbps RJ45 Ports 4 x Gigabit SFP Slots |
| Console | 1 x RJ45 Console Port, 1 x Micro-USB Console Port |
| PoE Standard | 802.3af/at |
| PoE Ports | 48, up to 30W |
| PoE Power Budget | 384W |
| Power Supply | 100-240V AC |
| Max Power Consumption | 52.53W (No PD connected) 485.4W (with 384W PD connected) |
| Dimensions | 440 x 330 x 44mm |
| Fan Quantity | 3 |
| Installation | Rack-Mountable |
