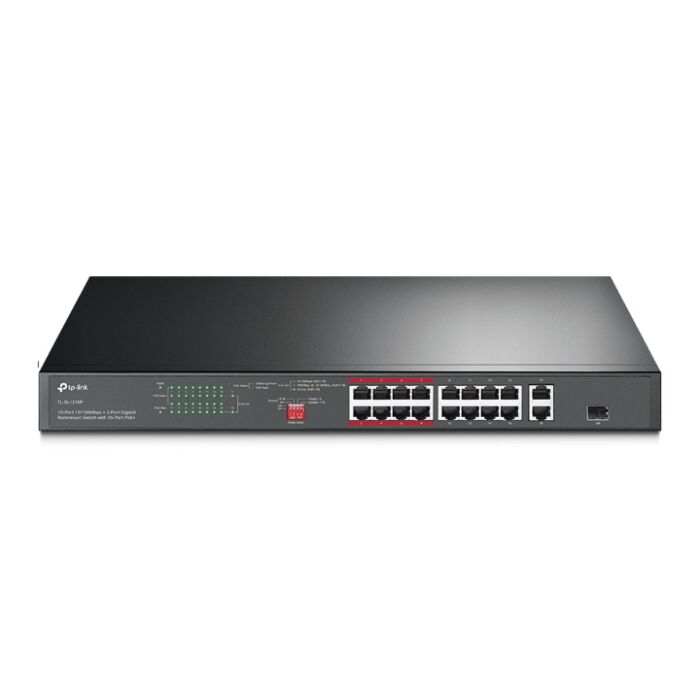

TP-Link TL-SL1218P 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount PoE Switch with 16-Port PoE+
SKU: TL-SL1218P
Contact Us for Stock Levels
Key Features:
- 16× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 1× combo Gigabit SFP slot
- High PoE power budget with up to 30 W for each PoE port and 150 W for all PoE ports
- Up to 250 m data and power transmission under extend mode specially designed for surveillance system
- Priority mode for ports 1–8 to guarantees the quality of sensitive applications like video monitor
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Easy to use, with no configuration and installation needed
This product may not be immediately available from stock. Please contact us for a lead time before purchase.
Details
The TL-SL1218P is one of TP-Link's new PoE+ switches in which all 10/100Mbps RJ45 ports supporting PoE+ standard and so the device provides a simple way for users to expand the wired network while transferring power over the same ethernet cable at the same time. Supporting up to 30W per port, the TL-SL1218P can power more high-powered devices such as Access Points (APs), IP cameras, and IP phones.
As well as this, when the unit is using the innovative Extend Mode, devices are able to get PoE power supply and data transmission from a distance of up to 250m. Not only this but Priority Mode ensure high priority for ports 1-8 which guarantees the quality of sensitive applications. The TL-SL1218P also supports Isolation Mode that divides traffic for 10/100Mbps RJ45 ports for higher security and performance.
Power over Ethernet
- Features 16 x 802.3af/at compliant PoE+ ports, with a total PoE power budget of 150W
- Flexible deployment for PoE supported devices such as wireless access points, IP phones and IP cameras
- Designed to use a single Ethernet cable for both data and power transmission, lowering infrastructure costs
Highlight Performance
- Up to 250 m PoE power supply and data transmission under Extend Mode
- After turning on the Priority Mode, there will be designated high priority ports for quality-sensitive application like Surveillance Video
- Isolation Mode easily divides traffic for 10/100 Mbps RJ45 ports to avoid snooping and tampering, which improves LAN security and performance.
Easy to Use
- Plug and play, no configuration required
- Auto MD/MDIX eliminates the need for crossover cables
- Auto-negotiation intelligently adjusts for compatibility and optimal performance
| Hardware Features | TL-SL1218P |
| Interface | 16 x 10/100Mbps RJ45 Ports 2 x 10/100/1000 Mbps RJ45 Port 1 x Combo Gigabit SFP Slot |
| PoE Standard | 802.3af/at |
| PoE Ports | 16, up to 30W |
| PoE Power Budget | 150W |
| Power Supply | 100-240V AC |
| Max Power Consumption | 12.71W (with no PD connected) 172.8W (with 150W PD connected) |
| Max Heat Dissipation | 43.34 BTU/hr (no PD connected) 589.25 BTU/hr (with 150W PD connected) |
| Dimensions | 440 x 180 x 44mm |
| Fan Quantity | 2 |
