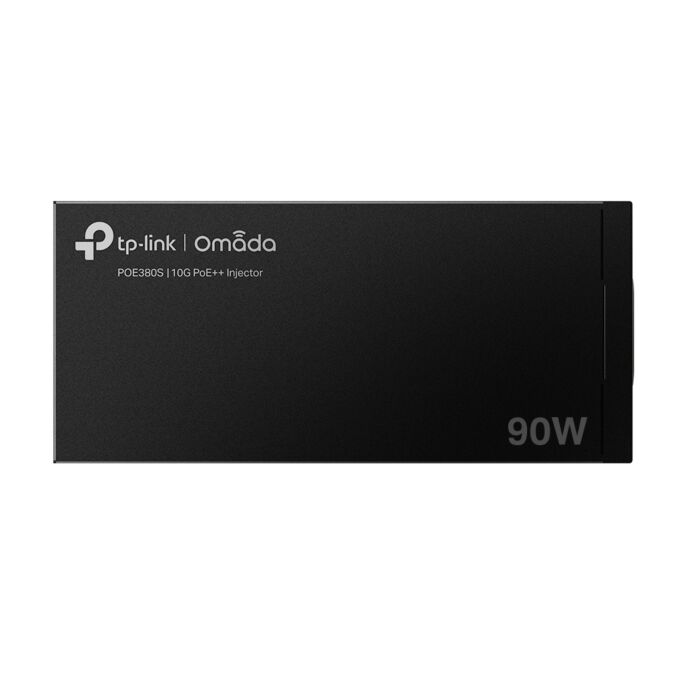

TP-Link POE380S Omada 10G PoE++ Injector
SKU: POE380S
Out of stock
Key Features:
- 2× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 ports
- Complies with IEEE802.3af/at standards, supplies up to 90W
- Transmits data and power simultaneously via an Ethernet cable
- Automatically determines and supplies the exact power needed for the device
- Wall-mount and desktop design
- Plug-and-play installation
- Integrated power supply
- Durable metal casing
Details
The TP-Link POE380S Omada PoE++ Injector fully complies with IEEE 802.3af/at/bt standards with up to 90W (802.3bt type 4) power supply. It can easily expand your network to where there are no power lines or outlets, ideal for connecting PTZ IP Cameras, access points, and LEDs.
| Standards | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt |
| Ports | 1 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 data-in port 1 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 power+data-out port 1 AC socket |
| Network Media | 10Base-T/100Base-TX: UTP category 5 cable or above (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100m) 1000Base-T/2.5GBase-T: UTP category 5e cable or above (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100m) 5GBase-T: UTP category 5e cable or above (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100m) 10GBase-T: UTP category 6a cable or above (maximum 90 m) EIA/TIA-568 100Ω STP (maximum 90m) |
| Power | Input: 100-240 V, 50/60 Hz, 1.6 A Output: Auto-determine the necessary power requirements (max. 90 W) |
| Dimensions | 155 x 70 x 42 mm |
| Environment | Operating Temperature: 0°C to 45°C (32°F to 113°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 10% to 90%RH non-condensing Storage Humidity: 5% to 90%RH non-condensing |
| Certification | FCC, CE, RoHS |
Package Contents:
- POE380S
- Power cord
- RJ45 cable
- Installation guide
