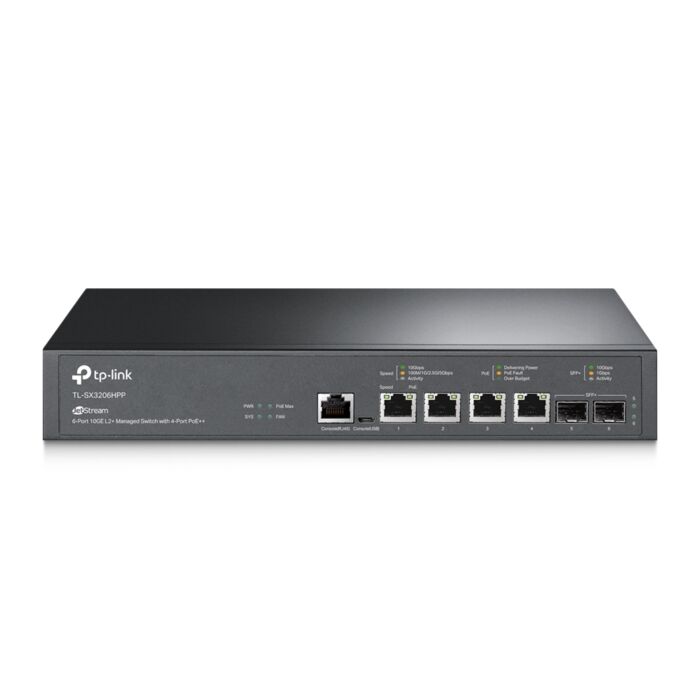

TP-Link TL-SX3206HPP JetStream 6 Port 10GE L2+ Managed Switch with 4 Port PoE++
SKU: TL-SX3206HPP
Out of stock
Key Features:
- Full 10G lightning-fast connection
- 4 x 802.3af/at/bf PoE++ ports
- 200W total power budget
- Abundant L2 and L2+ features
- Robust security strategies
- Static routing
- Centralised cloud management
- Standalone management
- Easy and intelligent network monitoring


Details
The TL-SX3206HPP is a 6 Port 10GE L2+ managed switch featuring 4 PoE++ ports that provides users with high performance and powerful L2 and L2+ features. High-speed data transfer is guaranteed thanks to the 10-gigabit ports.
The unit utilises and wide range of features which include:
Networking Security:
This switch provides IP-MAC-Port Binding, Port Security, Storm control, and DHCP Snooping which protects the TL-SX3206HPP against broadcast storms, ARP attacks, etc. The Access Control Lists (ACL, L2 to L4) feature, restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, and even VLAN ID. As well as this the device supports 802.1X authentication, which is used in conjunction with a RADIUS/TACACS+ server to require some authentication information before access to the network is allowed.
Abundant L2+ Features:
The TL-SX3206HPP supports a complete lineup of L2 features including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flor Control function. Not only this but the switch provides advanced features for network maintenance which includes Loopback Detection, Cable Diagnostics, and IGMP Snooping. Featuring L2+ static routing enables more efficient use as it is able to provide segmentation of the network with internal routing through the switch.
ISP Features:
This unit supports a range of ISP features which includes 802.3ah OAM, DDM, sFlow, QinQ, L2PT PPPoE ID Insertion, IGMP authentication etc. The 802.3ah OAM and Device Link Detection Protocol (DLDP) functions improve monitor and troubleshoot Ethernet networks, and help facilitate network management. DDM(Digital Diagnostic Monitoring) function helps view the status of SFP modules inserting to the Switch and to configure alarm settings, warning settings, temperature threshold settings, voltage threshold settings, bias current threshold settings, TX power threshold settings, and Rx power threshold settings.
IPv6 Support
The TL-SX3206HPP supports numerous IPv6 functions including Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbour Discovery, guaranteeing your network is ready for the Next Generation Network (NGN) without upgrading your network equipment.

| Hardware Features | TL-SX3206HPP |
| Interface | 4 x 100M/1000M/2.5G/5G/10Gbps RJ45 Ports 2 x 10GE SFP+ Slots |
| Console | 1 x RJ45 Console Port 1 x Micro-USB Console Port |
| Flash | 32MB |
| DRAM | 256MB |
| Port Standard | IEEE 802.3u:100BASE-X Fast Ethernet IEEE 802.3ab:1000BASE-T Gigabit Ethernet IEEE 802.3bz: 2.5GBASE-T Ethernet IEEE 802.3an:10GBASE-T Ethernet IEEE 802.3z:1000BASE-X Gigabit Ethernet (Optical fiber) IEEE 802.3ae: 10 Gigabit Ethernet over fiber |
| PoE Standard | 802.3af/at/bt |
| PoE Ports | 4, up to 60W |
| PoE Power Budget | 200W |
| Power Supply | 100-240V AC |
| Max Power Consumption | 27.29 W (110V/60Hz) (no PD connected) 244.90 W (110V/60Hz) (with 200 W PD connected) |
| Dimensions | 294×180×44 mm |
| Fan Quantity | 2 |
| Installation | Rack-Mountable/Desktop |
