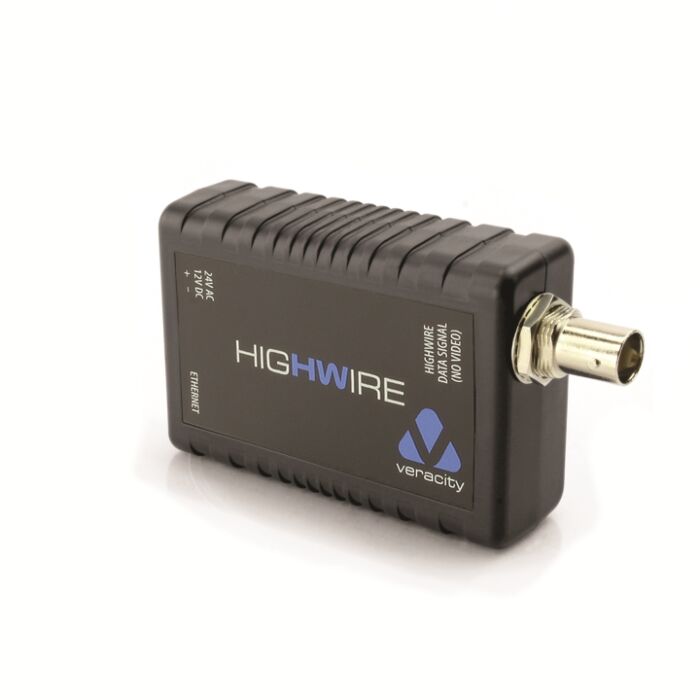

Veracity HIGHWIRE Ethernet Over Coax Device VHW-HW
SKU: VHW-HW
Contact Us for Stock Levels
Key features:
- Ethernet Over Coax Adaptor
- Simple Retro-Fit of IP Cameras In Place of Analogue
- Full 100 Base-T Ethernet Performance
- Supports Multiple Cameras (With Switch)
- Fully Automatic - No Configuration Required
- Up To 300m On RG59
- Up To 500m on RG11
- Powered by Legacy PSU At Camera End
- Rack Mount Option For Control Room End
- LED Status Indicators
- Dimensions: 104mm(L) x 54mm(W) x 24mm(H)
Please note that the VHW-HW may not be available for Next Working Day delivery. Please contact our sales team at [email protected] for stock inquiries.
Details
Veracity's HIGHWIRE Ethernet over Coax device turns any analog video cable into a high-speed network connection. This allows the replacement of analog IP cameras with IP cameras without installation of any new cabling, which can save some 30-40% of the system cost. Universal connections for coax, network and power, with no user set-up required, make installation easy and very fast.
Veracity's HIGHWIRE Ethernet over Coax device turns any analog video cable into a high-speed network connection. This allows the replacement of analog IP cameras with IP cameras without installation of any new cabling, which can save some 30-40% of the system cost. Universal connections for coax, network and power, with no user set-up required, make installation easy and very fast.
The main application for HIGHWIRE is straightforward replacement of analog cameras for IP cameras without re-wiring. HIGHWIRE will handle megapixel cameras and PTZ IP cameras without problems. Other applications include VOIP, long-range networking (500m) with RG11 cable, lifts and elevators (as coax bends and coils easily), and indeed anywhere there is coax.

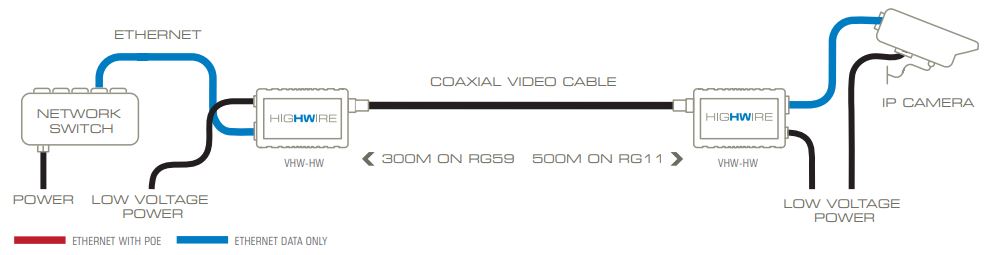

The first diagram below shows a pair of HIGHWIRE adaptors, delivering full-bandwidth Ethernet over existing coaxial cabling without requiring any settings or other configuration.
Whilst this next diagram shows a single HIGHWIRE combined with a HIGHWIRE Quad. This provides Ethernet connectivity for up to four POE IP devices (typically IP Cameras) over existing coaxial cabling.
