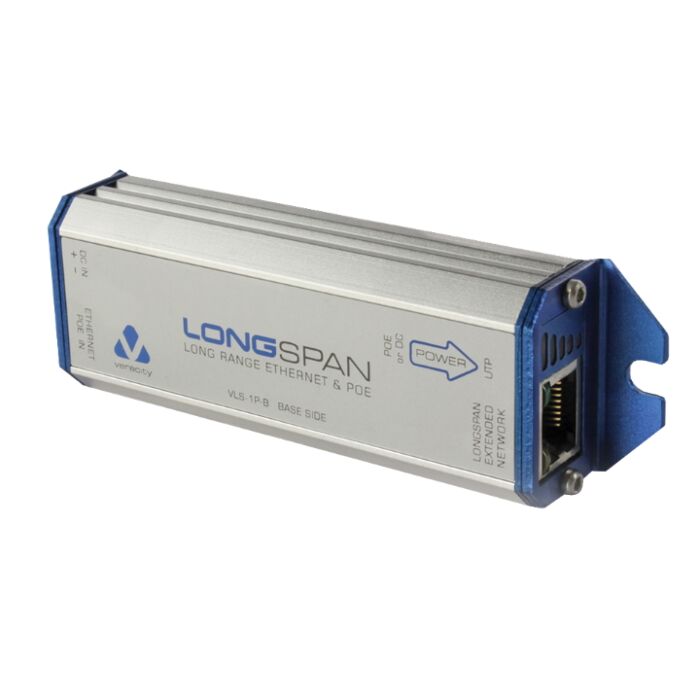

Veracity LONGSPAN VLS-1P-B Single Converter with PoE - Base Unit
Long range point-to-point Ethernet over regular Cat 5/Cat 6 cable
Ruggedised for high performance over extreme temperature range
Smart power and diagnostic display for reliable installation
Fully automatic, simple to install and maintenance-free
Unrestricted 100Base-T with PoE at over 800 metres
Delivers full PoE Plus power at 600 metres
LED status indicators
Dimensions: 120mm(L) x 36mm(W) x 23mm(H)
Base Option - For Camera Unit See VLS-IP-C
Please note that the VLS-1P-B may not be available for Next Working Day delivery. Please contact our sales team at firstname.lastname@example.org for stock inquiries.
The Veracity LONGSPAN is a long range power and Ethernet extender for use in IP systems. It delivers unrestricted 100Base-T and 802.3af/at POE at distances reaching far beyond the normal Ethernet limits.
As IP cameras can demand peak network bandwidth of several times their average data rate whilst transmitting high-activity or low-light scenes, LONGSPAN has been designed to run IP cameras over 800 metres of normal network cable, supporting the full 200Mbps required for 100Base-T Ethernet. The full-speed Ethernet provided by LONGSPAN ensures perfect image quality at critical moments, even at the longest ranges.
For even more extreme distances, LONGSPAN can automatically drop to 10Base-T operation, therefore supporting a range of over 1000 metres.
POE Equipped models allow all the power from the link to be sourced from a single POE switch or power supply, for simple installation and reliable UPS-backed power delivery. LONGSPAN's unique power transmission technology can deliver the full 25.5 watt required for POE Plus equipment at up to 600 metres, or standard 15 watt POE up to 820 metres.
LONGSPAN also supports 1-pair and 2-pair cable with extended range, so analogue cameras in UTP installations can now be upgraded to IP with no need to replace the installed cabling infrastructure. LONGSPAN's unique technology automatically adapts to the number of pairs available, and delivers the same unrestricted 10 or 100Mbps full-duplex network connection, assuring predictable IP video quality each and every time.
A smart LED display utilising Veracity's SafeView technology provides instant confirmation of link status, power availability, and diagnostic information from either end of the cable.
High-density installations are supported with a a configurable rack mounting system, which allows up to 24 channels to be installed in just 1U of rack space.
