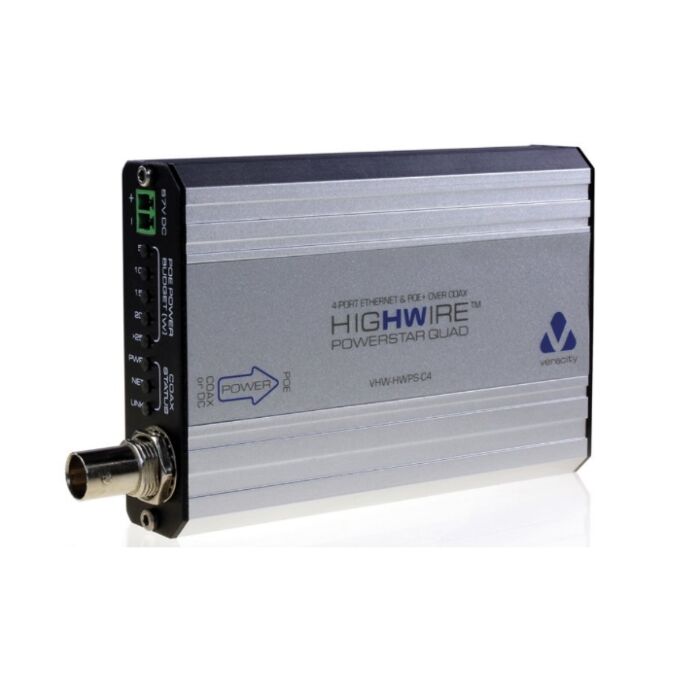

Veracity VHW-HWPS-C4 Highwire Powerstar Quad
SKU: VHW-HWPS-C4
Contact Us for Stock Levels
Key Features:
- Re-uses existing coax cable for up to 4 IP cameras or devices
- Camera device, for base device see - VHW-HWPS-C4
- Integrated 4-port POE switch ( POE + with local power option)
- Eliminates separate power cable with POE-over-Coax
- Compatible with all HIGHWIRE Powerstar base units
- Instantly check connection and power level with SafeView
- Completely automatic connection, no configuration required
- 100BaseTX performance over 300m of RG59 (500m RG11)
- Dimensions: 132mm(L) x 75mm(W) x 22mm(H)
Please note that the VHW-HWPS-C4 may not be available for Next Working Day delivery. Please contact our sales team at [email protected] for stock inquiries.
Veracity HIGHWIRE VHW-HWPS-C4 Quickstart Guide
Veracity Product Guide
Details
The Veracity HIGHWIRE Powerstar Quad allows users to connect four IP cameras to a network using existing or legacy coax cable. Using the existing coax cabling as a reliable Ethernet network connection makes installation fast and easy.
It features a built-in 4 port POE switch to multiply the capability of one coax cable to allow it to connect up to four IP cameras or various other network devices.
HIGHWIRE Powerstar Quad's unique ultra low-power design enables long range Ethernet over coax. It works even over the lowest grade cable, such as the high-resistance copper-clad steel (CCS) types found in many legacy installations. This means that legacy coax upgrades can be planned with confidence, while a quick check of the SafeView power level display reaffirms that the devices connections will continue to be reliable, whatever the cable used.
The QUAD variant of HIGHWIRE is designed for the camera end of the coax and, with an integrated four-port POE switch, enables connection of up to four IP cameras over a single coax. With no need to configure IP addresses, set DIP switches or make awkward measurements and calculations.
Users have the option to power the Quad unit either by POE over coax which delivers a maximum total POE power budget of 25 watts, or by one of the optional local PSUs, delivering 40 or 78 watts. These options can be found in our "Related Items" section below.

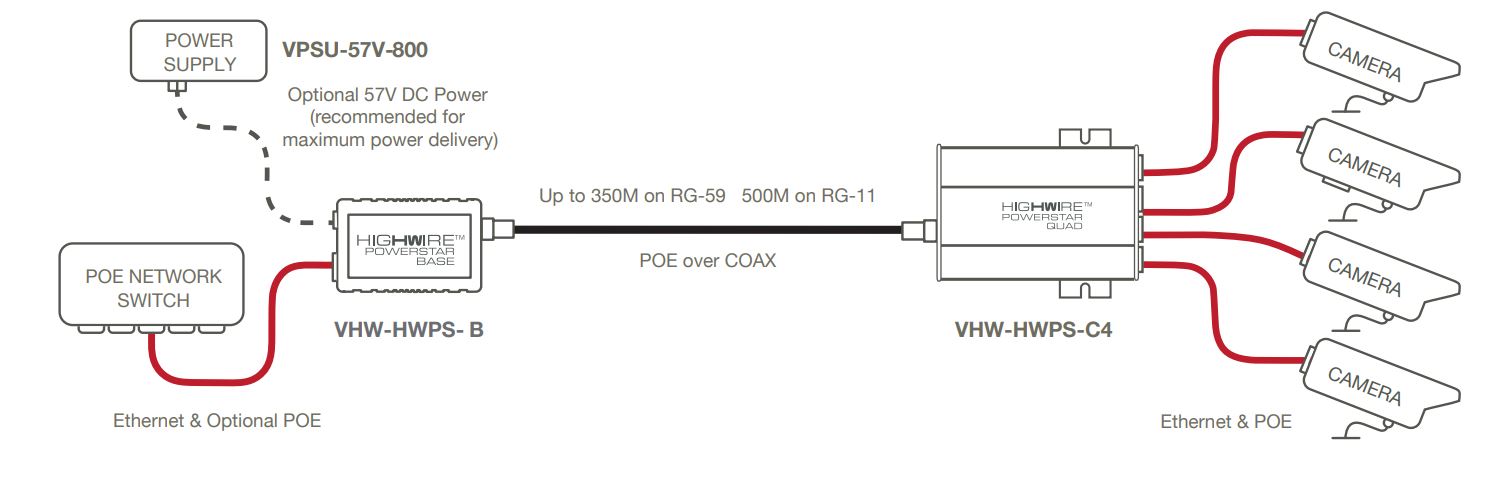

Veracity VHW-HWPS-C4 POE over Coax Application Diagram
The diagram above shows POE power delivery over coax from the Base end. The Powerstar Base unit may be powered by a POE or POE Plus switch. Or, for maximum power delivery over coax, the Veracity 57V DC PSU (power supply unit) can also be used.
Veracity VHW-HWP-C4 Power Supply To Quad Diagram
Veracity VHW-HWPS-C4 HIGHWIRE Powerstar Quad Dimensions
The diagram above shows a power injector a the camera end, using a PSU for HIGHWIRE Powerstar Quad, with no power delivery over coax. This option allows the maximum POE power output.
