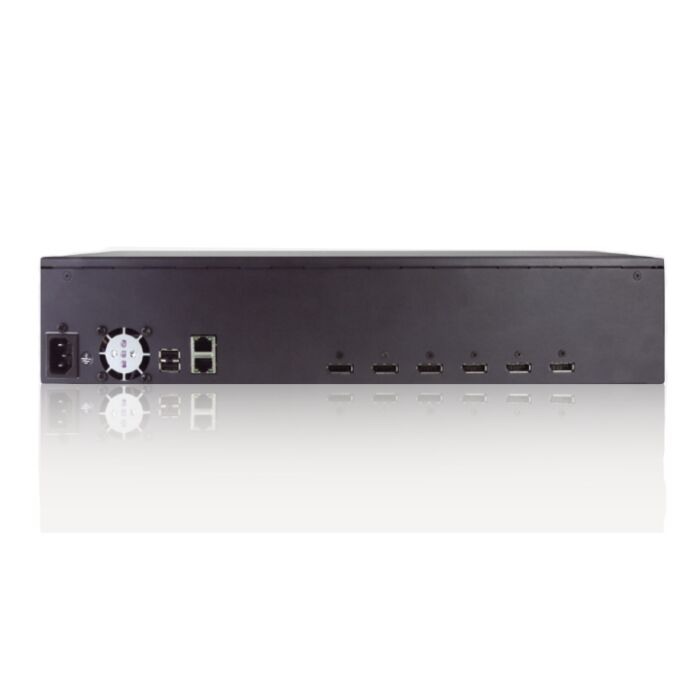

Veracity VIEWSPAN 6 Plus 6 Channel 4K UHD Wall Controller VSPAN-6-PLUS
SKU: VSPAN-6-PLUS
Out of stock
Key Features:
- 6 Channel Video Wall Controller
- Six HDMI/DisplayPort Outputs For HD or 4K Monitors
- Decoding and Display of 48 Full HD Streams at 30FPS
- Single Display Canvas Across 6 Screens
- Decoding Of Any Video Format, Resolution and Frame Rate
- Designed Specifically For CCTV Video Wall Display Systems
- Active Output Drivers For Long Cable Connections
- Accelerated Fisheye Camera Display De-Warping
- Dimensions: 482mm(W) x 88mm(H) x 220mm(D)
Please note that the VSPAN-6-PLUS may not be available for Next Working Day delivery. Please contact our sales team at [email protected] for stock inquiries. This is a special order item.
Details
The Veracity VIEWSPAN 6 Plus is an industrial-grade, high performance video wall controller system for surveillance control rooms for six 4K or HD screens. VIEWSPAN 6 Plus is a dedicated six-screen video wall display processor with high performance and reliability. DisplayPort outputs drive up to 6 full HD monitor screens with a simple and straightforward setup process.
Specifically built with Video Surveillance in mind, the VIEWSPAN 6 Plus meets the performance and reliability requirements of video surveillance security applications. It also features a dedicated, highly optimised video processing software that delivers enterprise-level performance at lower cost than PC-based systems. When combined with the VIEWSPAN 6 Plus hardware, it produces super-smooth video, decoding up to 26 full HD channels at 30FPS.

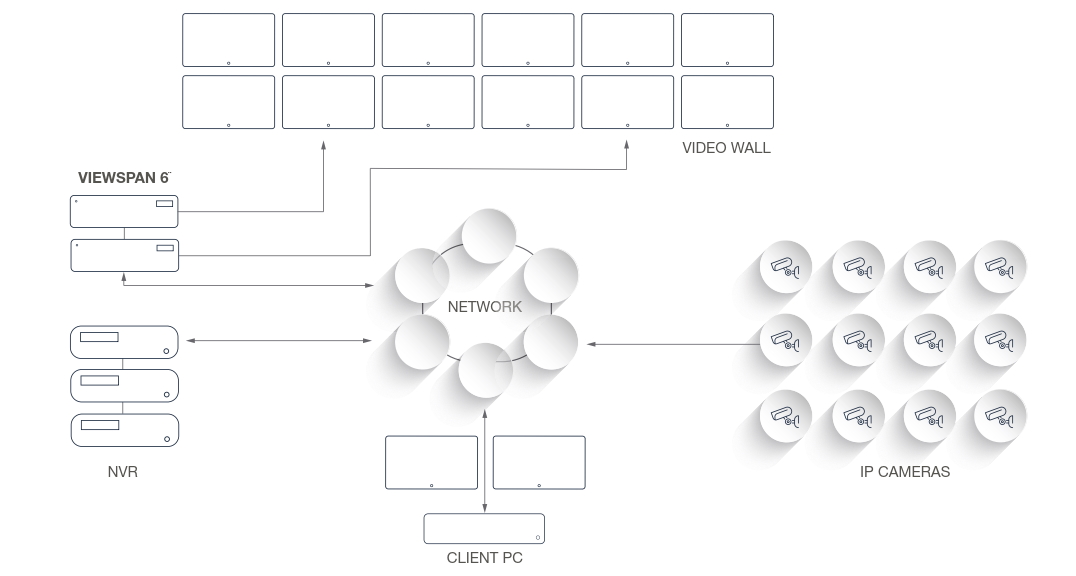

The below diagram demonstrates two VIEWSPAN 6 Plus video wall controllers driving 12 full HD or 6 4K monitor displays. Displayed video streams may come from any source, including the NVR, cameras or even the Client PC. Multiple streams can be displayed on each monitor (matrix view).
VIEWSPAN 6 Plus Application Diagram
This table shows the number of video input channels which can be simultaneously decoded at a given input resolution. However, the displayed resolution of each individual channel will be dictated by the display monitor resolution, layout pattern and number of screens available. This table references the full VIEWSPAN range.
VIEWSPAN 6, VIEWSPAN 6 Plus and VIEWSPAN Solo Performance Table
