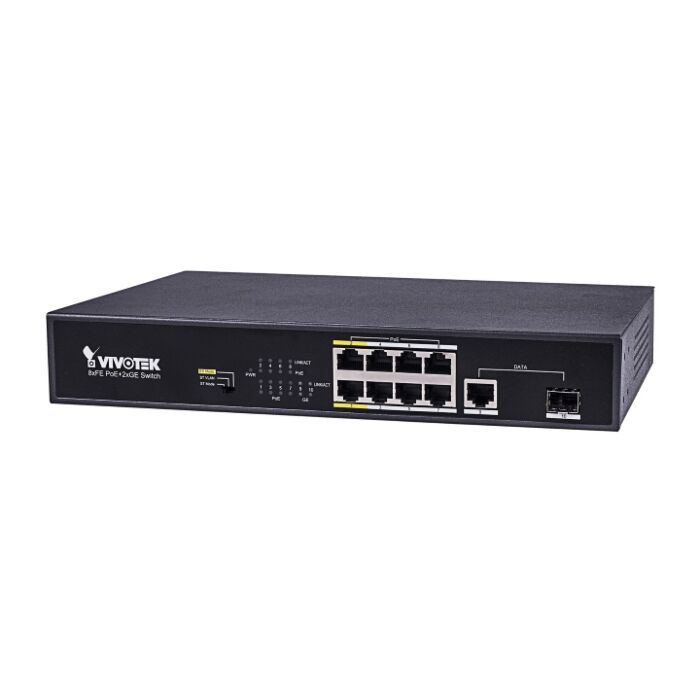

Vivotek AW-FGT-100C-120 Unmanaged 8 x FE PoE + 2 x GE UTP Switch

Availability: Available for delivery in 7~10 days

£147.60 Incl VAT Excl VAT. £123.00

Vivotek AW-FGT-100C-120

Make an Offer

If you would prefer to negotiate a lower price for this item with us, please enter your offer below. We'll then connect you to our Live Chat team who will review your offer as quickly as possible.

Quick Overview


The AW-FGT-100C-120 is one of Vivotek's FE unmanaged PoE switches providing ST STandard and EX EXtend operational modes. These switches have been specifically designed for IP surveillance applications.

As well as standard 802.3af/at PoE functions in ST mode, EX mode also transmits data and power on one single cable up to 200 meters at 10 Mbps via specific EX ports for long reach PoE IP cameras.

The FE unmanaged PoE switches also feature adding an additional 10% range of input voltage tolerance (280VAC 4hr, 300VAC 1min), lighting surge protection of AC power and PoE protection to prevent damage caused by outside unstable AC power, lightning strikes and power spikes.


Please note that this product may be subject to a 7~10 day lead time to fetch it from the manufacturer.


iOS Vivotek App Store - Android Vivotek App Store


Vivotek AW-FGT-100C-120 Quick Installation GuideVivotek PoE FlyerVivotek Product Brochure 2020


Product Datasheets

Vivotek AW-FGT-100C-120 Unmanaged 8 x FE PoE + 2 x GE UTP Switch Datasheet (0.47MB)


ST EX Mode Diagram

Find use-IP on Youtube   Find out more at the use-IP forum    Find the correct firmware for your camera

Key Features

- 15.4W/30W 802.3af/802.3at compliant
- 4KV PoE surge protection each port
- 4KV AC surge protection
- 20% range of input voltage tolerance (280VAC 4Hr, 300VAC 1min)
- Circuit protection orevents power interference between ports
- Detects PoE PD (power device) automatically
- ST mode reaches PoE camera up to 100m @ 100Mbps via EX PoE ports

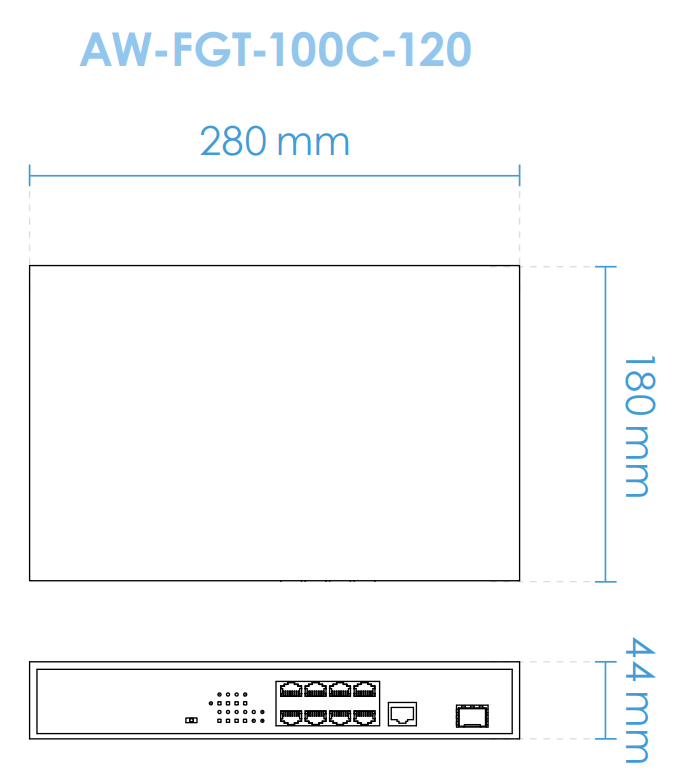

AW-FGT-100C-120 Dimensions

Additional Information

Weight 1540.0000
Number of PoE Ports 8
Total Power Budget 120W
Warranty 1 Year
Launch Date Summer 2020
