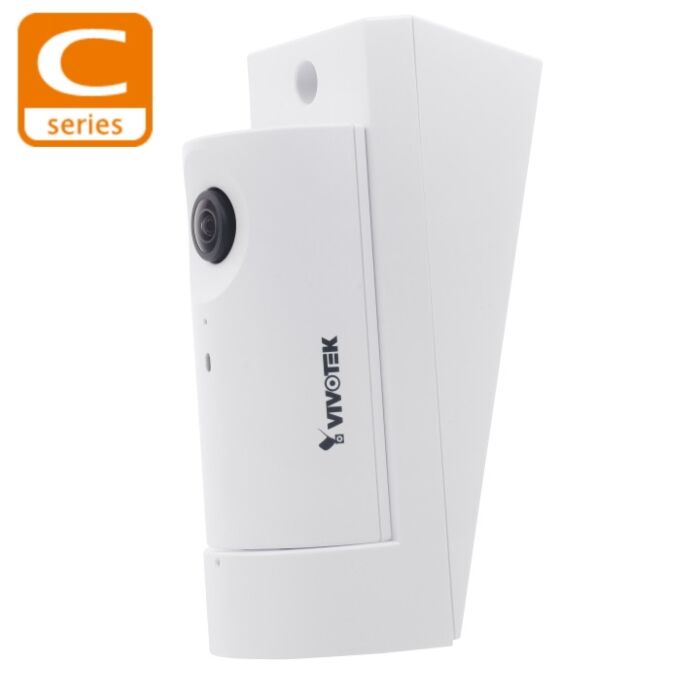

Vivotek CC8160 2MP Cube/Panoramic Camera

Out of Stock
CC8160 ~ EOL
£332.40 £277.00

The CC8160 is now End of Life.

There is no direct replacement, however please feel free to browse our Vivotek category.

The Vivotek CC8160 2 megapixel cube camera has been specifically designed for indoor panoramic surveillance. The unique mounting design enables ease of installation on a wall or corner to capture faces at eye level.

CC8160 Features

Included Accessories: - Quick installation guide - Warranty card - Camera stand - Screw pack

Trend Micro 1 year free trial version from manufacturing time (click for more info)

Please note that this product may be subject to a 7~10 day lead time to fetch it from the manufacturer.

Find use-IP on Youtube   Find out more at the use-IP forum    Find the correct firmware for your camera

Quick Installation Guide User Manual Vivotek Product Brochure 2020

Product Datasheets

Vivotek CC8160 2MP Cube/Panoramic Camera Datasheet (0.43MB)

CC8160 ViewCC8160 Coverage

Find use-IP on Youtube   Find out more at the use-IP forum    Find the correct firmware for your camera

- 2-Megapixel CMOS Sensor - 180° Horizontal Panoramic View - Compact, Low-Profile Design - 30 fps @ 1920x1080 - Real-time H.264 and MJPEG Compression (Dual Codec) - Built-in 802.3af Compliant PoE - Smart Stream II to Optimize Bandwidth Efficiency - WDR Enhanced - Supports ONVIF Standard to Simplify Integration and Enhance Interoperability - Built-in Microphone

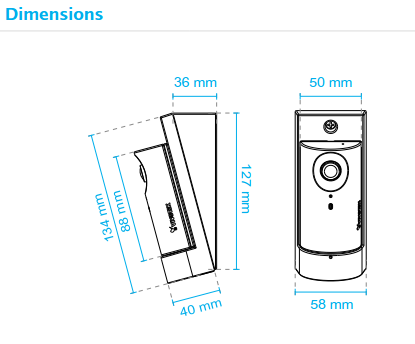

CC8160 Dimensions

Vivotek Naming Rule
Image chip size 1/2.9"
Image chip type Progressive CMOS
Image Compression H.264 & Motion JPEG
Audio One way, built-in microphone
Indoor / Outdoor Indoors only
POE built-in Yes
POE Class Class 2 (3.84-6.49W)
Max. Resolution 1920 X 1080
Min. low-light lux 0.22
Supply Volts POE only
Lens Mount fixed focus
Lens Focal Length 1.66mm
Viewing Angle 180° Horizontal Field of View
Aspect ratio 16:9
Megapixels 2 MP
Supplied with lens Yes
Max. Images per second 25
PSU included No
ONVIF Compatible Yes
Power Consumption max. 2.01W
Warranty 2 Years
Launch Date April 2017
