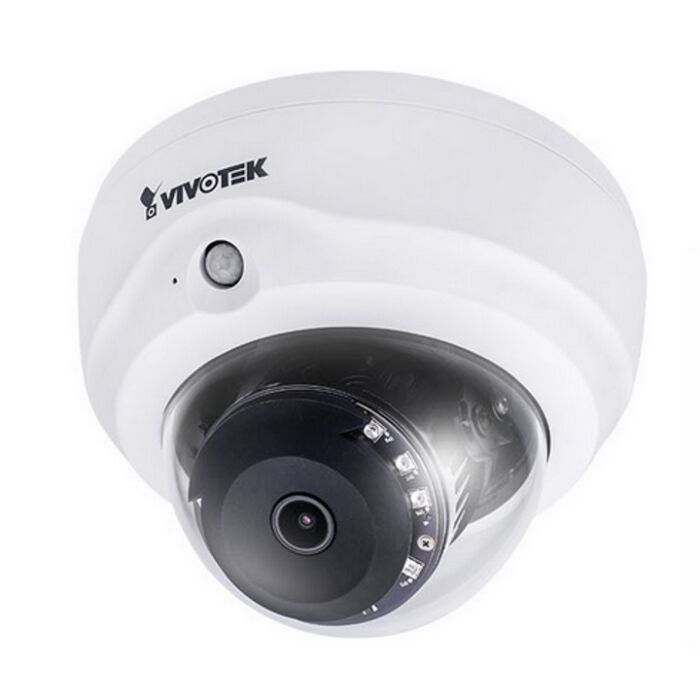

Vivotek FD816BA-HF2 Fixed Dome Network Camera

Availability: Out of Stock

£228.00 Incl VAT Excl VAT. £190.00

Vivotek FD816BA-HF2-EOL

Make an Offer

If you would prefer to negotiate a lower price for this item with us, please enter your offer below. We'll then connect you to our Live Chat team who will review your offer as quickly as possible.

Quick Overview

The Vivotek FD816BA-HF2 Fixed Dome Network Camera is now End of Life.

Although there is no direct replacement for this model, may we direct you to other Vivotek Domes or the rest of the Vivotek Range

The FD816BA-HF2 is a dome camera from Vivotek that utilizes many features to improve the full HD image in applications with extreme light and dark.With a vari-focal lens, this camera will give you the perfect field of view in any situation.

The FD816BA-HF2 has built in two-way audio and a PIR sensor to detect movement.

Please note that this product may be subject to a 14-day lead time to fetch it from the manufacturer.

FD816BA-HF2 Banner

Quick Installation Guide
User Manual

Product Datasheets

Vivotek FD816BA-HF2 Fixed Dome Network Camera Datasheet (0.46MB)

Find use-IP on Youtube   Find out more at the use-IP forum    Find the correct firmware for your camera

Frequently bought together


Key Features

- 2MP
- 2.8mm fixed lens
- 30 fps
- Removable IR-cut filter for day & night function
- Built-in IR illuminators effective up to 30 meters
- Smart IR technology to avoid overexposure
- Supreme night visibility for low light conditions
- Wide dynamic range for visibility in bring and dark environments
- 3D noise reduction
- H.264 and MJPEG compression
- Two-way audio
- Video rotation for corridor view
- PIR sensor
- Vivotek video content analysis support

- Quick installation guide
- Warranty card
- Alignment sticker/desiccant bag
- Screw pack
- User's manual CD
- Quick installation guide CD

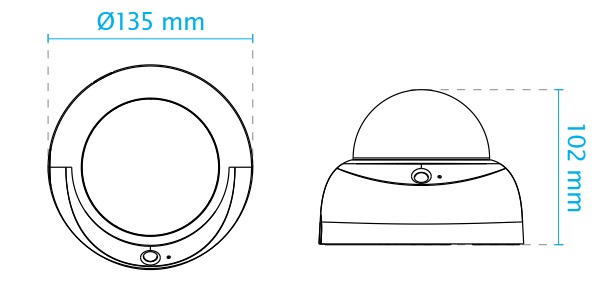

FD816BA-HF2 dimensions

Additional Information

Weight 541.0000
Image chip size 1/2.7"
Image chip type Progressive CMOS
Image Compression H.264 & Motion JPEG
Audio Audio input/output (full duplex)
Indoor / Outdoor Indoors only
Colour / monochrome True Day/Night
POE built-in Yes
POE Class Class 0 (0.44-12.95W)
Max. Resolution 1920 X 1080
Min. low-light lux 0.01
Lens Mount fixed focus
Lens Focal Length 2.8mm
Aspect ratio 16:9
Megapixels 2 MP
Supplied with lens Yes
IR Range Up to 30m
Max. Images per second 30
ONVIF Compatible Yes
Power Consumption max. 9W
Warranty 2 Years
Launch Date Spring 2017
