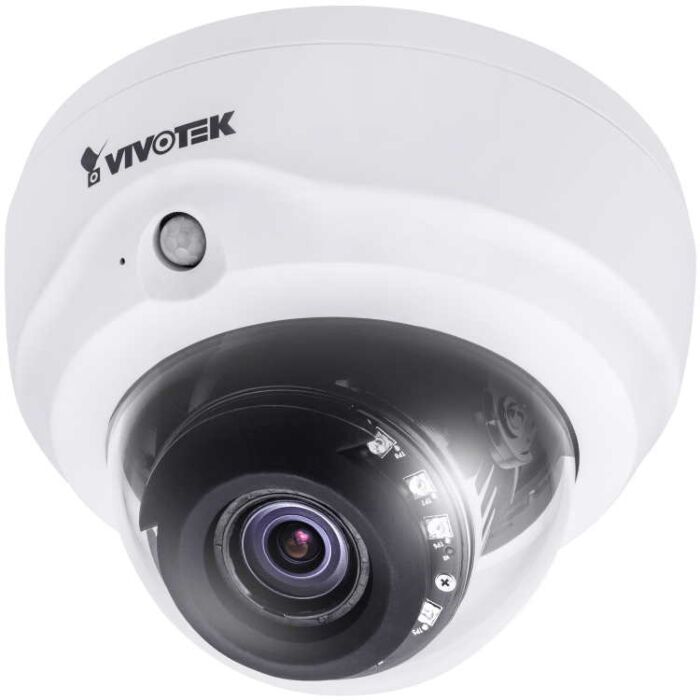

Vivotek FD816BA-HT 2MP Indoor Varifocal Dome Network Camera
The Vivotek FD816BA-HT is now End of Life.
May we recommend the Vivotek FD9167-HT as an alternative.
The Vivotek FD816BA-HT is a 2 megapixel indoor dome camera, fit with a 2.8mm~12mm varifocal, remote access, P-iris lens. Users will experience high quality images thanks to the full HD sensor enabling a viewing resolution of 1920 x 1080.
With built-in IR illuminators that can reach a distance of up to 30 metres and an IR-cut filter, image quality will be enhanced both during the day and during the night. To help add to the great image quality, the camera features elements such as WDR Pro (Wide Dynamic Range) help to balance the light when the image has contrasting areas low and overexposed light levels, as well as SNV (Supreme Night Visibility) to ensure great results are achieved even in darkness.
The FD816BA-HT is armed with a built-in PIR sensor which helps to provide real time security as well as detecting unexpected events. Alarm triggers include Motion Detection, Audio Detection and Camera Tampering Detection.
This camera can be powered by PoE or 12V DC power unit. There is potential for on-board storage with the addition of a MicroSD/SDHC/SDXC card slot.
Downloads
Quick Installation Guide
User Manual
Accessory Guide
Vivotek Product Brochure 2020
Product Datasheets
Vivotek FD816BA-HT 2MP Indoor Varifocal Dome Network Camera Datasheet (0.46MB)
-2 Megapixels - 30 fps @ 1920 x 1080 - 2.8~12mm Varifocal lens - Remote Focus - Two-way audio - 3D Noise reduction - Removable IR-cut filter - IR range of up to 30m - WDR Pro (Wide Dynamic Range) - SNV (Supreme Night Visibility) Packing Contents
CD
- Users manual - Quick installation guide - Shepherd - VAST 32-Channel recording software
Others
- Quick installation guide
- Warranty card
- Alignment sticker / desiccant bag
- Screw pack
| Image chip size | 1/2.7" |
|---|---|
| Image chip type | Progressive CMOS |
| Image Compression | MJPEG & H.264 |
| Audio | Two way, full duplex |
| Indoor / Outdoor | Indoors only |
| Colour / monochrome | True Day/Night |
| POE built-in | Yes |
| POE Class | Class 1 (0.44-3.84W) |
| Max. Resolution | 1920 X 1080 |
| Min. low-light lux | 0.01 |
| Supply Volts | 12V DC or PoE |
| Lens Mount | vari-focal lens |
| Lens Focal Length | 2.8~12mm |
| Viewing Angle | 34° ~ 107° Horizontal Field of View |
| Aspect ratio | 16:9 |
| Megapixels | 2 MP |
| Supplied with lens | Yes |
| Accepts auto-iris lens | P-Iris control |
| IR Range | Up to 30m |
| Max. Images per second | 30 |
| PSU included | No |
| ONVIF Compatible | Yes |
| Power Consumption | max. 13W |
| Warranty | 3 Years |
| Launch Date | Summer 2019 |
