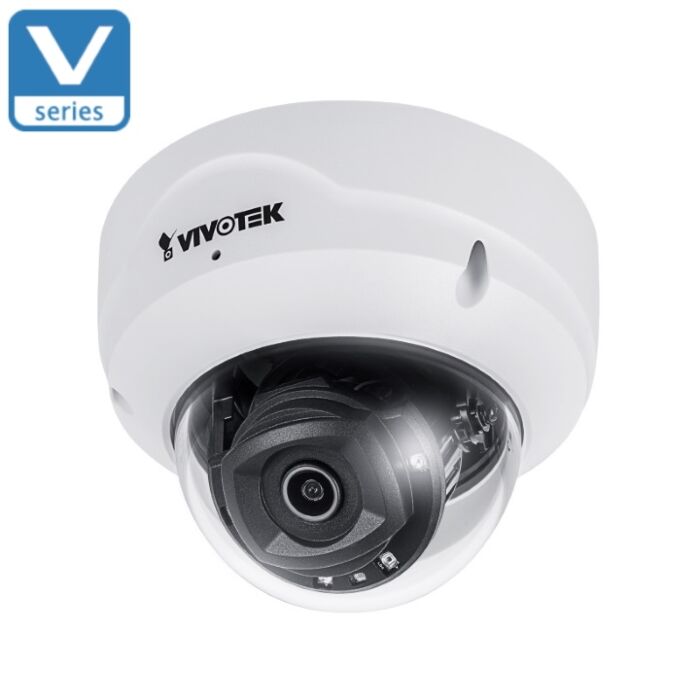

Vivotek FD9189-HM 5MP Fixed Dome Camera

Available for delivery in 7~10 days
SKU
FD9189-HM
£314.40 £262.00

The Vivotek FD9189-HM is an indoor dome camera with a 5 megapixel sensor enabling the camera to produce a resolution of 2560 x 1920 image at 30 frames per second.

Equipped with both Vivotek SNV (supreme night visibility) and WDR Pro (wide dynamic range) technology, the FD9189-HM is able to capture high quality images in both high-contrast and low-light environments.

Fitted with a manual focus 2.8mm~12mm lens, with this camera customers can select the area of coverage that best suits them and thanks to the IR illuminators that are effective up to 30m the FD9189-HM also provides clear visibility at night.

Featuring Vivotek's Smart Stream III technology and H.265 codec support, bandwidth can be reduced by up to 90% all while maintaining its high quality image.


Smart Stream III


Included Accessories: - Quick installation guide - Alignment sticker - Screw Pack


Please note that this product may be subject to a 7~10 day lead time to fetch it from the manufacturer.

FD9189-HM Features


Trend Micro

3 year free trial version from manufacturing time (click for more info)


Vivotek FD9189-HM User Manual Vivotek FD9189-HM Quick Installation Guide Vivotek FD9189-HM Accessories Guide Vivotek Product Brochure 2020

Product Datasheets

Vivotek FD9189-HM 5MP Fixed Dome Camera Datasheet (0.52MB)


AWS Logo

Amazon Kinesis Video Streams Integrated Device



Find use-IP on Youtube   Find out more at the use-IP forum    Find the correct firmware for your camera


iOS Vivotek App Store - Android Vivotek App Store


Frequently bought together

  1. Vivotek FD9189-HM 5MP Fixed Dome Camera
  2. +
  3. Vivotek AM-218 Wall Mount Bracket
  4. +
  5. Vivotek AM-719 Outdoor Junction Box
  6. +
  7. Vivotek AM-21A L-shaped Mounting Bracket
  8. +
  9. Vivotek AM-118 Indoor Pendant Head
  10. +
  11. Samsung EVO Plus 128GB MicroSDXC Card with Adapter MB-MC128HA/EU
  12. +
  13. Vivotek AM-528 Mounting Adaptor for Outdoor Dome Cameras
  14. +
  15. Vivotek AM-117 40cm Pendant Pipe
  16. +
  17. Vivotek AM-116 20cm Pendant Pipe
  18. +
  19. Tenda PoE30G-AT 30W PoE Injector
Total price: £0.00INCL VAT
Ex Vat: £0.00

- 30fps @ 2560 x 1920 / 60fps @ 1920 x 10870 (WDR Pro on) - H.265 compression technology - Smart Stream II to optimise bandwidth efficiency - WDR Pro (120dB) for unparalleled visibility in extremely bright and dark environments - SNV (Supreme Night Visibility) for low light conditions - Built-in IR illuminators, effective up to 30 metres - Smart IR Technology to avoid overexposure - Trend Micro IoT security within standard warranty period - Built-in MicroSD/SDHC/SDXC card slot for on board storage

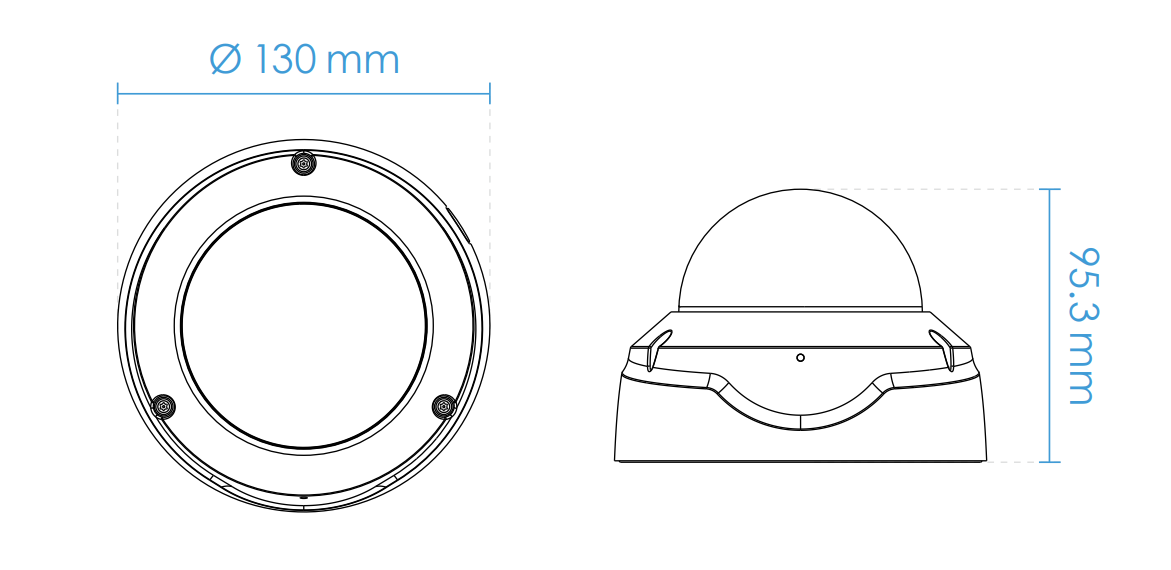

FD9189-H Dimensions
Vivotek Naming Rule
Specs
Image chip size 1/2.7"
Image chip type Progressive CMOS
Image Compression H.265,H.264,MJPEG
Audio One way, built-in microphone
Indoor / Outdoor Indoors only
Colour / monochrome True Day/Night
POE built-in Yes
POE Class Class 0 (0.44-12.95W)
Max. Resolution 2560 X 1920
Min. low-light lux 0.06
Supply Volts POE only
Lens Mount vari-focal lens
Lens Focal Length 2.8~12mm
Viewing Angle 30° ~ 100° Horizontal Field of View
Aspect ratio 4:3
Megapixels 5 MP
Supplied with lens Yes
IR Range Up to 30m
Max. Images per second 60
PSU included No
ONVIF Compatible Yes
Power Consumption max. 8.3W
Warranty 3 Years
Launch Date Summer 2020
