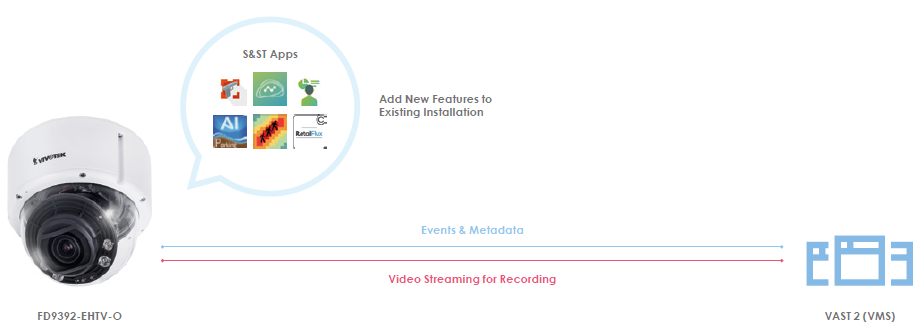

FD9392-EHTV-O Diagram


Find use-IP on Youtube   Find out more at the use-IP forum    Find the correct firmware for your camera


iOS Vivotek App Store - Android Vivotek App Store

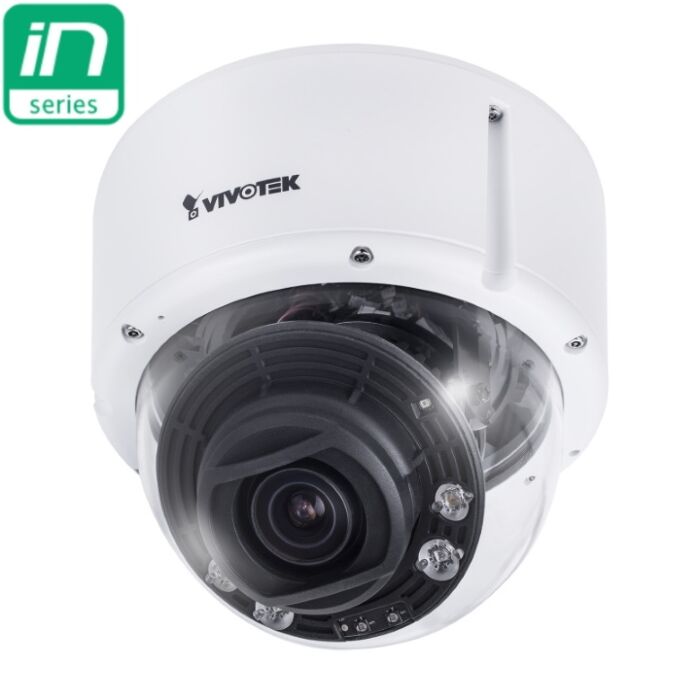

Vivotek FD9392-EHTV-O 8MP Dome Camera

Availability: Contact Us for Stock Levels

£1,284.00 Incl VAT Excl VAT. £1,070.00

Vivotek FD9392-EHTV-O

Make an Offer

If you would prefer to negotiate a lower price for this item with us, please enter your offer below. We'll then connect you to our Live Chat team who will review your offer as quickly as possible.

Quick Overview


The Vivotek FD9392-EHTV-O is the first camera to be released from the iNSIGHT series of products driven by OSSA (Open Security & Safety Alliance), which establishes an open and standardised platform for security and safety solutions.

The FD9392-EHTV-O employs the Qualcomm chip and is running on S&ST OS, which is an operating system based on the Android Open Source Project and users can download and install Apps on the camera via the S&ST app store. Apps available for users to download include; facial recognition, license plate recognition, behaviour detection as well as measures that help with social distancing such as; face mask detection and occupancy detection. Multiple apps can be downloaded at once to create intelligent and effective applications.

The camera is equipped with Qual-Core SoC based on the Qualcomm Vision Intelligence Platform, AI technology and the neural processing engine of Adreno 615 GPU, Spectra ISP and Hexagon DSP. This supports hardware acceleration for deep learning, powerful visual computing and edge computing performance that can optimise AI image processing.

With an IP66/IP67 weather resistant and IK10 vandal resistant housing to protect the camera against both harsh outdoor weather conditions and vandal attempts.


Included Accessories:
- Waterproof connectors
- Desiccant bags
- Alignment sticker




Vivotek FD9392-EHTV-O Quick Installation Guide
Vivotek Product Brochure 2020

Please note that this product may be subject to a 7~10 day lead time to fetch it from the manufacturer.


FD9392-EHTV-O Features


FD9392-EHTV-O Diagram


Find use-IP on Youtube   Find out more at the use-IP forum    Find the correct firmware for your camera


iOS Vivotek App Store - Android Vivotek App Store


Key Features

- 30fps @ 3840 x 2160
- H.265 compression technology
- Built-in IR Illuminators, effective up to 50 metres
- Driven by OSSA Camera, Running on S&ST OS (based on Android Open Source Project)
- Powerful SoC with a built-in AI Engine
- Supports a variety of VCA solutions through S&ST APPs
- Weather-resistant IP66/IP67, vandal-resistant IK10 and NEMA 4X rated housing
- -50°C ~ 60°C wide temperature range for extreme weather conditions (IR off)

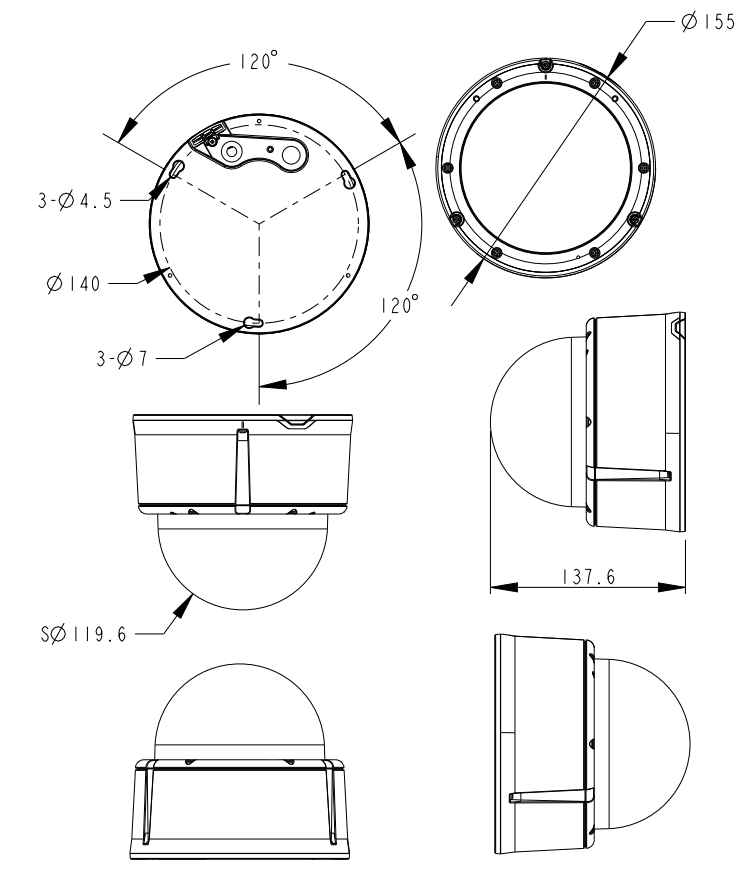

FD9392-EHTV-O Dimensions

Vivotek Naming Rule

Additional Information

Image chip size 1/1.8"
Image chip type Progressive CMOS
Image Compression H.265/H.264
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP67
Colour / monochrome True Day/Night
POE built-in Yes
POE Class Class 3 (6.49-12.95W)
Max. Resolution 3840 X 2160
Min. low-light lux 0.005
Supply Volts 12V DC, 24V AC or PoE
Lens Mount vari-focal lens
Lens Focal Length 3.9~10mm
Viewing Angle 119° ~ 45° Horizontal Field of View
Aspect ratio 16:9
Megapixels 8 MP
Supplied with lens Yes
IR Range Up to 50m
White Light Range N/A
Max. Images per second 25
ONVIF Compatible Yes
Power Consumption max. 25W
Warranty 3 Years
Launch Date Autumn 2020
