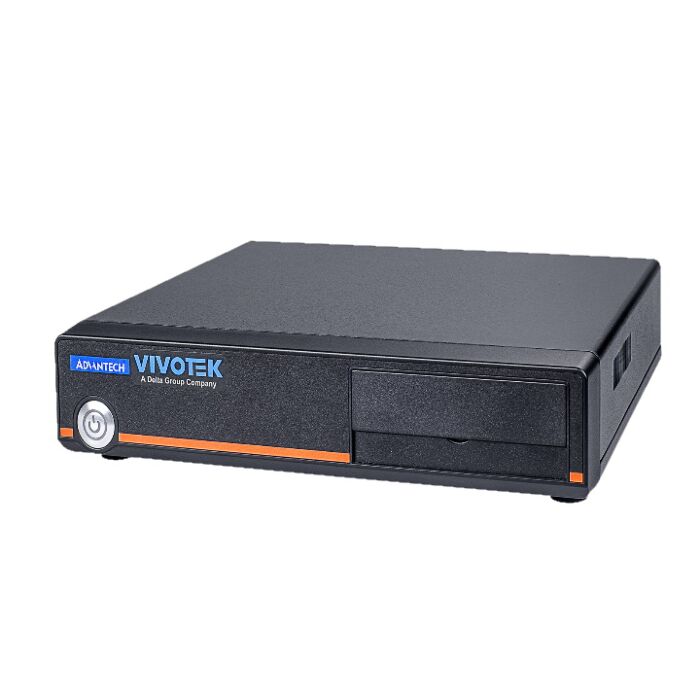

Vivotek IE9232-F Facial Recognition Workstation
SKU: IE9232-F ~ EOL
Out of stock
The IE9232-F is now End of Life.
Please feel free to browse our Vivotek category to find a suitable replacement.
Key Features:
- Support for up to 6 Cameras/Servers
- Supported IP Cameras - Any H.264/H.265 RTSP IP Camera
- Mask Detection and Recognition
- Max. Number of Faces in Database - 50,000
- Enroll a Person's Profile with up to 5 Pictures
- Real-time Notifications and Alerts
- Persons of Interest (POI) Management
- Comprehensive Reports
- Intel CPU, Linux OS
- Memory - DDR4 32GB RAM
- Three Tier Server-client System - Web server, Application server, Database server
- Supports a range of Trigger Rules and System Actions
- Power Input - 100-240 VAC
- Power Consumption - Max. 90W
Designed with the VAST Face CMS:
This product requires a power input of 100 - 240 V AC.
Please note this product comes without a power supply.
Please contact us for stock levels of this product.
Note: This product is a Project Based Item, and is made to order.
If in stock in Europe please allow 7-10 working days for delivery.
Details
The IE9232-F is an AI-Based Facial Recognition (FR) Workstation, from Vivotek, designed to achieve higher recognition accuracy (even in complex environments and under changing ambient lighting) through the use facial profiles of up to 5 images (captured from IP Cameras).
Users will also find that the IE9232-F is an ideal inclusion to access control and attendance management systems, with support for up to 6 IP Cameras.
Please Note: Any IP Cameras connected to the IE9232-F will require an FR License
and an optional Wiegand box is needed for door access
Features
Mask Detection and Recognition
With upgraded hardware, from Advantech (a leading industrial PC manufacturer), upadated software, and facial profile enrollment of 5 nuanced pictures (5 images can be used for 1 facial profile), the IE9232-F offers mask detection and recognition with improved speed and accuracy - allowing this FR workstation to stand apart from its predecessors.
Live Notifications / Alerts
Users can take advantage of Real-time notifications, via Vivotek VAST 2, whenever a person of interest (POI) has been identified, keeping you infromed at all times.
Trigger rules - With its rule based engine the IE9232-F can trigger single or multiple system actions.
These can be based on Event location, Schedule, Detection time period, a specific POI profile, POI face group affiliation, Person type (enrolled or un-recognised), or, if a person is (or is not) a member of a group.
Supported system actions - These triggers then cause for system actions. The IE9232-F supports; Trigger I/O Relay, Trigger IP-to-Wiegand converter, Send HTTP GET/POST command, and, WebSocket notification.
POI (Persons of Interest) Management
Users can assign each person in their database into one or more groups, allowing for easier identification, and can auto-delete POI profiles based on a pre-defined date.
Groups can include VIP lists, Blocklists, Staff, Visitors, ect
Additional notes - Users can enroll a profile to their database using Web client, can manage face profiles via Web portal, and can enroll profiles in bulk using Excel and JPEG files.
Comprehensive Reports
The IE9232-F also provides users with detailed reports for recognized and un-recognized faces, that include the use of automated exception-based filters (such as; No show, Late arrival, Early leave, ect, - Ideal for employee clock-in reports).
Alongwith this, the IE9232-F is also capable of storing system-triggered action logs, with the use of search filters, allowing for users to search through events quickly, and to export results to Excel as needed (keeps evidence searches and investigations quick and efficient)
Additional notes - Users can generate face recognition reports, and filter events by Location, Time, Person's name, POI group, POI type (enrolled or un-recognised)
With these features, Vivotek Facial Recognition can work as an effective inclusion to any security system
Possible Applications
A Vivotek facial recognition system, with the IE8221-F workstation, can be beneficial to a number of different applications, with a few examples listed below:
- Identify potential troublemakers (shoplifters, criminals, barred individuals)
- Detect a VIP member upon arrival, to deliver a tailored experiance.
- Use to verify a visitor's identity.
- Provide a physical entry to commercial buildings, residences and other restricted premises.
- Use as a contatcless Staff Clock-in system

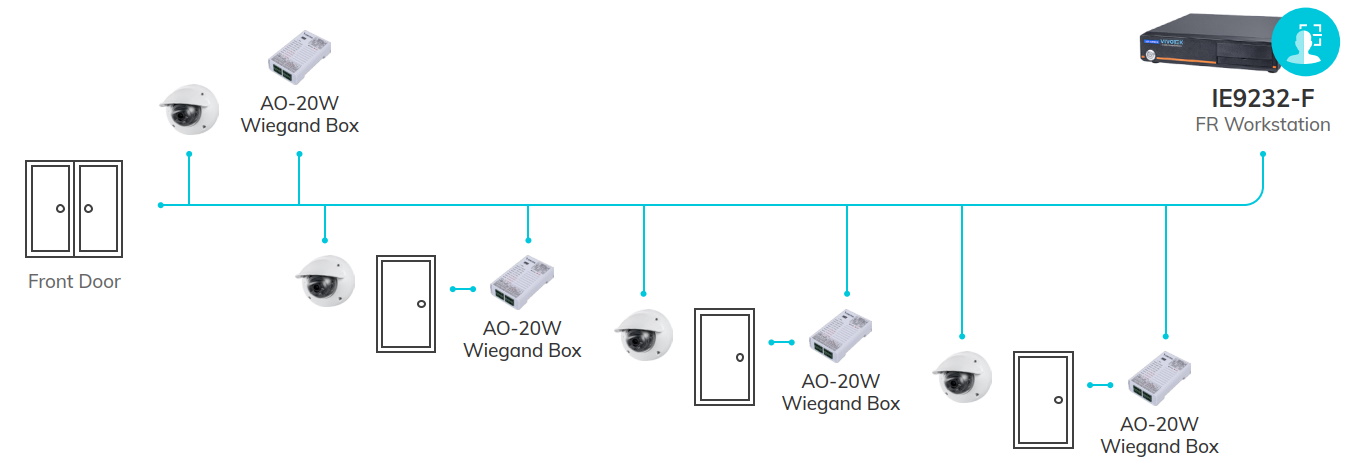

System Architecture:

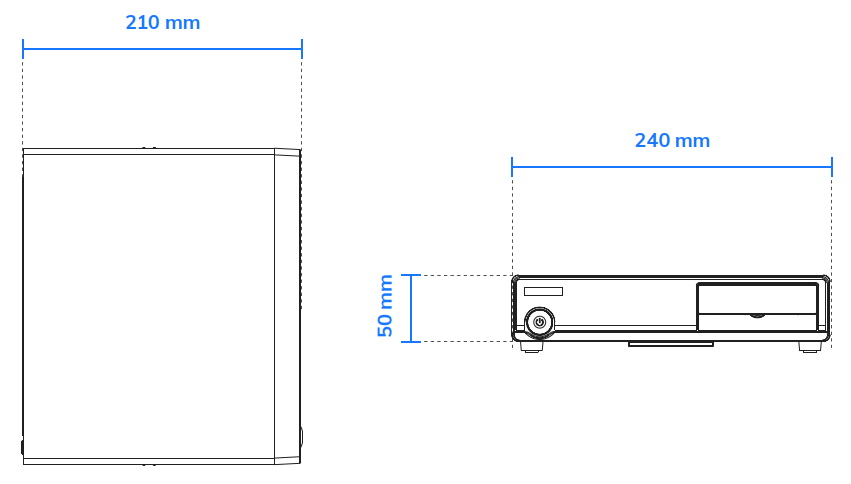

Dimensions:
Vivotek Cybersecurity
Vivotek IP Surveillance products come equipped with sufficient security features, designed to keep your footage and data as safe as possible in a world of increasing cyber-criminals and attacks.
For more information on how to keep your system secure please see our forum article on Vivotek Cybersecurity
