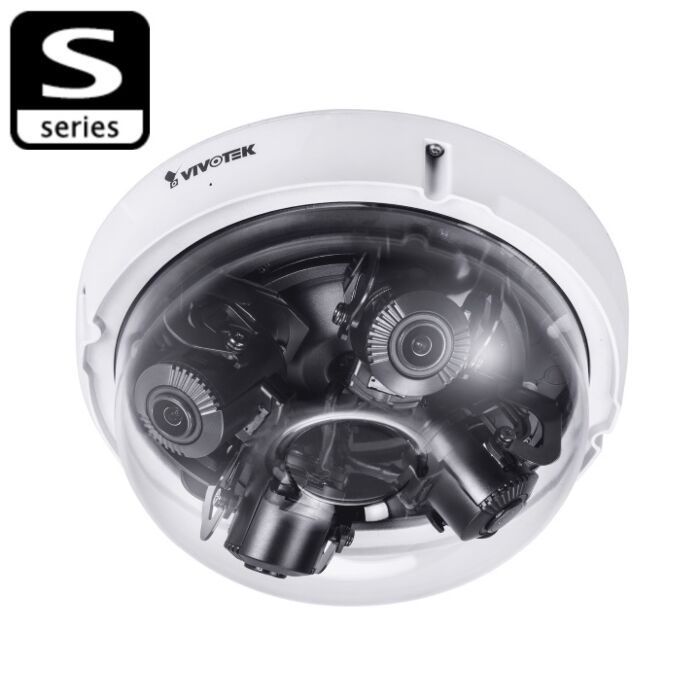

Vivotek MA9321-EHTV 20MP Multi-Sensor Adjustable Dome Network Camera

Availability: Contact Us for Stock Levels

£1,301.41 Incl VAT Excl VAT. £1,084.51

Vivotek MA9321-EHTV

Make an Offer

If you would prefer to negotiate a lower price for this item with us, please enter your offer below. We'll then connect you to our Live Chat team who will review your offer as quickly as possible.

Quick Overview

The Vivotek MA9321-EHTV is a 20MP multi-sensor dome camera with a maximum resolution of 2688x1920 (5MP) x4, and a 1/2.7" progressive CMOS chip.

Armed with 4 independent 5MP, adjustable sensors, this camera reduces the number of cameras needed, saving time on installing and costs. Each sensor has a remote focal length of 3.7 -7.7mm and with the use of 4 sensors, it provides 360° coverage.

Supported by supreme night visibility (SNV) and wide dynamic range (WDR) pro, it gives a high quality, detailed image in extremely dark and light environments.

The MA9321-EHTV comes with IP66 weather-proof housing, IK10 vandal-resistant housing and a wide working temperature of -40°C - 50°C for extreme weather conditions, with protection from the outdoor environments it makes it perfect for outdoor use.

This camera has smart stream II and H.265 compression, allowing users a saving on storage and bandwidth usage. This then works well with the built-in Micro SD/SDHC/SDXC card slot, providing extra storage space.

It comes with a built-in microphone and is powered by either PoE or by a 24V AC power supply, with a maximum power consumption of 24W.

Please note, this camera does not come with a power supply.

Vivotek Product Catalogue Accessories Manual Quick Installation Guide User Manual

Product Datasheets

Vivotek MA9321-EHTV 20MP Multi-Sensor Adjustable Dome Network Camera Datasheet (0.53MB)

Please note that this product may be subject to a 14-day lead time to fetch it from the manufacturer.

Find use-IP on Youtube   Find out more at the use-IP forum    Find the correct firmware for your camera

Key Features

- 20-Megapixel Total Resolution, (2688x1920 x4).
- Smart Stream III to Optimize Bandwidth Efficiency.
- Built-in Microphone.
- H.265 Compression Technology.
- 4 Independent Sensors, Adjustable Views
- Remote Focus.
- WDR Pro to Provide Extreme Visibility in Extremely Bright or Dark Environments.
- SNV (Supreme Night Visibility) for Low Light Conditions.
- -40°C ~ 50°C Wide Temperature Range for Extreme Weather Conditions.
- 30 fps (2688x1920) per Sensor.
- Weather-proof IP66-rated and Vandal-proof IK10-rated Housing.
- Removable IR-cut Filter for Day & Night Function.

Pack Contents
- Quick installation guide.
- Warranty card.
- Alignment Sticker.
- Desiccant bag.
- Screw Driver.
- Screws Pack.


Additional Information

Weight 1572.0000
Image chip size 1/2.7"
Image chip type Progressive CMOS
Image Compression H.264/H.265/MJPEG
Audio Two way, full duplex
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP66
Colour / monochrome True Day/Night
POE built-in Yes
POE Class Class 4 (12.95 - 25.50)
Max. Resolution 2560 X 1920
Supply Volts 24V AC, PoE
Lens Mount vari-focal lens
Viewing Angle Horizontal Field of View: 40.2° to 88.8°, Vertical Field of View: 28.6° to 59.8°, Diagonal Field of View: 49.6° to 116°
Aspect ratio N/A
Megapixels 20MP
Supplied with lens Yes
Power Consumption max 24W
Warranty 3 Years
Launch Date Summer 2019
