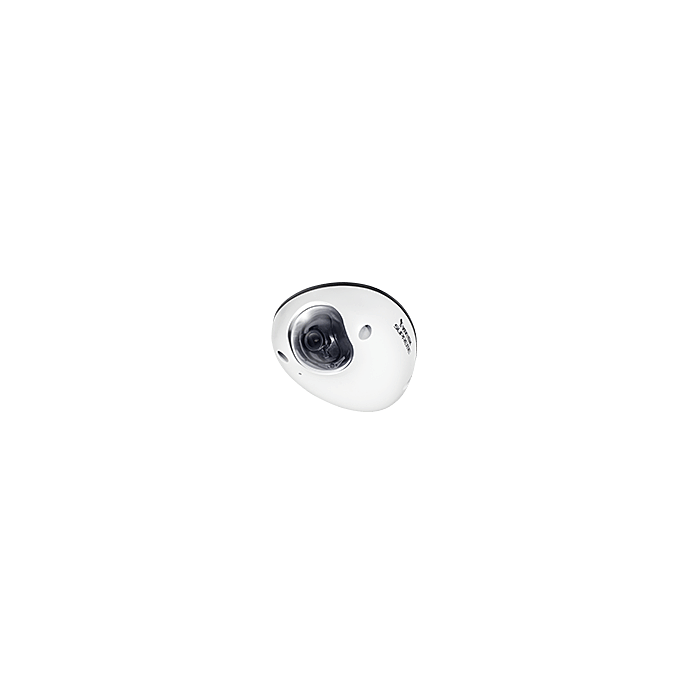

Vivotek MD8563-EH 2MP Mobile Dome Network Camera

Availability: Contact Us for Stock Levels

£532.80 Incl VAT Excl VAT. £444.00

Vivotek MD8563-EH ~ EOL

Make an Offer

If you would prefer to negotiate a lower price for this item with us, please enter your offer below. We'll then connect you to our Live Chat team who will review your offer as quickly as possible.

Quick Overview

The MD8563-EH is now End of Life.

May we recommend the Vivotek MD9560-EH as a replacement.

The Vivotek MD8563-EH is a 2MP fixed focal mobile dome network camera with 1/2.7" progressive CMOS chip and a focal length of 2.8mm.

With IP67 weather-proof housing, IK10 vandal-resistant housing, and a wide working temperature range of -40°C ~ 70°C, this camera can be for either indoor or outdoor use.

Armed with features such as wide dynamic range (WDR) pro for unparalleled visibility in high contrast environments, and fast AE for quick adaptation to light changes, allowing high quality images in low light environments. This camera also has video rotation making it perfect for a corridor scenario.

The MD8563-EH comes with smart stream II and works with H.264 compression to provide users with a huge saving on bandwidth and storage usage. It is then supported by a built-in Micro SD/SDHC/SDXC card slot, which provides up to an extra 256GB of storage.

Powered via PoE, with a maximum power consumption of 4.2W.

Quick Installation Guide
User Manual
Vivotek Product Brochure 2020

Product Datasheets

Vivotek MD8563-EH 2MP Mobile Dome Network Camera Datasheet (0.37MB)

Please note that this product may be subject to a 7~10 day lead time to fetch it from the manufacturer.

Find use-IP on Youtube   Find out more at the use-IP forum    Find the correct firmware for your camera

Key Features

- Smart Stream II to Optimize Bandwidth Efficiency.
- 30 fps @ 1920 x 1080.
- Build-in MicroSD/SDHC/SDXC Card Slot for On-board Storage.
- Weather-proof IP67, Vandal-proof IK10 Housing.
- Video Rotation for Corridor Scenario.
- Fast AE for Quick Adaptation to Light Changes.
- -40°C ~ 70°C Wide Temperature Range for Extreme Weather Conditions.
- Built-in 802.3af Compliant PoE.
- WDR Pro for Unparalleled Visibility in High Contrast Environments.
- EN50155 TX Compliance for Professional Mobile Surveillance.

Pack Contents
- Quick installation guide.
- Alignment Sticker.
- Screw Driver.
- Accessories Bag.

Additional Information

Weight 455.0000
Image chip size 1/2.7"
Image chip type Progressive CMOS
Image Compression MJPEG & H.264
Audio Two-way
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP67
POE built-in Yes
POE Class Class 2 (3.84-6.49W)
Max. Resolution 1920 X 1080
Supply Volts POE only
Lens Mount fixed focus
Lens Focal Length 2.8mm
Viewing Angle Horizontal Field of View: 114°, Vertical Field of View: 65°, Diagonal Field of View: 119°
Aspect ratio N/A
Megapixels 2 MP
Supplied with lens Yes
ONVIF Compatible Yes
Power Consumption max. 4.2W
Warranty 3 Years
Launch Date March 2019
