Vivotek MD8564-EH 2MP Mobile Dome Network Camera

Availability: Out of Stock

£819.60 Incl VAT Excl VAT. £683.00

Vivotek MD8564-EH-EOL

Make an Offer

If you would prefer to negotiate a lower price for this item with us, please enter your offer below. We'll then connect you to our Live Chat team who will review your offer as quickly as possible.

Quick Overview

The Vivotek MD8564-EH 2MP Mobile Dome Network Camera is now End of Life.

Although there is no direct replacement for this model, may we direct you to other Vivotek Domes or the rest of the Vivotek Range

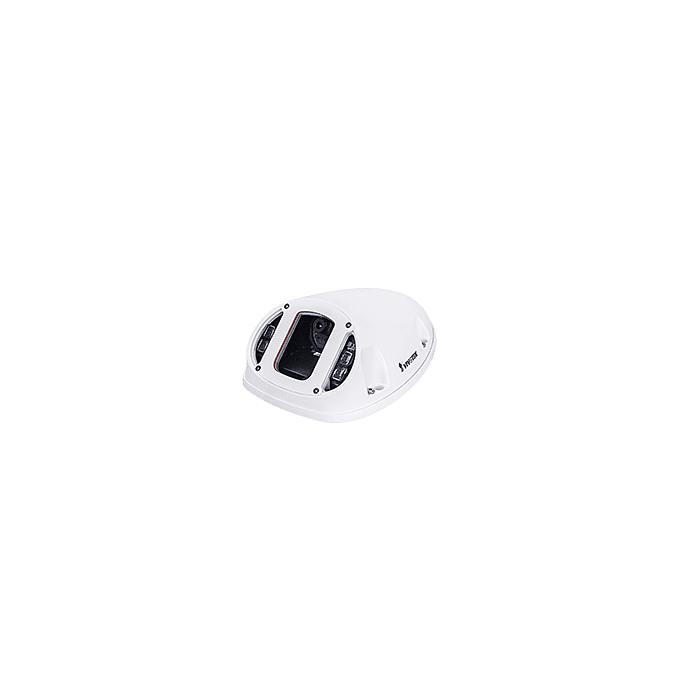

The Vivotek MD8564-EH is a 2MP fixed focal mobile dome camera with 1/2.7" progressive CMOS chip and a focal length of 6mm.

Due to the design of the camera being specifically to be mounted onto the exterior of a vehicle, it allows for great features such as fast AE for quick adaptation to light changes and wide dynamic range (WDR) pro for visibility in high contrast environments.

The MD8564-EH comes with smart stream III, which reduces the amount of bandwidth and storage consumed by up to 50% although still giving high standards of image quality. It also comes with H.264 & MJPEG, and an on-board memory card slot that supports MicroSD/SDHC/SDXC and gives extra storage space.

With a weather-proof housing rate of IP6K9K/IP68 and a vandal-proof housing rate of IK10 the camera is protected from harsh conditions. It also has a working temperature of -40°C ~ 70°C and a de-icing function wither internal heating glass making it suitable for any climate.

Armed with built-in IR illuminators, the MD8564-EH is able to provide a great quality image in complete darkness for up to 30m. It is also able to provide a reliable recording during all kinds of movement that the vehicle may make, whether that be vibrations, shock or electromagnetic interference.

This camera is powered by PoE with a maximum power consumption of 10W (IR on), 5.7W (IR off). The heater is powered by a 24V DC power supply with a maximum power consumption of 50W.

Quick Installation Guide User Manual

Product Datasheets

Vivotek MD8564-EH 2MP Mobile Dome Network Camera Datasheet (0.33MB)

Please note that this product may be subject to a 14-day lead time to fetch it from the manufacturer.

Find use-IP on Youtube   Find out more at the use-IP forum    Find the correct firmware for your camera

Key Features

- De-icing Function with Internal Heating Glass.
- Built-in IR Illuminators, Effective up to 30 Meters.
- Weather-proof IP6K9K/IP68-rated, Vandal-proof IK10+ and NEMA 4X-rated Housing.
- Smart Stream II to Optimize Bandwidth Efficiency.
- 30 fps @ 1920x1080.
- M12 Connector for PoE/Network.
- Fast AE for Quick Adaptation to Light Changes.
- WDR Pro for Unparalleled Visibility in High Contrast Environments.
- -40°C ~ 70°C Wide Temperature Range for Extreme Weather Conditions.
- EN50155 TX Compliance for Professional Mobile Surveillance.

Pack Contents
- Quick installation guide.
- Warranty card.
- Alignment Sticker.
- Screw driver.
- Accessories bag.
- Software CD.

Additional Information

Weight 1370.0000
Image chip size 1/2.7"
Image chip type Progressive CMOS
Image Compression MJPEG & H.264
Audio Two-way
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP69K
POE built-in Yes
POE Class Class 0 (0.44-12.95W)
Max. Resolution 1920 X 1080
Supply Volts POE only
Lens Mount fixed focus
Lens Focal Length 6mm
Viewing Angle Horizontal Field of View: 57°, Vertical Field of View: 30°, Vertical Field of View: 65°
Aspect ratio N/A
Megapixels 2 MP
Supplied with lens Yes
IR Range Up to 30m
ONVIF Compatible Yes
Warranty 3 Years
Launch Date March 2019
