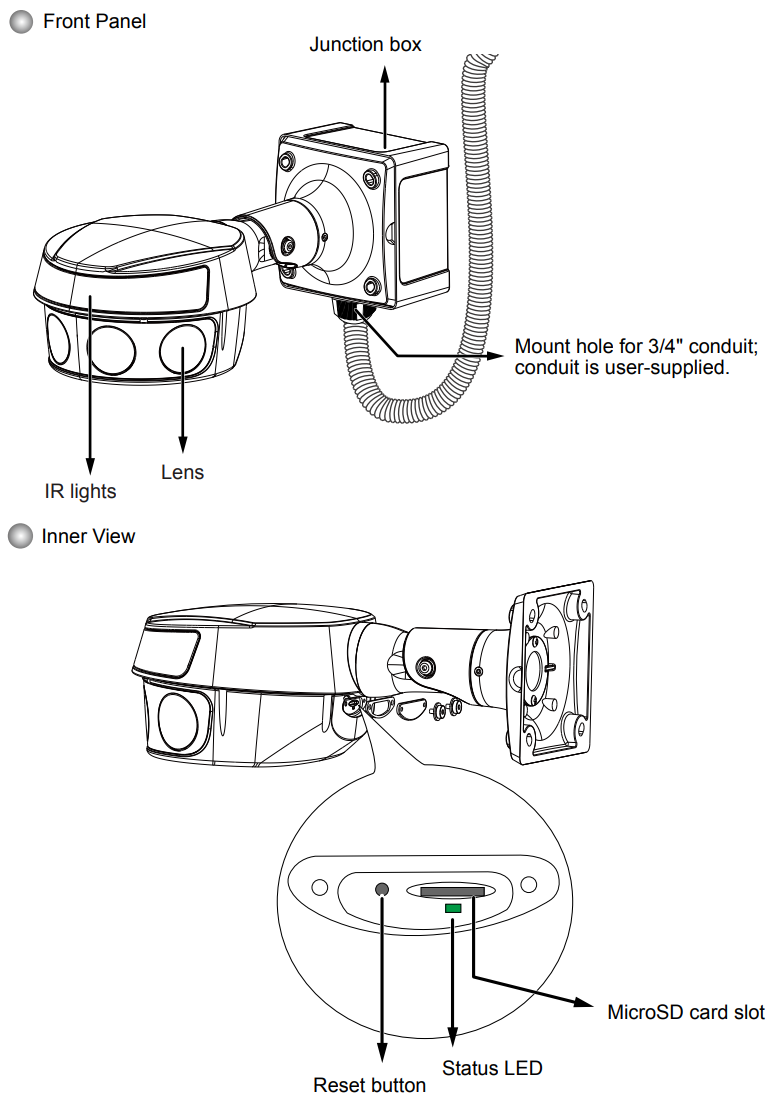

MS9321-EHV View


Find use-IP on Youtube   Find out more at the use-IP forum    Find the correct firmware for your camera

1,472.40

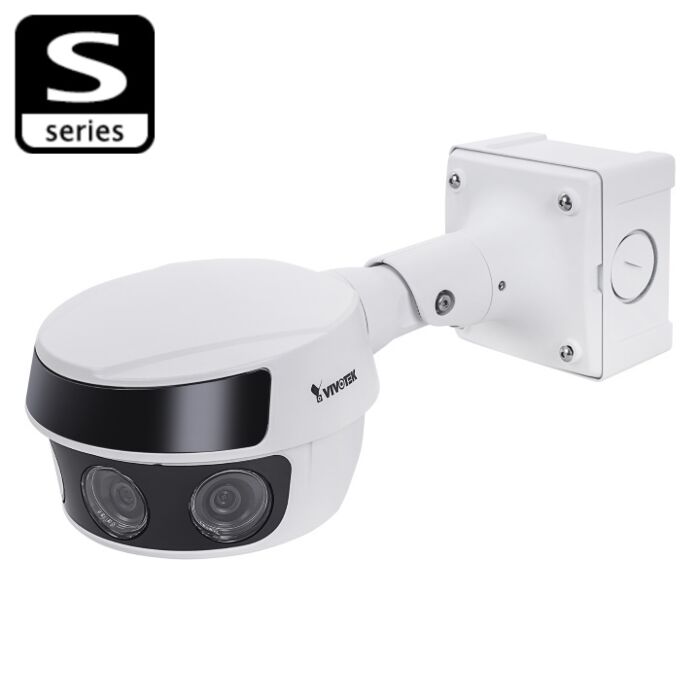

Vivotek MS9321-EHV 20MP Extended Temperature 180° Multi-sensor Camera

Availability: Available for delivery in 7~10 days

£1,472.40 Incl VAT Excl VAT. £1,227.00

Vivotek MS9321-EHV

Make an Offer

If you would prefer to negotiate a lower price for this item with us, please enter your offer below. We'll then connect you to our Live Chat team who will review your offer as quickly as possible.

Quick Overview


The Vivotek MS9321-EHV is a 20 megapixel (4 x 5MP) multiple sensor camera which is able to monitor full 180° horizontal views.

Like its predecessor MS8391-EV, the MS9321-EHV has the Video Alignment feature that allows you to adjust the positioning and image quality of each sensor, enabling users to view a seamless picture, with no repetition.

Featuring Smart Stream III technology to ensure maximum bandwidth efficiency by combining both H.265 and Smart Stream III both bandwidth and storage consumption can be reduced by up to 90%.


Smart Stream III

MS9321-EHV Features

Included Accessories:
- Quick installation guide
- Alignment sticker
- Screw pack
- Warranty card
- Junction box


iOS Vivotek App Store - Android Vivotek App Store


Vivotek MS9321-EHV User Manual
Vivotek MS9321-EHV Quick Installation Guide
Vivotek MS9321-EHV Accessory Chart
Vivotek Product Brochure 2020

Product Datasheets

Vivotek MS9321-EHV 20MP Extended Temperature 180° Multi-sensor Camera Datasheet (1.16MB)


Please note that this product may be subject to a 7~10 day lead time to fetch it from the manufacturer.


Trend Micro

3 year free trial version from manufacturing time (click for more info)

Extend License here

MS9321-EHV View


Find use-IP on Youtube   Find out more at the use-IP forum    Find the correct firmware for your camera

Frequently bought together

Key Features

- H.265 compression technology
- 20MP panoramic 180° view
- 30fps @ 7680 x 2560 (WDR Pro on)
- Smart Stream III to optimise bandwidth efficiency
- WDR Pro (120dB) for unparalleled visibility in extremely bright and dark environments
- SNV (supreme night visibility) for low light conditions
- Built-in IR illuminators with Smart IR II, effective up to 30 metres
- Trend Micro IoT security
- Weather resistant IP66 rated and vandal resistant IK10 rated housing

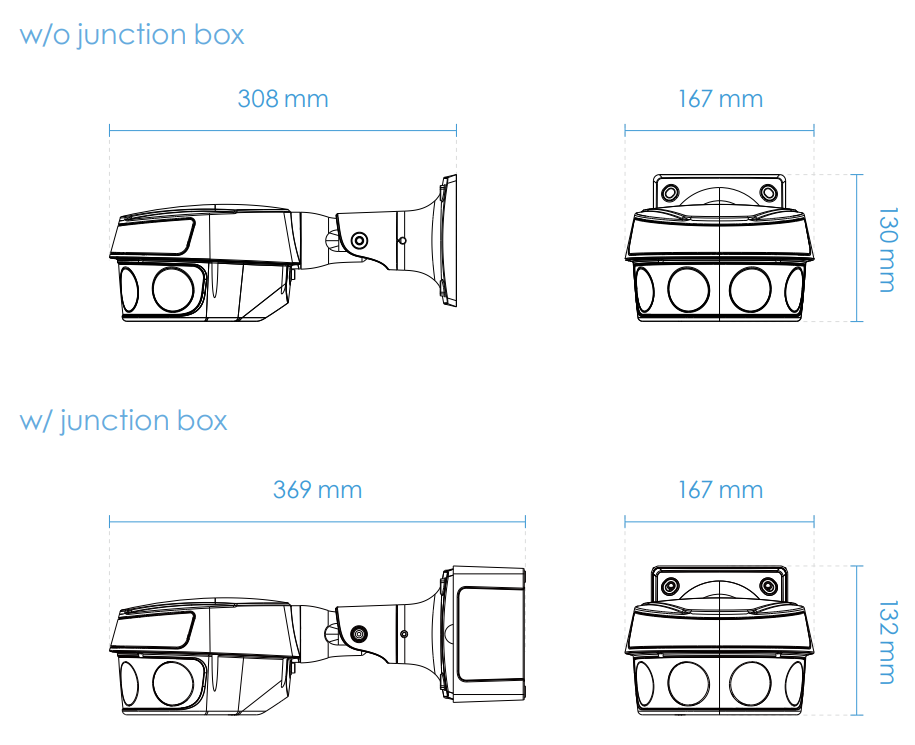

MS9321-EHV Dimensions

Vivotek Naming Rule

Additional Information

Weight 2400.0000
Image chip size 1/2.7"
Image chip type Progressive CMOS
Image Compression H.265,H.264,MJPEG
Audio Two way, full duplex
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP66
Colour / monochrome True Day/Night
POE built-in Yes
POE Class Class 4 (12.95 - 25.50)
Max. Resolution 7680 x 2560
Min. low-light lux 0.005
Supply Volts 24VAC or POE
Lens Mount fixed focus
Lens Focal Length 3.8mm
Viewing Angle 180° Horizontal Field of View
Aspect ratio N/A
Megapixels 4 x 5MP
Supplied with lens Yes
IR Range Up to 30m
ONVIF Compatible Yes
Power Consumption max. 24.65W
Warranty 3 Years
Launch Date Summer 2020
