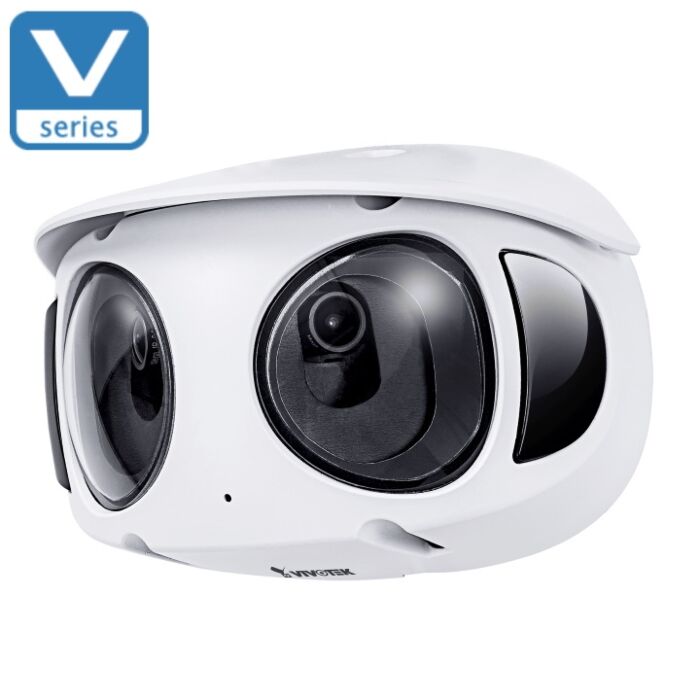

Vivotek MS9390-HV Multi-Sensor 8MP Dome Camera

Availability: Contact Us for Stock Levels

£906.00 Incl VAT Excl VAT. £755.00

Vivotek MS9390-HV

Make an Offer

If you would prefer to negotiate a lower price for this item with us, please enter your offer below. We'll then connect you to our Live Chat team who will review your offer as quickly as possible.

Quick Overview

The Vivotek MS9390-HV is an 8MP panoramic dome camera that uses two wide angle lenses and electronic image stitching to create a 180° image. The MS9390-HV captures a higher vertical field of view than most multi-sensor panoramic cameras, allowing the user to capture a larger area.

This camera can capture up to 30fps and its built-in infra-red illuminators allow it to continue capturing 180° footage up to 20m in the dark, making it a 24/7 solution. The MS9390-HV also benefits from an IP66 weatherproof-rated and IK10 vandal resistant-rated housing meaning it can be used both indoors and outdoors.

The MS9390-HV comes with a sunshield included and doesn't need any other accessories as it can be mounted directly on to a wall thanks to its 20° of internal tilt adjustment which allows users to get the exact angle that they desire.

Vivotek MS9390-HV Features

Trend Micro
3 year free trial version from manufacturing time (click for more info)

Extend License here

This item is a special order product and may not be available for immediate delivery. Please check with us before purchasing as it could take 7~10 days to fetch from Vivotek.

Vivotek MS9390-HV User Manual
Vivotek MS9390-HV Quick Installation Guide
Vivotek Product Brochure 2020

Product Datasheets

Vivotek MS9390-HV Multi-Sensor 8MP Dome Camera Datasheet (0.34MB)

AWS Logo

Amazon Kinesis Video Streams Integrated Device

Vivotek MS9390-HV View

Find use-IP on Youtube   Find out more at the use-IP forum    Find the correct firmware for your camera

iOS Vivotek App Store - Android Vivotek App Store

Key Features

- 8-Megapixel Resolution
- H.265 Compression Technology
- 180° Panoramic View
- 30 fps @ 4512x1728
- Video Alignment For a Seamless Image
- Smart Stream III to Optimize Bandwidth Efficiency
- Built-in IR Illuminators, Effective up to 20 Meters
- SNV (Supreme Night Visibility)
- 3D Noise Reduction for Low-light Conditions
- Built-in Microphone
- Built-in MicroSD/SDHC/SDXC Card Slot
- Weather-proof IP66-rated and Vandal-proof IK10-rated Housing

Vivotek Naming Rule

Additional Information

Weight 1207.0000
Image chip size 1/2.7"
Image chip type Progressive CMOS
Image Compression H.264/H.265/MJPEG
Audio One way, built-in microphone
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP66
POE built-in Yes
POE Class Class 4 (12.95 - 25.50)
Max. Resolution 4512 x 1728
Min. low-light lux 0 Lux (IR LED ON)
Supply Volts POE only
Lens Mount fixed focus
Lens Focal Length 2.8mm
Viewing Angle 180° Horizontal Field of View
Aspect ratio N/A
Megapixels 8 MP
Supplied with lens Yes
IR Range Up to 20m
Max. Images per second 30
ONVIF Compatible Yes
Power Consumption max. 15.2W
Warranty 3 Years
Launch Date Spring 2018
