Amazon Kinesis Video Streams Integrated Device

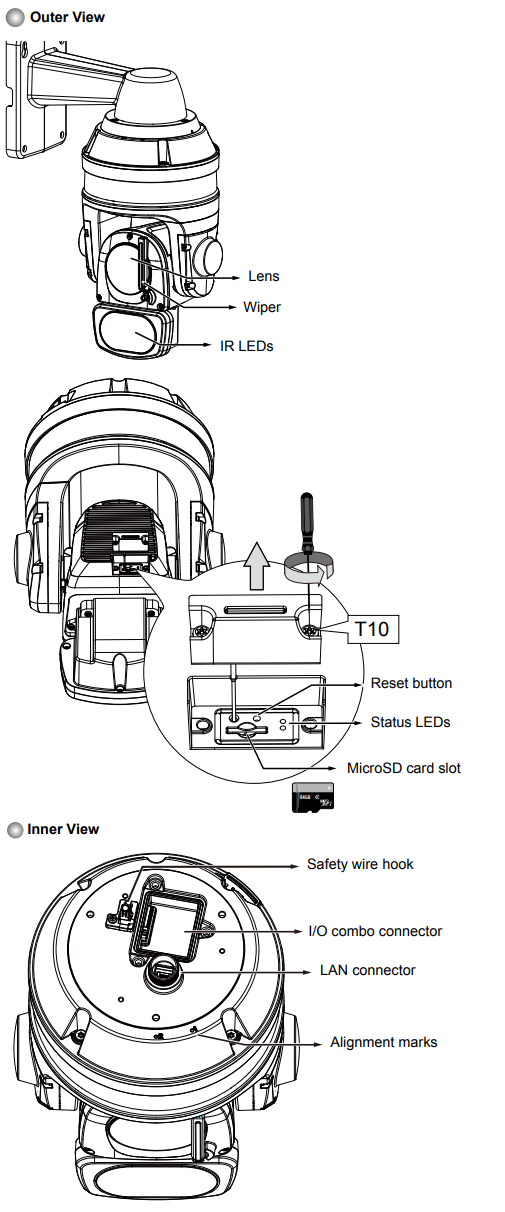

SD9366-EH-v2 View


Find use-IP on Youtube   Find out more at the use-IP forum    Find the correct firmware for your camera


iOS Vivotek App Store - Android Vivotek App Store

2,832.00

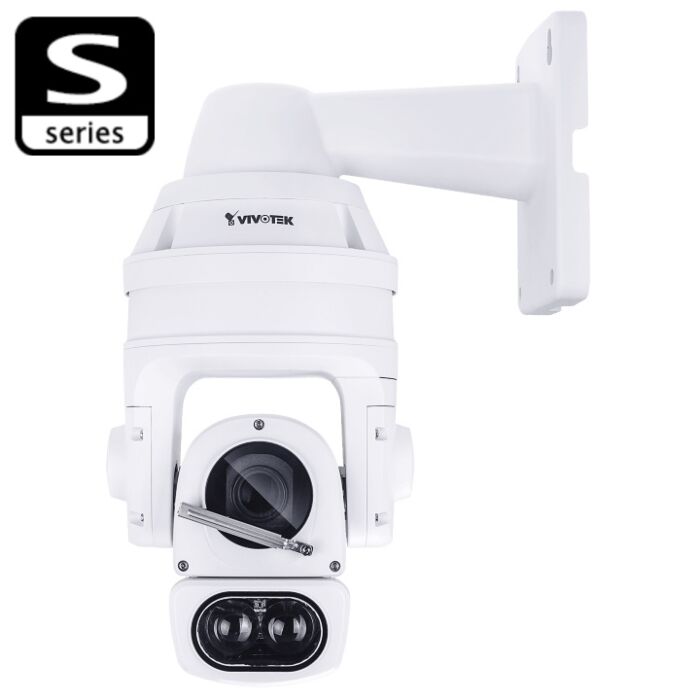

Vivotek SD9366-EH-v2 2MP Extended Temperature Speed Dome Camera

Availability: Available for delivery in 7~10 days

£2,832.00 Incl VAT Excl VAT. £2,360.00

Vivotek SD9366-EH-v2

Make an Offer

If you would prefer to negotiate a lower price for this item with us, please enter your offer below. We'll then connect you to our Live Chat team who will review your offer as quickly as possible.

Quick Overview


The Vivotek SD9366-EH-v2 is a 2 megapixel speed dome camera with built-in wiper for easy cleaning.

Specifically designed to enhance low light surveillance, the SD9366-EH-v2 is equipped with IR illuminators effective up to 250m, Smart IR II, Vari angle IR, WDR Pro and 30x optical zoom.

The camera features a weather resistant IP66, vandal resistant IK10 and NEMA 4X rated housing to protect the camera against rain, dust and corrosion.

Vivotek's Smart Stream II reduces both bandwidth and storage consumption by up to 80%, while maintaining the camera's high quality image.


Smart Stream II

Vivotek SD9364-EH-v2

Included Accessories:
- Wall mount bracket
- I/O cable
- Screws
- Waterproof connectors
- Terminal blocks
- Quick installation guide
- Warranty card
- Alignment sticker
- Ground wire
- T25 star driver
- Desiccant bags


Trend Micro
3 year free trial version from manufacturing time (click for more info)

Extend License here


Please note that this product may be subject to a 7~10 day lead time to fetch it from the manufacturer.


Vivotek SD9366-EH-v2 User Manual
Vivotek SD9366-EH-v2 Quick Installation Guide
Vivotek SD9366-EH-v2 Accessory Chart
Vivotek Product Brochure 2020

Product Datasheets

Vivotek SD9366-EH-v2 2MP Extended Temperature Speed Dome Camera Datasheet (0.80MB)


AWS Logo

Amazon Kinesis Video Streams Integrated Device


SD9366-EH-v2 View


Find use-IP on Youtube   Find out more at the use-IP forum    Find the correct firmware for your camera


iOS Vivotek App Store - Android Vivotek App Store

Key Features

- H.265 compression technology
- 1080p full HD CMOS sensor
- 60fps @ 1080p full HD
- 30x zoom lens
- 250m IR Smart IR II (vari angle IR)
- 360° continuous pan and 220° tilt
- Removable IR-cut filter for day and night function
- WDR Pro for unparalleled visibility in high contrast environments
- Weather resistant IP66 rated, vandal resistant IK10 and NEMA 4X rated housing
- -50°C ~ 55°C wide dynamic temperature range for extreme weather conditions
- EIS (electronic image stabilisation) to control image stability
- Easy cleaning with built-in wiper

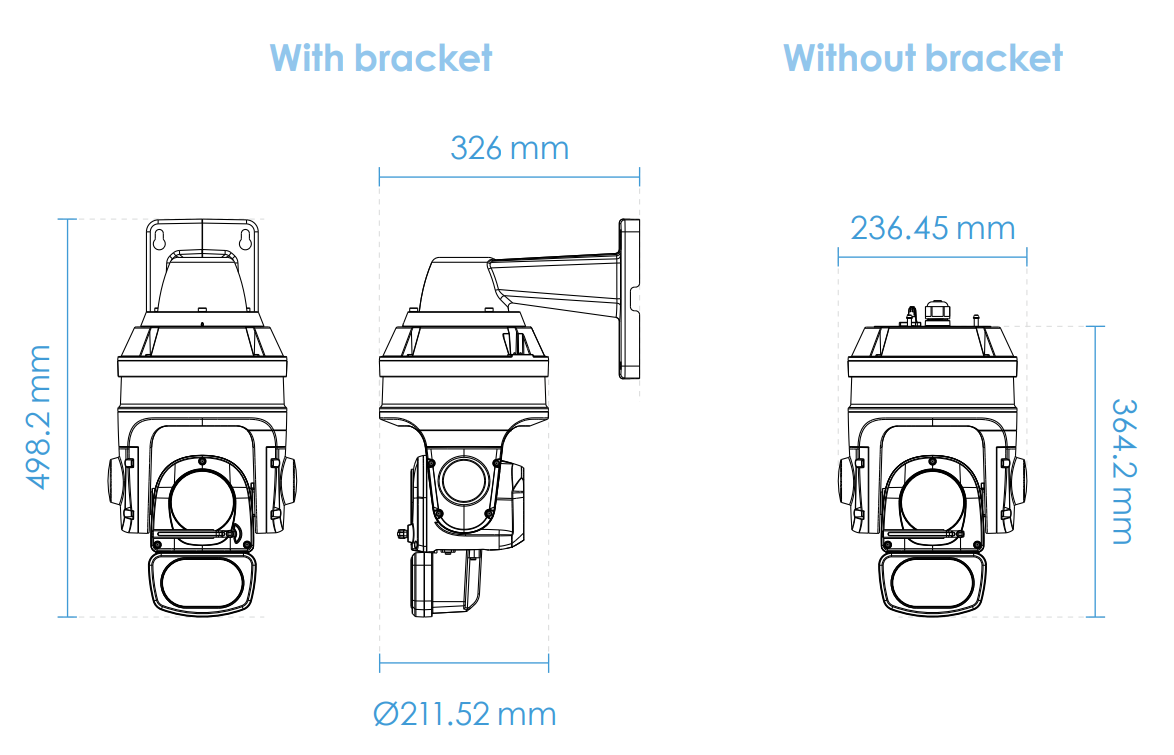

SD9366-EH-v2 Dimensions

Additional Information

Weight 7100.0000
Image chip size 1/2.8"
Image chip type Progressive CMOS
Image Compression H.265,H.264,MJPEG
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP66
Colour / monochrome True Day/Night
POE built-in Yes
Max. Resolution 1920 X 1080
Min. low-light lux 0.01
Supply Volts 24V AC/DC or PoE
Lens Mount optical zoom lens
Lens Focal Length 4.3~129mm
Viewing Angle 2.3° ~ 64° Horizontal Field of View
Aspect ratio 16:9
Megapixels 2 MP
Supplied with lens Yes
Accepts auto-iris lens DC Iris
IR Range Up to 250m
Max. Images per second 60
ONVIF Compatible Yes
Power Consumption max. 70W
Warranty 3 Years
Launch Date Summer 2020
