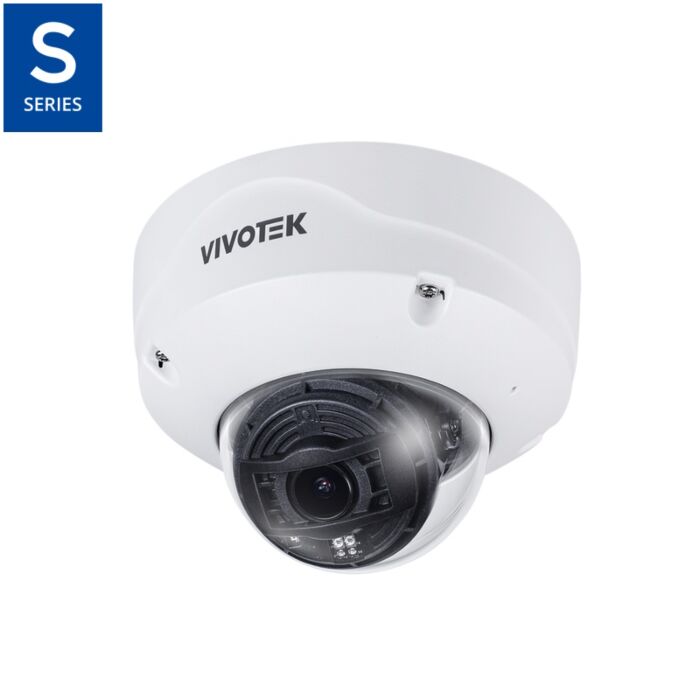

Vivotek FD9365-EHTV-v2 2MP Fixed Dome Camera, with Motorised Vari-focal Lens
SKU: FD9365-EHTV-v2
Out of stock
Due to ongoing global supply chain constraints, Vivotek UK has advised that this product is currently unavailable to order. Please contact us for an alternative recommendation or with any questions.
Key Features:
- 2MP 1920x1080 Image Resolution, at up to 60 fps
- Motorised, Varifocal Lens, with support for Remote Focus
- Focal Length - 4 ~ 9 mm
- Lens Specs - Aperture: F1.3 ~ F2.2 | Iris Type: P-iris
- IR Illumination - up to 50m, with Smart IR II and IR LED 4
- Impressive Low Light performance - WDR Pro II, Day/Night functionality, and SNV II
- ePTZ Functionality - 48x digital zoom (4x on IE plug-in / 12x built-in)
- Pan / Tilt Range - ±175° (pan) / 80° (tilt)
- 8GB Flash, 2GB RAM
- Supports Live Viewing for up to 10 clients
- Features a selection of Alarms, Events, and AI Analytics (includes; Vision Object Analytics and AI-powered image enhancement)
- Audio - Two-way, Full Duplex, with built-in Microphone (effective up to 5m)
- Vandal Resistant - IK10 impact rating
- Weather-proof - IP66 / IP67 / IP6K9K ingress protection
- Operating Conditions - Temperature: -50°C ~ 60°C (IR off) / 50°C (IR on) | Humidity: 98% RH (non-condensing)
- 3 Year Warranty
- ONVIF (profiles G, S, and T) and NDAA compliant
This camera is powered by 24V AC, 12V DC or PoE. We recommend using PoE.
Please note this camera is supplied without a power supply.
Vivotek Product Brochure
Vivotek FD9365-EHTV-v2 User Manual
Vivotek FD9365-EHTV-v2 Quick Installation Guide
Please contact us for stock levels of this product.
If in stock in Europe please allow 7-10 working days for delivery.
Details
The FD9365-EHTV-v2 is a Fixed Dome camera, with 2MP image resolution, and a 4~9mm motorised varifocal lens. It also comes equipped with AI capabilities, for impressive image enhancement and surveillance analytics.
Image Enhancement
Supreme Night Visibility (SNV) II - SNV is a technology designed to improve a camera's image clarity and performance in low light conditions. This allows for footage to remain clear in low light environments / at night.
Wide Dynamic Range (WDR) Pro II - WDR works to improve image visibility in challenging lighting conditions (This camera is equipped with 140dB Dynamic Range).
IR Supplement Light - With up to 50m IR illumination, powered by Smart IR II, and IR LED 4, clear footage can be captured more effectively in low lighting conditions.
Image Settings - Users can also choose from a selection of image settings, to enhance their footage as required. These include; Video Orientation (flip, mirror, rotate), Day/Night settings, Illuminators, White Balance, Image Adjustment (brightness, contrast, saturation, etc), Defog, 3DNR (3D noise reduction), EIS (electronic image stabilisation), Exposure control, and more..
Alarms, Events, and AI Analytics
AI Analytics -
Vision Object Analytics: Object Detection (people / vehicle, 4-wheeled and 2-wheeled), Attribute Extraction (people - gender, colour, accessories / vehicle - type, colour), Re-Search Extraction, and, Path Extraction.
Event Applications: Deep Learning VCA - Smart Motion Detection (people detection, vehicle detection, time filter), and, Smart VCA (intrusion, loitering, line-crossing, unattended object, missing object, face, crowd, and running detection).
Event Triggers -
Audio detection, Camera Tampering detection, Cybersecurity events (brute-force attack, cyberattack, quarantine), Digital Input, Manual trigger, Motion detection, Periodical trigger, Recording notification, SD card Life Expectancy, Shock detection, and System boot.
Event Actions -
Event Notification via; Audio clip, Camera link, Digital output, Email, HTTP, FTP/SFTP, NAS server, or SD card.
File Upload via; Email, HTTP, FTP/SFTP, NAS server, or SD card.
DORI: Detect, Observe, Recognise, Identify
A camera's DORI distance provides users with a general overview of its capability to distinguish between people and objects found within its field of view.
| DORI | Detect | Observe | Recognise | Identify |
| Definition | 25ppm / 8ppf | 63ppm / 19ppf | 125ppm / 38ppf | 250ppm / 76ppf |
| Distance (Wide / Tele) | 42.5m / 96m | 17m / 38.4m | 8.4m / 19.2m | 4.1m / 9.6m |
Packing Contents:
- Quick Installation Guide
- Product Labels
- Alignment Sticker
- L-shaped Wrench
- Screw Pack
- Waterproof accessory Pack
- Sunshield
- Conduit Bracket
- I/O Cable

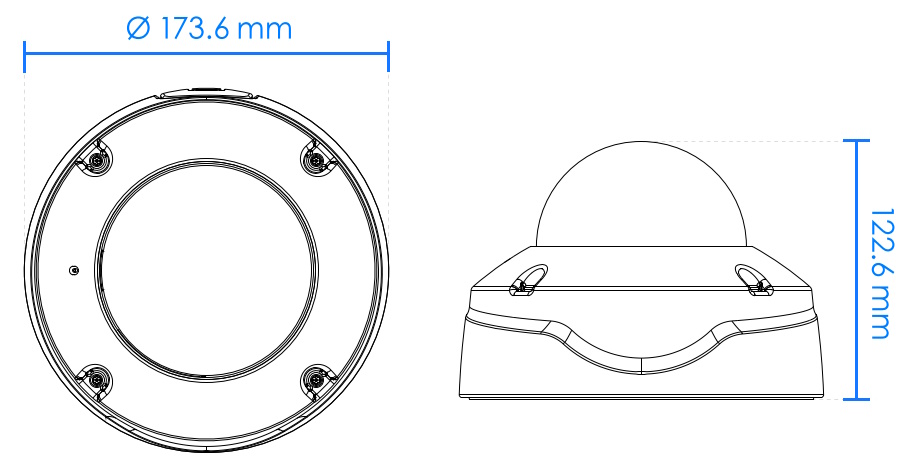

Dimensions:
