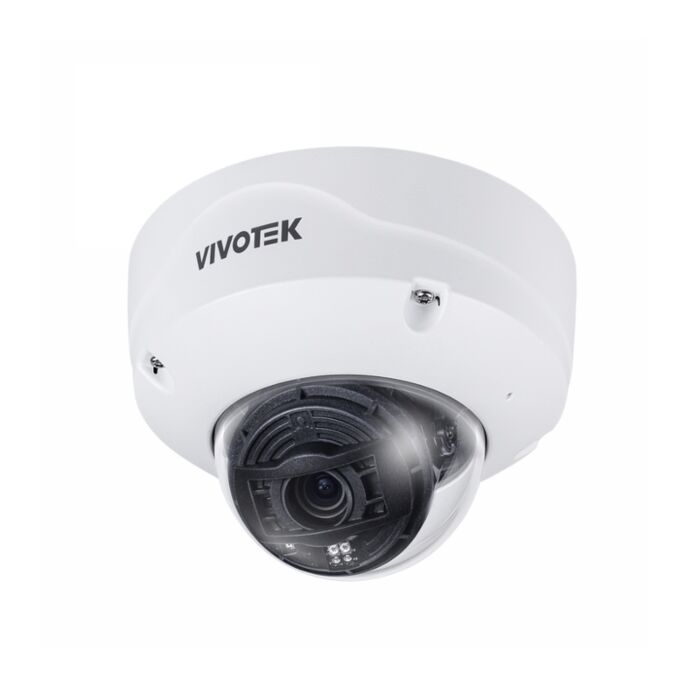

Vivotek FD9391-EHTV-v2 4K (8MP) Fixed Outdoor Dome Camera
SKU: FD9391-EHTV-v2
Contact Us for Stock Levels
Key Features:
- 4K (8MP) 3840x2160 Image Resolution
- 4.4 ~ 10.2mm P-Iris Lens
- IR Illumination - Smart IR III effective up to 50m
- ±175° Pan range, 80° Tilt range, 48x Digital zoom (4x on IE plug-in, 12x built-in)
- 120dB WDR (Wide Dynamic Range) - for improved detail and visibility in scenes with challenging lighting conditions
- Image Enhancement settings - Smart IR, White balance, Image adjustment, Defog, 3DNR (3D noise reduction), EIS (electronic image stabilisation), BLC (backlight compensation), HLC (highlight compensation)
- Two-way, Full Duplex Audio with built-in Microphone (effective up to 5m)
- Features support for a selection of AI Analytics, Events, and Alarms
- Supports Live viewing for up to 10 clients
- Equipped for Outdoor application - IP66/67 Ingress Protection rating
- Vandal Resistant - IK10 Impact rating
- Operating Conditions | Temperature - -30°c ~ 60°c (starting) -50°c ~ 60°c (working) | Humidity - 98% (non-condensing)
- ONVIF (profiles G, S, and T) and NDAA Compliant
This camera is powered by 24V AC, 12V DC or PoE. We recommend using PoE.
Please note this camera is supplied without a power supply.
Vivotek Product Brochure
Vivotek FD9391-EHTV-v2 User Manual
Vivotek FD9391-EHTV-v2 Quick Installation Guide
Please contact us for stock levels of this product.
If in stock in Europe please allow 7-10 working days for delivery.
Details
The FD9391-EHTV-v2 is a 4K (8MP) resolution Dome Camera from Vivotek, equipped with a variety of AI Analytics, Events / Alarms, Image settings, and a design suited for application in outdoor environments.
Image Settings
With support for a selection of Image Enhancement capabilities, to keep surveillance footage clear and detailed at all times, the FD9391-EHTV-v2 offers a variety of Image Settings, including:
General Settings - Video Title and Time Stamp overlay, Video Orientation (flip, mirror, rotation), Day/Night Settings, and Illuminators
Image Enhancement Settings - White balance, Image adjustment (brightness, contrast, saturation, sharpness, gamma curve), Defog, 3DNR (3D noise reduction), LDC (lens distortion correction), EIS (electronic image stabilisation), Scene mode (auto, deblur), BLC (backlight compensation), HLC (highlight compensation), Exposure control (level, iris adjustment, exposure time, gain control, iris mode), 120dB WDR (wide dynamic range)
AI Analytics
Vision Object Analytics - Object detection: people / vehicle (2-wheeled, 4-wheeled), Attribute extraction: people (gender, colour, accessories) / vehicle (vehicle type and colour), Re-Search extraction
Event Applications - Smart Motion detection (people / vehicle detection, and time filter), Smart VCA (intrusion, loitering, line-crossing, unattended object, missing object, face, crowd, running, restricted zone, and parking violation detection)
Also Features; Built-in CNN acceleration mode, Smart IR III (for AI-powered Image Enhancement), and, Deep Learning VCA (Smart Motion detection, and Smart VCA - mentioned above)
Alarms and Events
Event Triggers - Audio detection, Camera Tampering detection, Cybersecurity events (brute force attack, cyberattack, quarantine event), Digital input, Manual trigger, Motion detection, Periodical trigger, Recording notification, SD card life expectancy, Shock detection, System boot
Event Actions - Event notification via Audio clip, Camera link, Digital output, Email, HTTP, FTP/SFTP, NAS server, or SD card, and File upload via Email, HTTP, FTP/SFTP, NAS server, or SD card
DORI: Detect, Observe, Recognise, Identify
A camera's DORI distance provides users with a general overview of its capability to distinguish between people and objects found within its field of view.
| DORI | Detect | Observe | Recognise | Identify |
| Definition | 25PPM / 8PPF | 63PPM / 19PPF | 125PPM / 38PPF | 250PPM / 76PPF |
| Distance (Wide / Tele) | 88.7m / 204.5m | 35.5m / 81.8m | 17.7m / 40.9m | 8.8m / 20.4m |
Packing Contents:
- Quick Installation Guide
- Product Labels
- Alignment Sticker
- L-shaped Wrench
- Screw pack
- Waterproof Accessory pack
- Sunshield
- Conduit Bracket
- I/O Cable

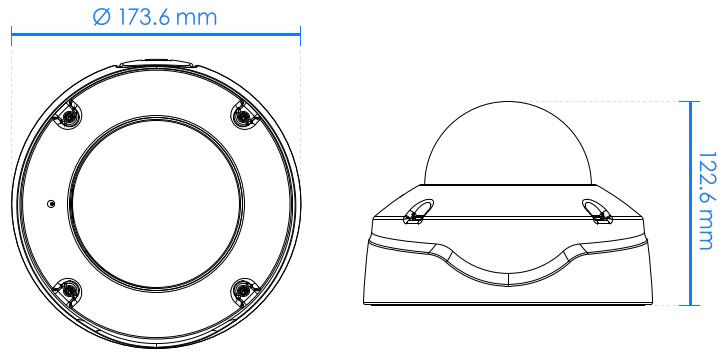

Dimensions:
