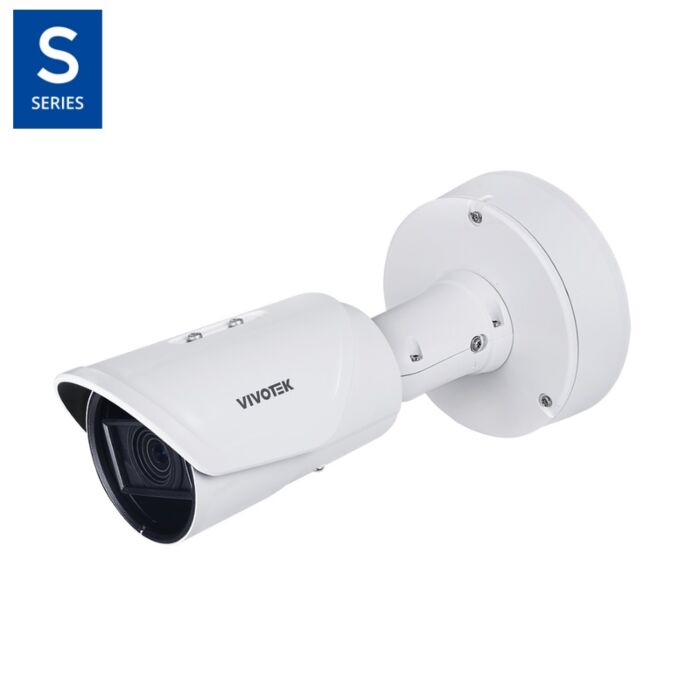

Vivotek IB9391-EHTV-v2 4K (8MP) Bullet Network Camera
SKU: IB9391-EHTV-v2
Contact Us for Stock Levels
Key Features:
- 4K Image Quality | Max. Resolution - 3840x2160 at 30fps
- System Memory - 8GB Flash, 2GB RAM
- 4.4mm ~ 10.2mm Motorised Vari-focal Lens, with remote focus
- Features Pan/Tilt/Zoom Functionalities | Pan range - ±180° | Tilt range - 90° | 48x Digital zoom
- Features Built-in IR Illuminators, with Smart IR III - up to 50m/100m
- 120dB WDR (Wide Dynamic Range) Pro - for improved visibility in extremely bright and dark environments
- SNV (Supreme Night Visibility) - for impressive performance in low light conditions
- Features support for AI-powered Analytics and Smart VCA
- Supports Live Viewing for up to 10 clients
- Impressive Security features - Signed firmware, Secure boot, and Trend Micro IoT cybersecurity
- Weather Resistant - IP66/67 ingress protection | Vandal Proof - IK10 impact rating
- Suited for Outdoor Application
- Operating Conditions | Temperature - -50°c ~ 60°c (50°c with IR on) | Humidity - 98% RH (non-condensing)
- ONVIF (profiles G, S, and T) and NDAA Compliant
- Backed by a 3 Year Warranty
This camera is powered by 24V AC, 12V DC or PoE. We recommend using PoE.
Please note this camera is supplied without a power supply.
Vivotek Product Brochure
Vivotek SD9161-H-v2 User Manual
Vivotek SD9161-H-v2 Quick Installation Guide
Please contact us for stock levels of this product.
If in stock in Europe please allow 7-10 working days for delivery.
Details
The IB9391-EHTV-v2 from Vivotek, is a 4K (8MP) resolution Bullet camera, with PTZ (pan, tilt, and zoom) capabilities.
Equipped for Outdoor application, with IP66/67 Ingress protection and IK10 vandal resistance, the IB9391-EHTV-v2 is suitable for a number of different application environments.
It also offers two lens options - a wide 2.7mm ~ 13.5mm lens (for wide area surveillance), and a tele 5mm ~ 50mm lens (for telephoto zoom / surveillance from a distance) - offering users a range of surveillance capabilties for an effective and adaptable video security solution.
PTZ Functionality
Allowing for effective surveillance with impressive camera manoeuvres, the IB9391-EHTV-v2 is designed with Pan, Tilt, and Zoom functionality, and, supports Remote focus and Remote zoom.
Pan / Rotation range - ±180° | Tilt range - 90° | Zoom - 48x digital zoom (4x on IE plug-in, 12x built-in)
Image Quality and Performance
IR Illumination - Features built-in IR Illuminators, with Smart IR III (AI powered image enhancement), capable of up to 50m/100m area coverage
Impressive Low Light Performance -
- SNV (Supreme Night Visibility) - Improves image quality in low light environments, so your surveillance system can continue working effectively regardless of the amount of light in a scene
- 120dB WDR (Wide Dynamic Range) Pro - Improve image clarity and detail in challenging lighting conditions, providing visibility in extremely bright and dark environments
Image Settings -
- General settings - Video title / Time stamp overlay, Video orientation (flip, mirror, rotation), Day / Night settings
- Illuminators - Smart IR (target zone), White balance, Image adjustment (brightness, contrast, saturation, sharpness, gamma curve), Defog, 3DNR, LDC, EIS, Scene mode (auto, deblur)
- Exposure settings - BLC, HLC, Exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment
Video Streaming - Adjustable resolution, Quality, constant bit rate control, and, Smart Stream III
AI Analytics, Alarms and Events
Vision Object Analytics - Object detection (people / vehicle (4-wheeled and 2-wheeled), Attribute extraction (people (gender, colour, accessories, etc) / vehicle (type - bike, bus, car, motorcycle, truck, etc - and colour), Re-Search extraction, and, Path extraction
Smart Motion detection - supports 5-window Motion detection, People / Vehicle detection, and, Time filter
Smart VCA - includes; Intrusion detection, Loitering detection, Line-crossing detection, Unattended object detection, Missing object detection, Face detection, Crowd detection, Running detection, Parking violation detection, and, Restricted zone detection
Event Triggers - Audio detection, Camera tampering detection, Cybersecurity events (brute-force attack, cyberattack, and quarantine event), Digital input, Manual trigger, Motion detection, Periodical trigger, Recording notification, SD Card life expectancy, Shock detection, and, System boot
Event Actions - Event notification via Audio clip, Camera link, Digital output, Email, HTTP, FTP/SFTP, NAS server, and SD card. File upload via Email, HTTP, FTP/SFTP, NAS server, and SD card
DORI: Detect, Observe, Recognise, Identify
A camera's DORI distance provides users with a general overview of its capability to distinguish between people and objects found within its field of view.
| DORI | Detect | Observe | Recognise | Identify |
| Definition | 25ppm / 8ppf | 63ppm / 19ppf | 125ppm / 38ppf | 250ppm / 76ppf |
| Distance (Wide / Tele) | 100.1m / 204.5m | 40m / 81.8m | 20m / 40.9m | 10m / 20.4m |
Packing Contents:
- Quick Installation guide
- Product labels
- Alignment sticker
- L-shaped wrench
- Screw pack
- Waterproof accessory pack
- Sunshield
- I/O cable
- Adaptor plate
- Conduit bracket

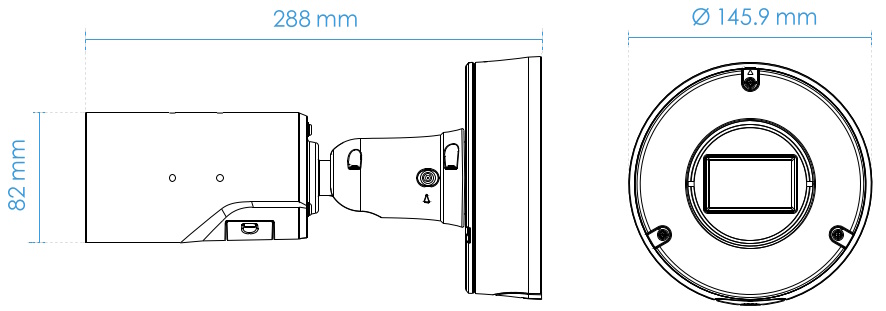

Dimensions:
